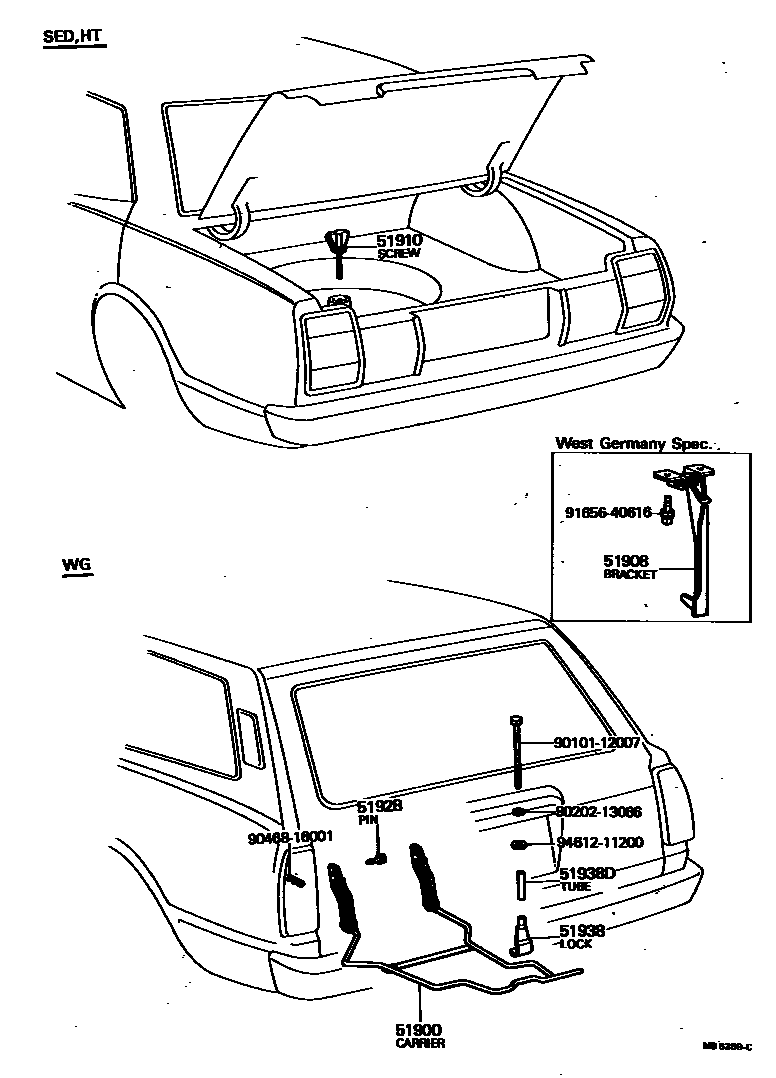

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-91608iRX35..3H..GEN;MX36,RX35..3FC,4F,5F197612-198008

main51900-91610iRX35..LHD..EUG197704-198008

185SR-14

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-91600iRX35..LHD..EUG197702-198008

WEST GERMANY SPEC.

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-14040iMX32,RX30,TX30197901-198008

main51910-22020iMX32,RX30197612-197901

51928PIN, SPARE WHEEL CARRIER

main90240-08008×2iMX36,RX35197612-198008

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iMX36,RX35197612-198008

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-16003iMX36,RX35197612-198008

9010112007

main90101-12007

9020213066

main90202-13066

9046816001

main90468-16001

9165640616

main91656-40616

9461211200

main94612-11200

11 parts on this diagram · 1 diagram in section
