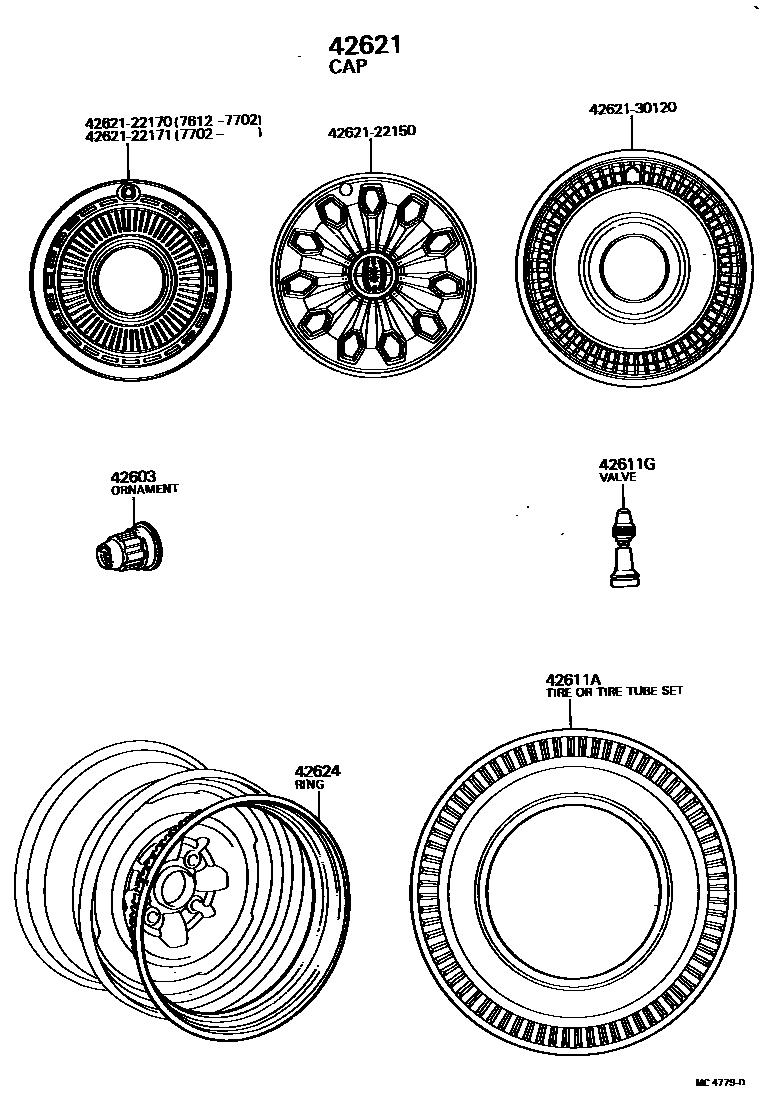

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050×4iMX3#,RX3#..ARL,EUR,GEN197612-197808

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-22140×4iRX30..GEN197612-197808

6.45-14-4,W/TUBE

main42605-23060×4iRX35..GEN197808-198008

6.45-14-6,W/TUBE

main42605-31010×4iRX35..3H..EUG197704-197808

185SR14,W/TUBE

main42652-14100×5iMX3#..ARL197612-198005

175SR14,TUBELESS

main42652-14110×4iTX30198001-198008

165SR14

main42652-20130×5iMX3#198005-198008

175SR14,TUBELESS

main42652-22180×4iRX30..(DLX,STD)..GEN197808-198008

6.45-14-4,TUBELESS

main42652-22240×4iMX32,RX3#..EUR,SA197808-198008

175SR14,STEEL&TUBELESS

main42652-23060×4iRX35..GEN,SA197612-197808

6.45-14-6,TUBELESS

main42652-30040×4iRX3#..LHD..(DLX,STD)..EUR197808-198008

185SR STEEL,AUSTRIA SPEC.

main98038-69140×4iRX3#..GEN197612-198008

175SR14,W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMX3#,RX3#,TX30197612-198008

42621CAP, WHEEL

main42621-22150×4iRX3#..STD..SA197707-197811

main42621-22170×4iRX3#..DLX197612-197702

main42621-22171×4iMX32..SA197707-197808

main42621-30120×4iMX32,RX30..GL,SDX197808-198008

42624RING, WHEEL CAP

main42624-14030×4iRX3#..DLX..SA197808-198008

4262122150CAP, WHEEL

main42621-22150

4262122170CAP, WHEEL

main42621-22170

4262122171CAP, WHEEL

main42621-22171

4262130120CAP, WHEEL

main42621-30120

9 parts on this diagram · 2 diagrams in section
