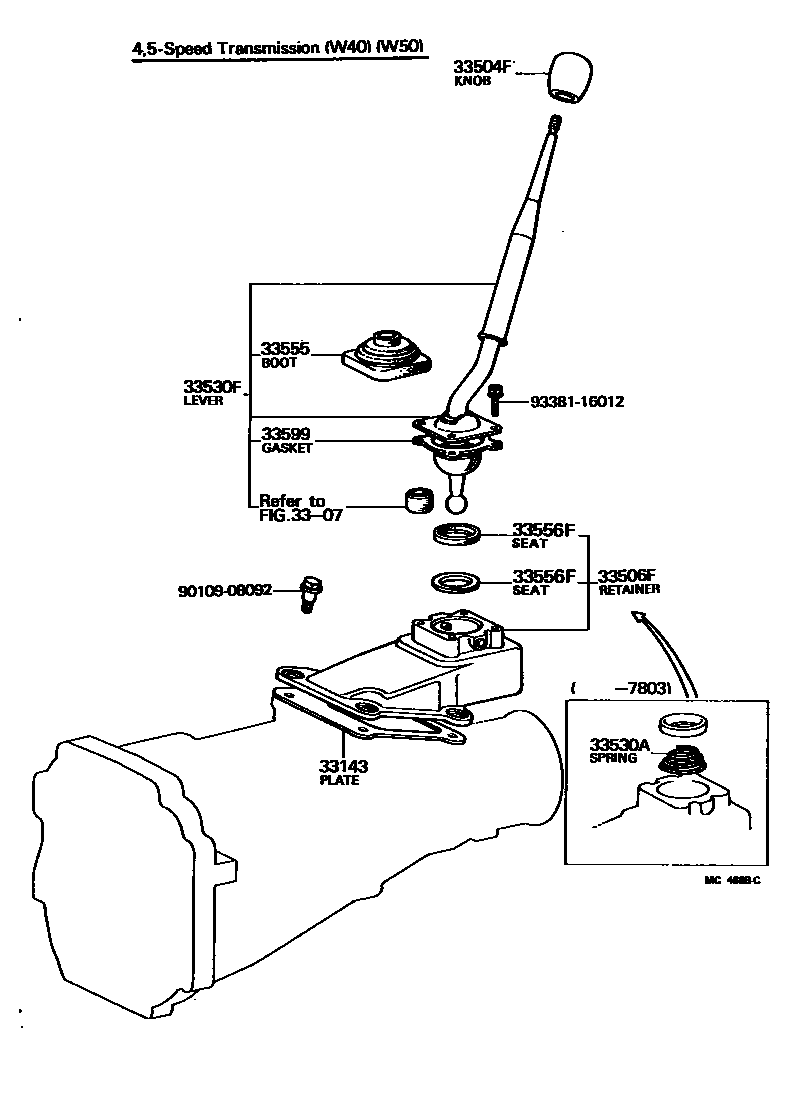

SHIFT LEVER & RETAINER

0001 1 0002 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iMX3#,RX3#,TX30..4F,5F197612-198008

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iRX30..5F..GL197808-198008

BLACK,URETHANE,BLACK

main33504-20052-02iRX30..5F..GL197808-198008

DARK WINE,URETHANE,RED/MAROON

main33504-20052-06iRX30..5F..GL197808-198008

BROWN,URETHANE,BROWN

main33504-20062-01iRX30..4F..GL197808-198008

BLACK,URETHANE,BLACK

main33504-20062-02iRX30..4F..GL197808-198008

DARK WINE,URETHANE,RED/MAROON

main33504-20062-05iRX30..4F..GL197808-198008

BEIGE,URETHANE,BEIGE

main33504-22100iRX3#..4F..STD197612-197808

BLACK

main33504-22100-01iRX3#,TX30..4F..STD197808-198008

BLACK,BLACK

main33504-22100-02iRX3#,TX30..4F..STD197808-198008

DARK WINE,RED/MAROON

main33504-22100-05iRX3#,TX30..4F..STD197808-198008

BEIGE,BEIGE

main33504-22120iMX3#,RX3#..4F..DLX197612-198008

URETHANE,WOODY

main33504-22130iRX3#..5F..DLX197808-198008

URETHANE,WOODY

main33542-22120iMX3#,RX3#..3FC..DLX197808-198008

WOODY

main33542-22130iMX3#,RX3#..3FC..DLX197612-197803

BROWN,WOODY

main33542-22140iMX32..SA197808-198001

CAST WOOD

main33542-30120-01iRX30..3FC..STD197707-197808

BLACK,BLACK

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-21010iMX3#,RX3#..4F,5F197612-198008

main33570-22040iTX30..4F198001-198008

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-18057iMX3#,RX3#..4F,5F197612-197803

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-22130iMX3#,RX3#,TX30..RHD..3FC197612-198008

main33503-22140iRX3#..LHD..3FC197612-197708

main33503-22141iRX3#..LHD..3FC197708-198008

main33503-22150iMX32..SA197808-198001

main33530-22121iRX30..RHD..5F197808-198008

main33530-22130iRX3#..5F197612-197701

main33530-22131iRX3#..5F..EUG197701-198008

main33530-22140iMX3#,RX3#..RHD..4F197612-198008

main33530-22150iRX3#..LHD..4F197612-198008

main33530-22160iTX30..4F198001-198008

33555BOOT, SHIFT LEVER

main33555-22030iMX3#,RX3#,TX30..RHD..3FC197708-198008

main33555-22040iRX3#..LHD..3FC197708-198008

main33555-31011iMX3#,RX3#,TX30..4F,5F197612-198008

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20010iMX3#,RX3#,TX30..4F,5F197803-198008

T=3.0

main33556-22010iMX3#,RX3#,TX30..4F,5F197612-198008

T=6.5

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-31020iMX3#,RX3#,TX30..4F,5F197612-198008

9010908092

main90109-08092

9338116012

main93381-16012

11 parts on this diagram · 2 diagrams in section
