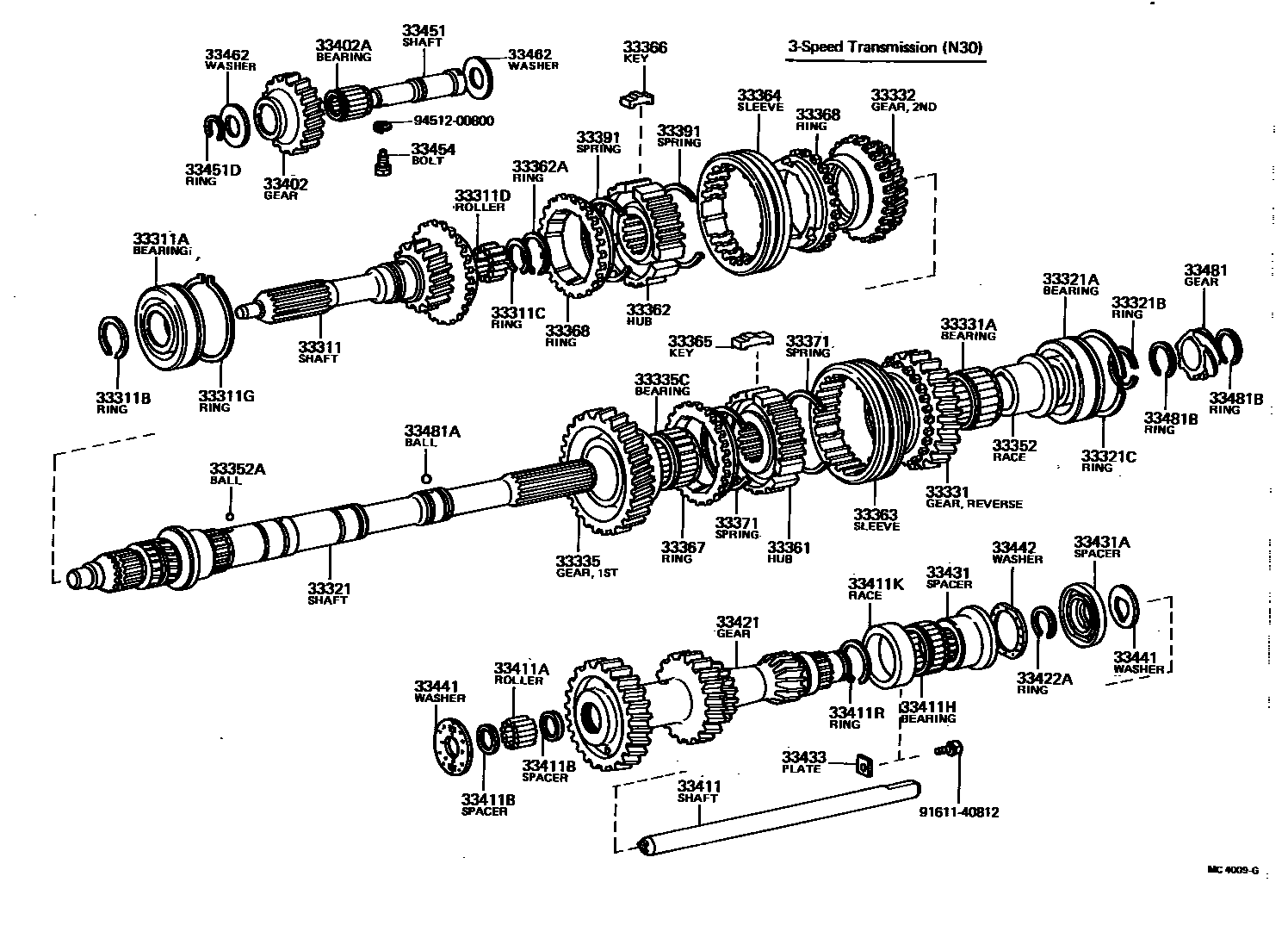

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411BSPACER(FOR COUNTER GEAR BEARING)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411KRACE, COUNTER BEARING OUTER(FOR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33421GEAR, COUNTER
33422ARING, SHAFT SNAP (FOR COUNTERSHAFT GEAR)
33431ASPACER, COUNTER GEAR, NO.2
33433PLATE, COUNTER GEAR REAR BEARING LOCK
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
33451SHAFT, REVERSE IDLER GEAR
33451DRING, SHAFT SNAP (FOR REVERSE IDLER GEAR SHAFT)
33454BOLT, SHAFT RETAINING
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161140812
main91611-40812
9451200800
main94512-00800
52 parts on this diagram · 3 diagrams in section
