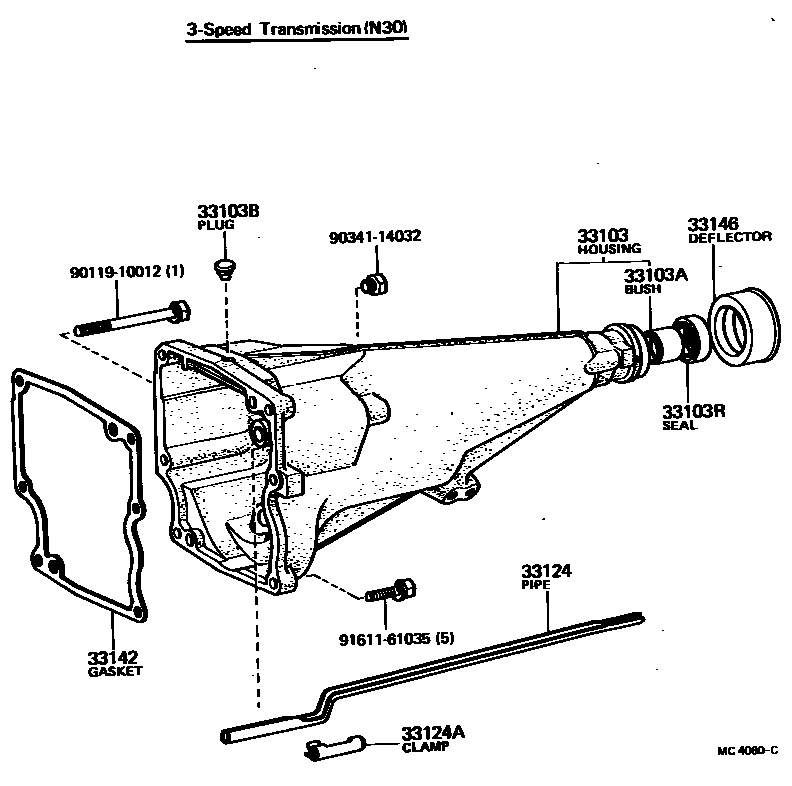

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iMX3#,RX3#,TX30..4F197612-198008

main33103-20100iRX3#..5F197612-198008

main33103-30150iRX3#..3H197612-198008

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iMX3#,RX3#,TX30..4F197612-198008

main90999-73062iRX3#..5F197612-198008

main90999-73077iRX3#..3H197612-198008

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iRX3#..3H197612-198008

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38140iRX3#..3H197612-198008

33124PIPE, OIL RECEIVER(MTM)

main33124-30040iRX3#..RHD..3H197612-198008

main33124-30050iRX3#..LHD..3H197612-198008

33124ACLAMP(FOR TRANSMISSION OIL RECEIVER PIPE)

main90463-08036iRX3#..RHD..3H197612-198008

main90463-08037iRX3#..LHD..3H197612-198008

33142GASKET, EXTENSION HOUSING(MTM)

main33142-20020iRX3#..5F197612-198008

main33142-30040iRX3#..3H197612-198008

main33142-31010iMX3#,RX3#,TX30..4F197612-198008

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iMX3#,RX3#,TX30..MTM197612-198008

9011910012

main90119-10012

9034114032

main90341-14032

9161161035

main91611-61035

11 parts on this diagram · 3 diagrams in section
