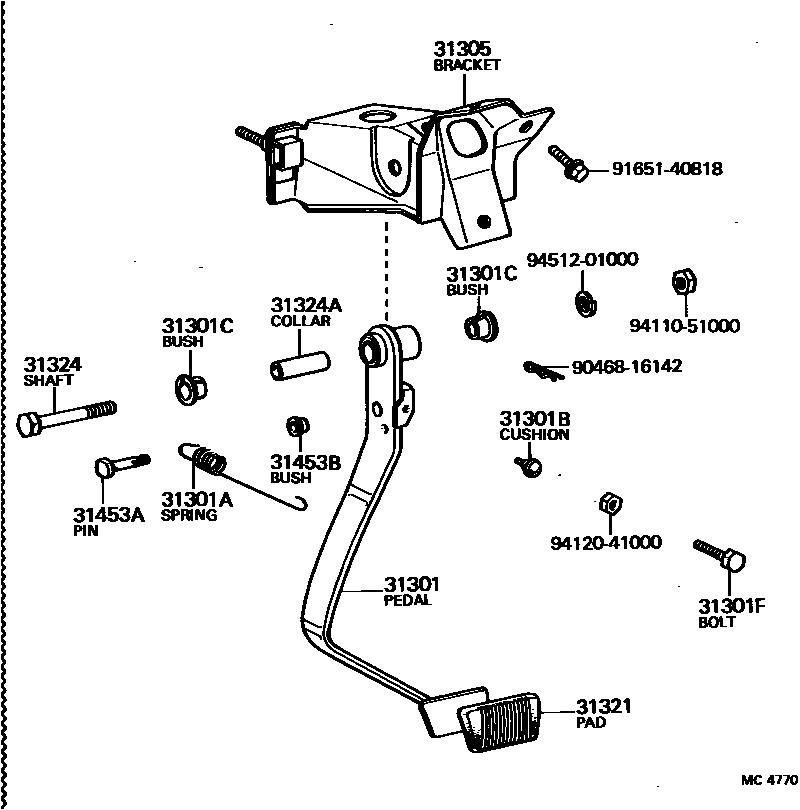

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-22060iMX3#,RX3#,TX30..RHD..MTM197612-198008

main31301-22070iRX3#..LHD..MTM197612-198008

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14008iMX3#,RX3#,TX30..RHD..MTM197612-198008

main90506-14011iRX3#..LHD..MTM197612-198008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iMX3#,RX3#,TX30..MTM197612-198008

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iMX3#,RX3#,TX30..MTM197612-198008

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iMX3#,RX3#,TX30..MTM197612-198008

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-22020iMX3#,RX3#,TX30..RHD..MTM197612-198008

main55107-22030iRX3#..LHD..MTM197612-198008

31321PAD, CLUTCH PEDAL

main31321-20020iMX3#,RX3#,TX30..MTM197612-198008

31324SHAFT, CLUTCH PEDAL

main90101-10039iMX3#,RX3#,TX30..MTM197612-198008

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMX3#,RX3#,TX30..MTM197612-198008

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iMX3#,RX3#,TX30..MTM197612-198008

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iMX3#,RX3#,TX30..MTM197612-198008

9046816142

main90468-16142

9165140818

main91651-40818

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
