FUEL PUMP & PIPE

0001 1 0002 1 0004 1 0006 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

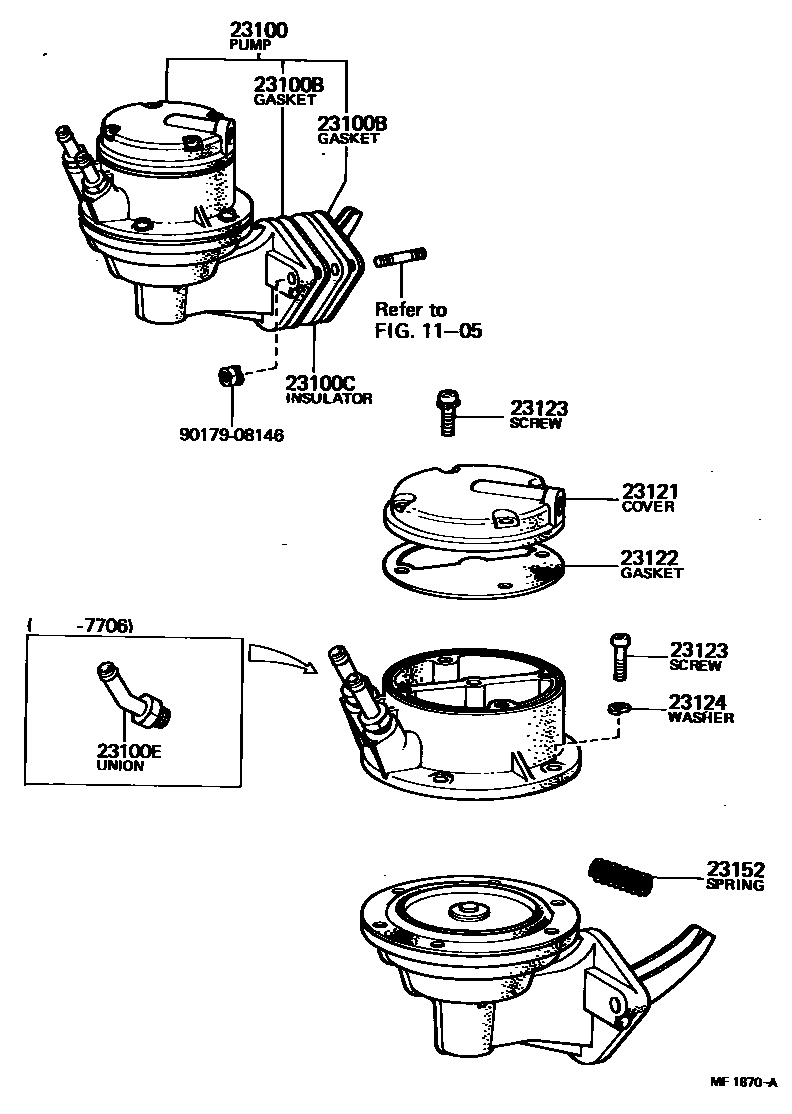

23100PUMP ASSY, FUEL

main23100-19115i3T..TX30..3FC198001-198008

main23100-29305i3T..TX30..4F198001-198008

main23100-39117i18R#..RX3#..EUR,GEN197907-197908

main23100-39295i18R..RX3#..SA197907-197908

main23100-49166i4M..MX3#197612-197706

main23100-49167i4M..MX32..SA197908-198001

main23100-49225i4M..MX3#..ARL197908-198008

23100BGASKET, FUEL PUMP

main90923-05004×2i4M..MX3#197612-198008

main90923-05005×2i18R#..RX3#; 3T..TX30197612-198008

23100CINSULATOR, FUEL PUMP

main90923-06001i18R#..RX3#; 3T..TX30197612-198008

main90923-06002i4M..MX3#197612-198008

23100EUNION, NIPPLE(FOR FUEL INLET)

main23119-42020i4M..MX3#197612-197706

main23119-45020i18R#..RX3#197612-197907

23121COVER, FUEL PUMP

main23121-34050i18R#..RX3#197612-197907

main23121-45030i4M..MX3#197612-198008

23122GASKET, FUEL PUMP COVER

main23122-34050i18R#..RX3#197612-197907

main23122-42020i4M..MX3#197612-198008

23123SCREW, COVER SET, NO.1

main21821-31140×4i4M..MX3#197612-198008

COVER SET

main93219-15014×10i18R#..RX3#..EUR,GEN197907-197908

main93219-15016×6i4M..MX3#197612-198008

BODY SET

23124WASHER, COVER SET, NO.2

main94511-00500×10i18R#..RX3#; 4M..MX3#197612-197907

23152SPRING, ROCKER ARM

main23152-42012i18R#..RX3#197612-197907

main23152-45030i4M..MX3#197612-198008

9017908146

main90179-08146

11 parts on this diagram · 4 diagrams in section
