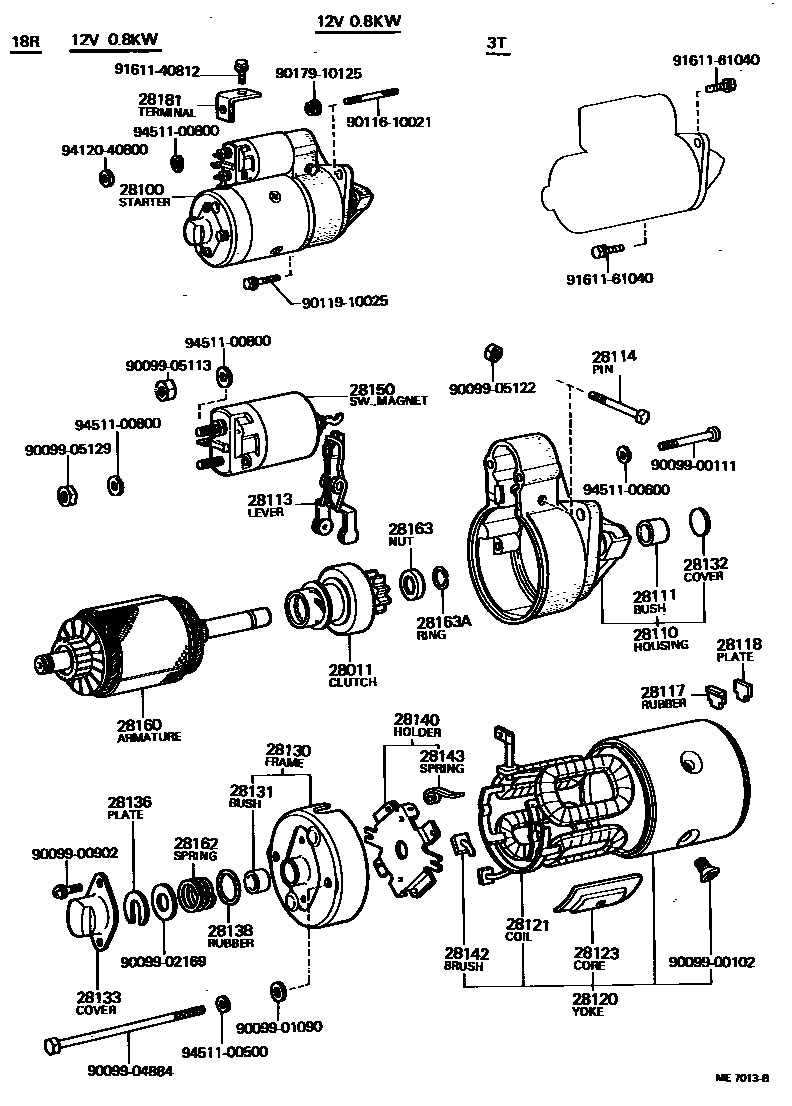

STARTER

0001 1 0003 1 0004 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28011-22020i3T..TX30198001-198008

main28011-41011i18R..RX3#197612-197808

12V 0.8KW

main28011-41020i4M..MX3#197612-198008

12V 1.0KW

28100STARTER ASSY

main28100-26080i3T..TX30198001-198008

12V 0.8KW

sub28100-26142

main28100-33020i18R#..RX3#..EUR,GEN197612-197905

12V 1.0KW

main28100-34070i18R#..RX3#..EUR,GEN197905-198008

12V 1.0KW,12V 1.0KW

sub28100-40061

main28100-36070i18R..RX3#197612-197808

12V 0.8KW

main28100-37010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW,12V 0.8KW

sub28100-37011

main28100-42020i4M..MX3#197612-197905

12V 1.0KW

main28100-42021i4M..MX3#197905-198008

12V 1.0KW

sub28100-42070

28110HOUSING ASSY, STARTER DRIVE

main28110-25011i3T..TX30198001-198008

main28110-37010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28110-40045i18R..RX3#..GEN,SA197808-197909

12V 0.8KW

main28110-40061i18R#..RX3#..EUR,GEN197612-198008

12V 1.0KW

main28110-41021i4M..MX3#197612-198008

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4M..MX3#197909-198008

12V 1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28113-25010i3T..TX30198001-198008

main28113-41011i4M..MX3#197909-198008

12V 1.0KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3T..TX30198001-198008

main28114-41011i4M..MX3#197909-198008

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-25010i3T..TX30198001-198008

sub28117-25011

sub28118-25011

main28117-41013i18R..RX3#197612-197808

12V 0.8KW

main28117-41020i4M..MX3#197612-198008

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i3T..TX30198001-198008

main28118-41013i18R..RX3#197612-197808

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28120-25011i3T..TX30198001-198008

main28120-33022i18R#..RX3#..EUR,GEN197612-197905

12V 1.0KW

main28120-34070i18R#..RX3#..EUR,GEN197905-198008

12V 1.0KW

main28120-36040i18R..RX3#..GEN,SA197808-197909

12V 0.8KW

main28120-41021i4M..MX3#197612-197905

main28120-42020i4M..MX3#197905-198008

28121COIL, STARTER FIELD

main28121-25010i3T..TX30198001-198008

main28121-34070i4M..MX3#197905-198004

12V 1.0KW

main28121-36040i18R..RX3#197612-197808

12V 0.8KW

main28121-41020i4M..MX3#197612-197905

12V 1.0KW

main28121-42020i4M..MX3#198004-198008

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i18R..RX3#..GEN,SA197808-197909

12V 0.8KW

main28123-41020×4i4M..MX3#197612-198008

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i3T..TX30198001-198008

main28130-37010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28130-41020i4M..MX3#197612-198008

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i4M..MX3#197909-198008

STD 12V 1.0KW

main90099-10039i4M..MX3#197909-198008

U/S 0.3 12V 1.0KW

main90099-10040i3T..TX30198001-198008

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i4M..MX3#197909-198008

12V 1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

sub28132-15011

main28132-40010i4M..MX3#197612-198008

12V 1.0KW

main28132-41011i18R..RX3#197612-197808

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28136-40010i4M..MX3#197612-198008

12V 1.0KW

main28136-41011i18R..RX3#197612-197808

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28138-40010i4M..MX3#197612-198008

12V 1.0KW

sub28138-26030

main28138-41011i18R..RX3#..GEN,SA197808-197909

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28140-25011i3T..TX30198001-198008

main28140-25020i18R#..RX3#..EUR,GEN197612-198008

12V 1.0KW

main28140-41012i18R..RX3#..GEN,SA197808-197909

12V 0.8KW

sub28140-41013

main28140-41020i4M..MX3#197612-198008

28142BRUSH, STARTER

main28142-10011×4i4M..MX3#197612-197905

main28142-21010×4i18R..RX3#197612-197808

12V 0.8KW

main28142-25010×2i3T..TX30198001-198008

main28142-25011×2i18R#..RX3#..EUR,GEN197612-198008

FOR HOLDER 12V 1.0KW

main28142-25020×2i18R#..RX3#..EUR,GEN197612-198008

FOR YOKE 12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4i18R#,4M..MX3#,RX3#197612-197905

main28143-40040×4i18R#,4M..MX3#,RX3#197905-197909

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

sub28150-37010

main28150-22011i18R..RX3#..GEN,SA197808-197906

12V 0.8KW

main28150-25010i3T..TX30198001-198008

sub28150-25030

main28150-33020i18R#..RX3#..EUR,GEN197804-197906

12V 1.0KW

main28150-33021i18R..RX3#..GEN197906-197909

12V 0.8 & 1.0KW

main28150-34070i18R#..RX3#..EUR,GEN197909-198008

12V 1.0KW

main28150-41011i4M..MX3#197612-197807

main28150-60040i4M..MX3#197807-198008

28160ARMATURE ASSY, STARTER

main28160-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28160-22021i3T..TX30198001-198008

main28160-40014i18R..RX3#197612-197808

12V 0.8KW

main28160-41020i4M..MX3#197612-198008

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-15010i18R..RX3#..GEN,SA197909-198008

12V 0.8KW

main28162-41011i18R..RX3#197612-197808

12V 0.8KW

main28162-41022i4M..MX3#197612-198008

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i18R#,4M,3T..MX3#,RX3#,TX30197612-198008

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i18R#,4M,3T..MX3#,RX3#,TX30197612-198008

28181TERMINAL, STARTER

main28181-20010i18R#..RX3#197612-197908

sub28181-20011

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009905113

main90099-05113

9009905122

main90099-05122

9009905129

main90099-05129

9011610021

main90116-10021

9011910025

main90119-10025

9017910125

main90179-10125

9161140812

main91611-40812

9161161040

main91611-61040

9412040800

main94120-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

44 parts on this diagram · 3 diagrams in section
