Toyota 311230 — IGNITION COIL & SPARK PLUG / GLOW PLUG
19100MPLUG KIT, SPARK
19100PPLUG, SPARK
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19901FCORD, SPARK PLUG RESISTIVE, NO.5
19901GCORD, SPARK PLUG RESISTIVE, NO.6
19942CLAMP, RESISTIVE CORD, NO.2
19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19949CLAMP, RESISTIVE CORD, NO.5
9017904092
9161140812
9165640616
22 parts on this diagram · 3 diagrams in section

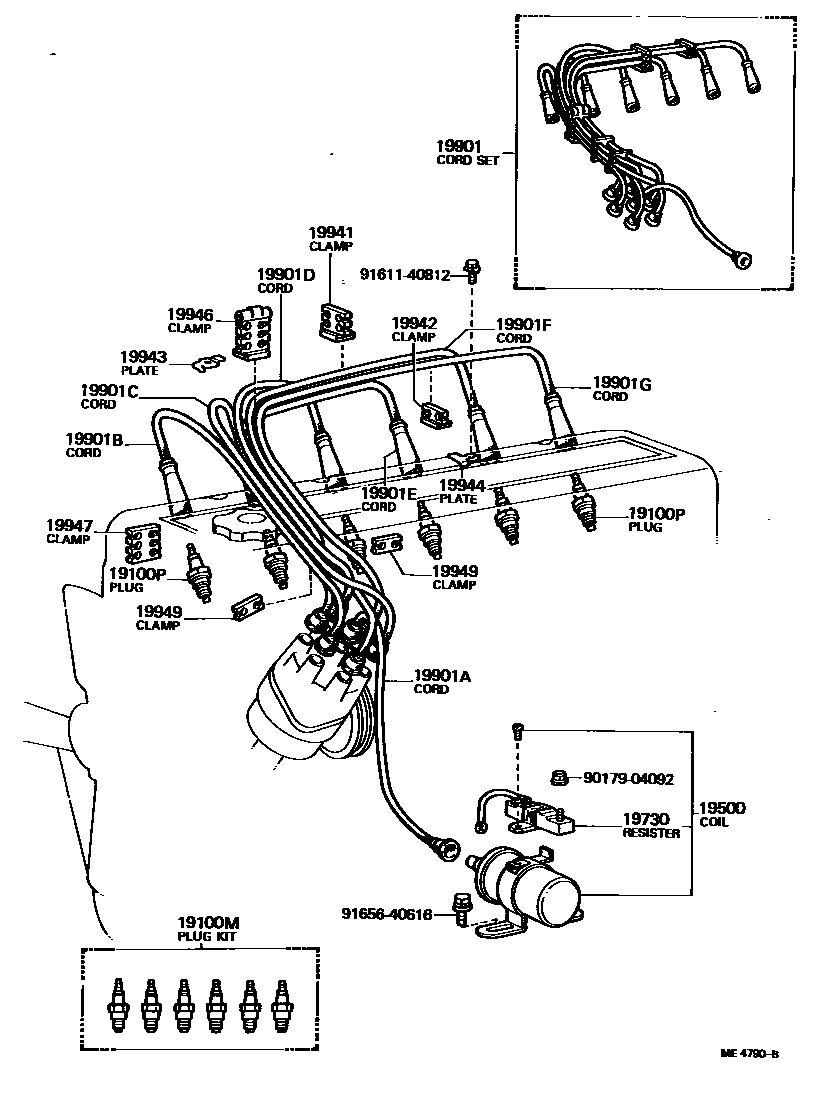

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota 311230
This section contains 27 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota 311230. Key components include: PLUG KIT, SPARK, PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE.
