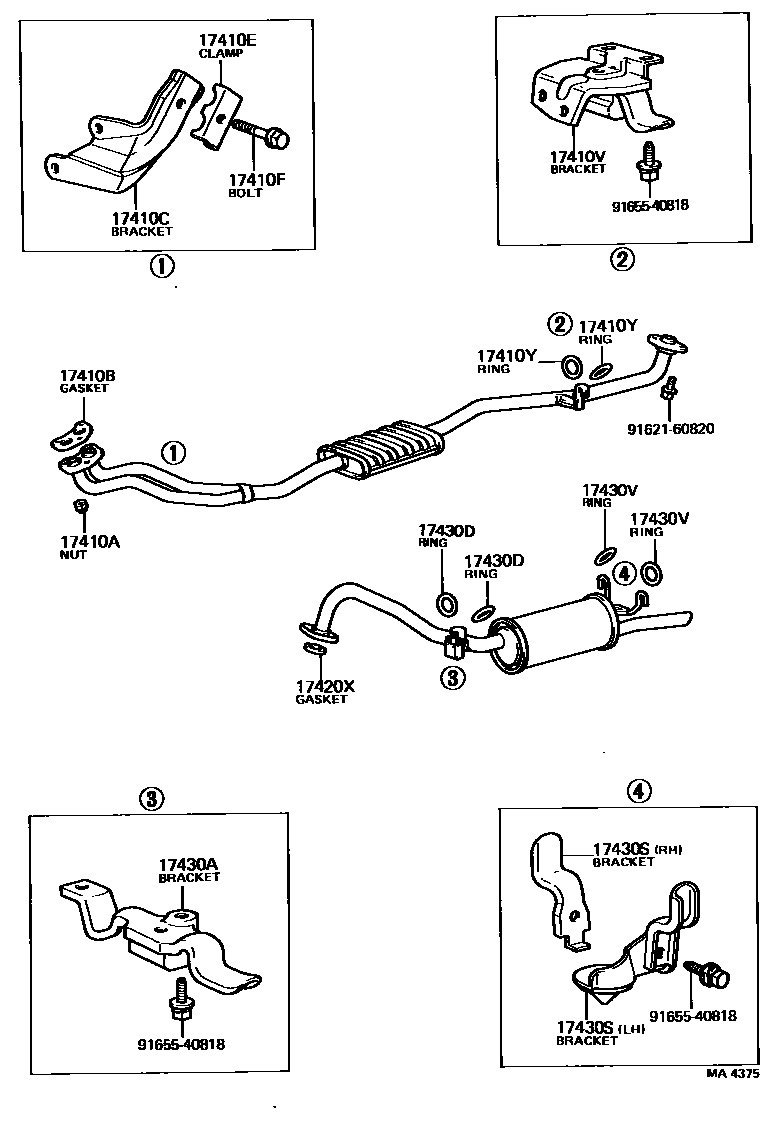

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-34250i18R#..RX3#197612-197908

main17410-34251i18R#..RX3#197908-198008

main17410-45090i4M..MX3#197612-197704

main17410-45091i4M..MX3#..ARL197704-197805

main17410-45092i4M..MX3#..ARL197805-197908

main17410-45190i4M..MX3#..ARL197908-198008

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10028×3i18R#,4M,3T..MX3#,RX3#,TX30197811-198008

main90179-10118×3i18R#,4M..MX3#,RX3#197612-197811

17410BGASKET, EXHAUST PIPE

main17451-41020i18R#,3T..RX3#,TX30197612-198008

main90917-06013i4M..MX3#197612-197908

main90917-06022i4M..MX3#..ARL197908-198008

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-26121i3T..TX30198001-198008

main17571-34031i18R#..RX3#197612-198008

main17571-41060i4M..MX3#197612-197704

main17571-41061i4M..MX3#..ARL197704-197908

main17571-45040i4M..MX3#..ARL197908-198008

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i3T..TX30198001-198008

main90917-04031i4M..MX3#..ARL197908-198008

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90117-08002i4M..MX3#..ARL197908-198008

main91511-61070i3T..TX30198001-198008

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17506-34030i18R#..RX3#197612-197808

main17506-38060i4M..MX32..SA197808-197912

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-34207×2i4M..MX32..SA197707-197912

17420PIPE ASSY, EXHAUST, CENTER

main17420-45090i4M..MX3#..ARL197612-197908

main17420-45091i4M..MX3#..ARL197908-198008

17420XGASKET, EXHAUST PIPE, CENTER

main17451-45010i4M..MX3#..ARL197612-198008

FRONT

main90917-06004i18R#,4M,3T..MX3#,RX3#,TX30197612-198008

17430PIPE ASSY, EXHAUST, TAIL

main17430-34320i4M..MX32..SA197707-197912

main17430-34321i18R..RX30..GEN,SA197908-198008

main17430-36050i18R..RX35..GEN,SA197612-197908

main17430-36051i18R..RX35..GEN,SA197908-198008

main17430-45100i18R#..RX30..EUR; 4M..MX32..ARL197612-197908

main17430-45101i18R#..RX30..EUR; 4M..MX32..ARL197908-198008

main17430-45110i18R#..RX35..EUR; 4M..MX36197612-197908

main17430-45111i18R..RX35..EUG; 4M..MX36197908-198008

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17507-34020i18R#,4M,3T..MX32,RX30,TX30197612-198008

main17507-36030i18R#,4M..MX36,RX35197612-198008

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207×2i18R#,4M,3T..MX3#,RX3#,TX30197612-198008

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-34020i18R#,4M..MX32,RX30197612-197803

LH

main17508-34021i18R#,4M,3T..MX32,RX30,TX30197803-198008

LH

main17576-34020i18R#,4M..MX32,RX30197612-197803

RH

main17576-34021i18R#,4M,3T..MX32,RX30,TX30197803-198008

RH

main17576-36030i18R#,4M..MX36,RX35197612-198008

LH

main17577-36010i18R#,4M..MX36,RX35197612-198008

RH

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207×2i18R#,4M..MX36,RX35197612-198008

main90301-36001×2i18R#,4M,3T..MX32,RX30,TX30197612-198008

9162160820

main91621-60820

9165540818

main91655-40818

17 parts on this diagram · 7 diagrams in section
