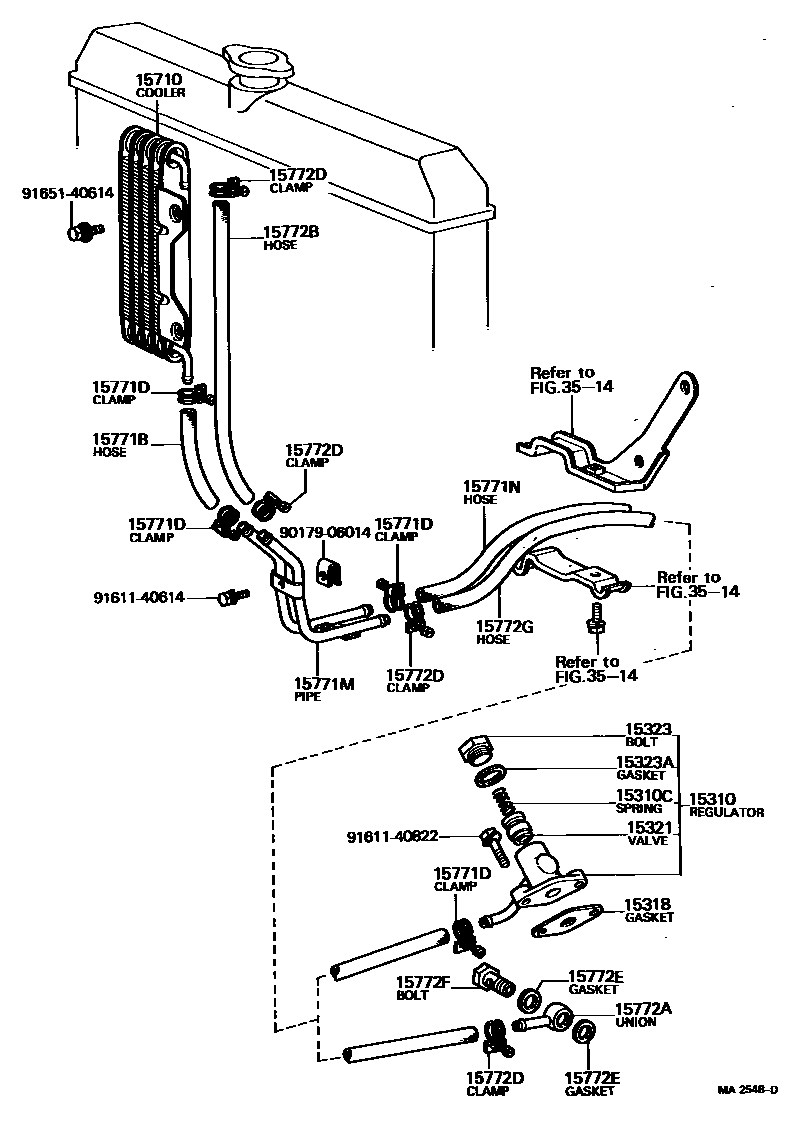

ENGINE OIL COOLER
15310REGULATOR ASSY, OIL PRESSURE
15310CSPRING, OIL PRESSURE REGULATOR
15318GASKET, OIL PRESSURE REGULATOR BODY
15321VALVE, OIL ADJUSTING
15323BOLT, OIL PRESSURE ADJUSTING
15323AGASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15710COOLER ASSY, OIL
15771BHOSE, OIL, NO.1(FOR OIL PIPE)
15771DCLAMP, OIL COOLER HOSE
15771MPIPE, OIL
15771NHOSE, OIL, NO.2(FOR OIL PIPE)
15772AUNION(FOR OIL PIPE)
15772BHOSE, OIL, NO.1(FOR OIL PIPE)
15772DCLAMP OR CLIP, OIL COOLER HOSE
15772EGASKET(FOR OIL PIPE)
15772FBOLT, UNION(FOR OIL PIPE)
15772GHOSE, OIL, NO.2 (FOR OIL PIPE)
3514OIL COOLER & TUBE (ATM)
9017906014
main90179-06014
9161140614
main91611-40614
9161140822
main91611-40822
9165140614
main91651-40614
22 parts on this diagram · 1 diagram in section
