ENGINE OVERHAUL GASKET KIT

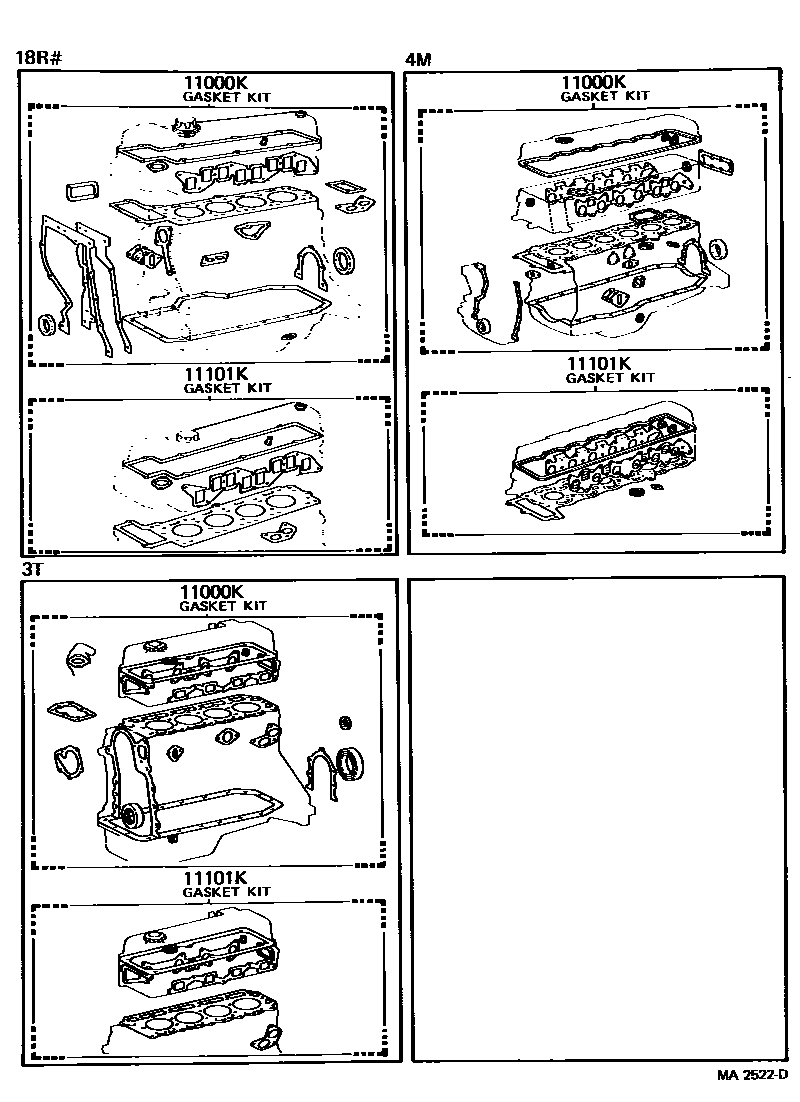

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-28013i198001-198008

main04111-34061i197707-197708

main04111-34062i197808-198008

main04111-34080i197708-197712

main04111-34090i197808-198008

main04111-36012i197612-197708

main04111-45031i197612-197707

main04111-45032i197707-197708

main04111-45033i197708-197803

main04111-45034i197803-198008

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-28013i198001-198008

main04112-34051i197707-197708

main04112-34060i197708-198008

main04112-36010i197612-197708

main04112-45031i197612-197708

main04112-45032i197708-197803

main04112-45033i197803-198008

2 parts on this diagram · 1 diagram in section
