SHORT BLOCK ASSEMBLY

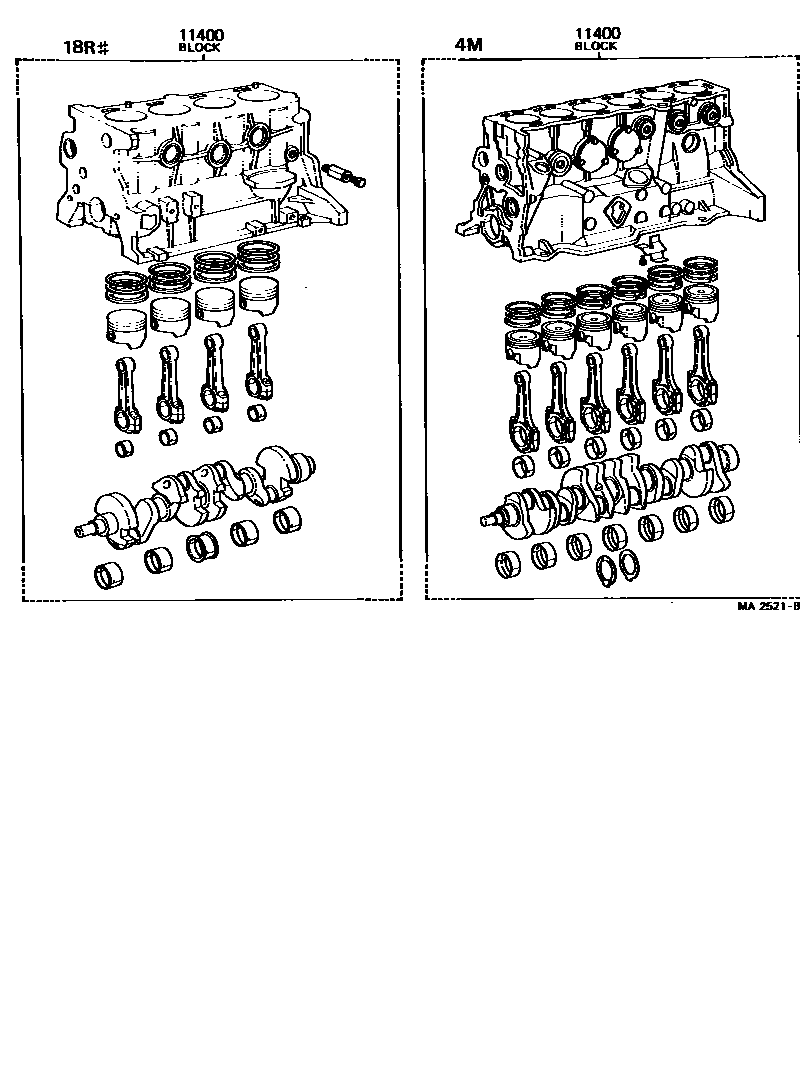

Parts diagram

11400BLOCK ASSY, SHORT

main11400-34042i197612-197701

main11400-34043i197701-198008

main11400-45021i197612-197809

main11400-45022i197809-197908

main11400-45023i197908-198008

1 parts on this diagram · 1 diagram in section
