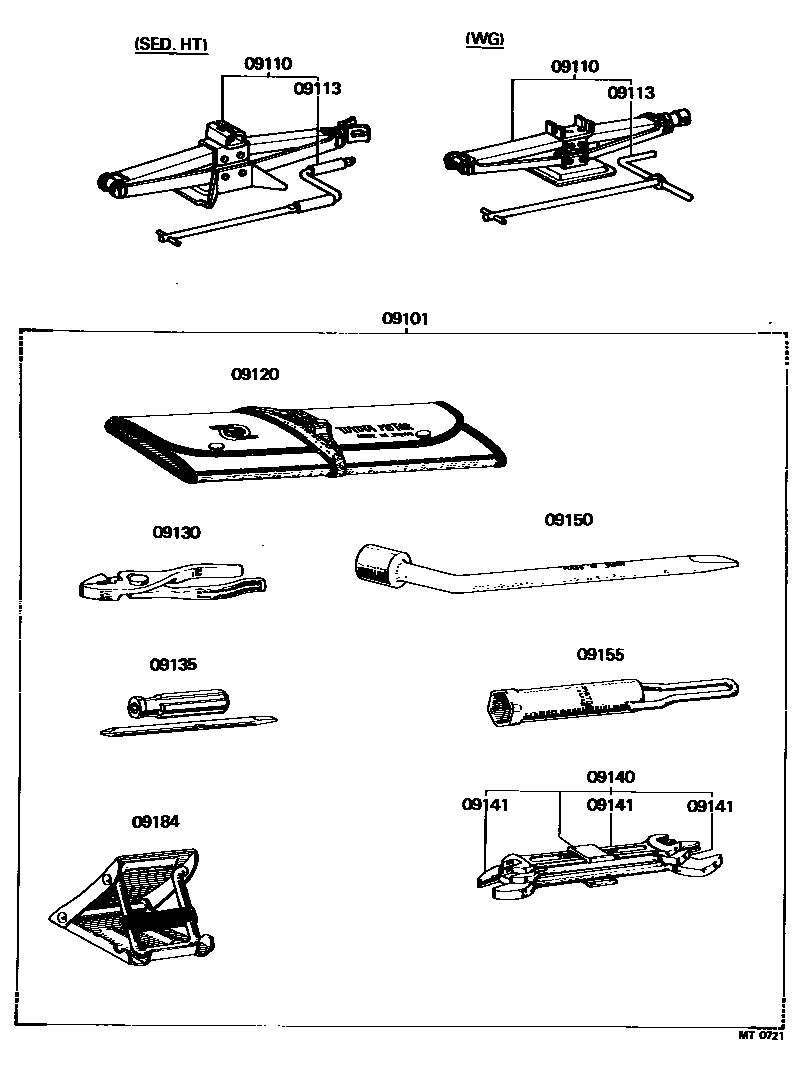

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-30020iMX3#,RX3#197612-198008

09110JACK ASSY

main09110-22020iMX32,RX30197612-198008

main09110-23021iMX36,RX35197612-198008

09113HANDLE, JACK

main09113-22010iMX32,RX30197612-198008

main09113-23021iMX36,RX35197612-198008

09120BAG, TOOL

main09120-20020iMX3#,RX3#197612-198008

09130PLIERS

main09130-00011iMX3#,RX3#197612-198008

09135DRIVER, SCREW

main09135-00010iMX3#,RX3#197612-198008

(+),(-)

09140SPANNER SET

main09140-00013iMX3#,RX3#197612-198008

09141SPANNER

main09141-00011iMX3#,RX3#197612-198008

8X10

main09141-00030iMX3#,RX3#197612-198008

10X12

main09141-00050iMX3#,RX3#197612-198008

14X17

09150WRENCH, HUB NUT BOX

main09150-30011iMX3#,RX3#197612-198008

09155WRENCH, SPARK PLUG

main09155-22010iMX3#,RX3#197612-198008

09184STOPPER, WHEEL

main09184-00010iMX3#,RX3#197612-198008

11 parts on this diagram · 1 diagram in section
