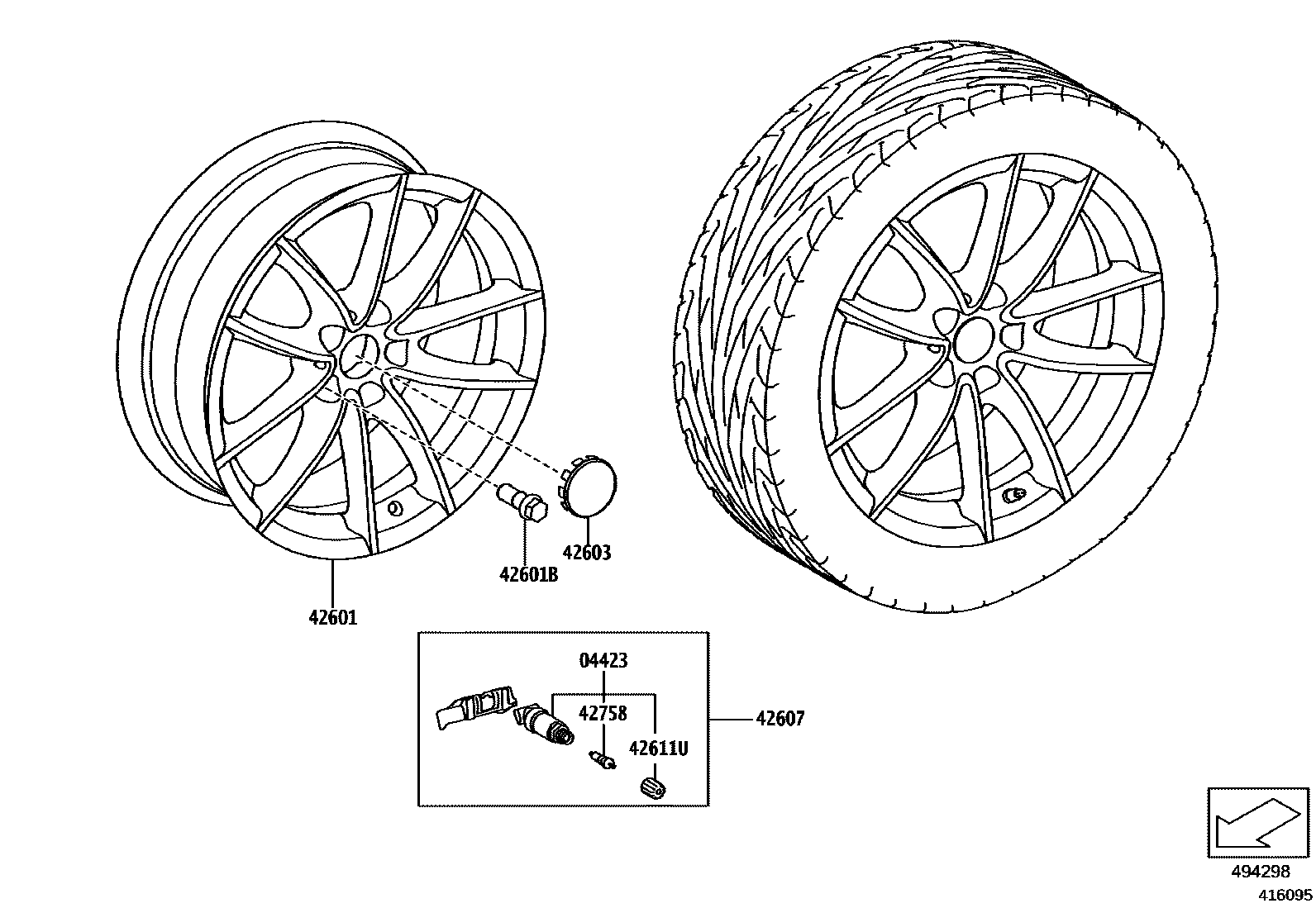

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH; TIRE & DISC WHEEL-19 INCH
42601WHEEL, DISC
18X9J,TIRE & DISC WHEEL-18 INCH,FOR WINTER TIRE; 18X9J,TIRE & DISC WHEEL-18 INCH,SUMMER TIRE,FRONT
18X10J,TIRE & DISC WHEEL-18 INCH,SUMMER TIRE,REAR
17X7.5J,TIRE & DISC WHEEL-17 INCH,FOR WINTER TIRE; 17X7.5J,TIRE & DISC WHEEL-17 INCH,SUMMER TIRE,FRONT
17X8.5J,TIRE & DISC WHEEL-17 INCH,SUMMER TIRE,REAR
19X9J,TIRE & DISC WHEEL-19 INCH,FRONT
19X10J,TIRE & DISC WHEEL-19 INCH,REAR
19X9J,TIRE & DISC WHEEL- 19 INCH(MATTE BLACK),FRONT
19X10J,TIRE & DISC WHEEL- 19 INCH(MATTE BLACK),REAR
42601BBOLT, HUB (FOR AXLE)
TIRE & DISC WHEEL- 19 INCH(MATTE BLACK); TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH
42603ORNAMENT SUB-ASSY, WHEEL HUB
TIRE & DISC WHEEL- 19 INCH(MATTE BLACK); TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
RADIO FREQUENCY(315MHZ)&TIRE & DISC WHEEL- 19 INCH(MATTE BLACK); RADIO FREQUENCY(315MHZ)&TIRE & DISC WHEEL-17 INCH; RADIO FREQUENCY(315MHZ)&TIRE & DISC WHEEL-18 INCH
TIRE & DISC WHEEL- 19 INCH(MATTE BLACK); TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH; TIRE & DISC WHEEL-19 INCH
42611UCAP, TIRE VALVE
TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH; TIRE & DISC WHEEL-19 INCH
42758VALVE, TIRE AIR CONTROL
TIRE & DISC WHEEL-17 INCH; TIRE & DISC WHEEL-18 INCH; TIRE & DISC WHEEL-19 INCH
7 parts on this diagram · 6 diagrams in section
