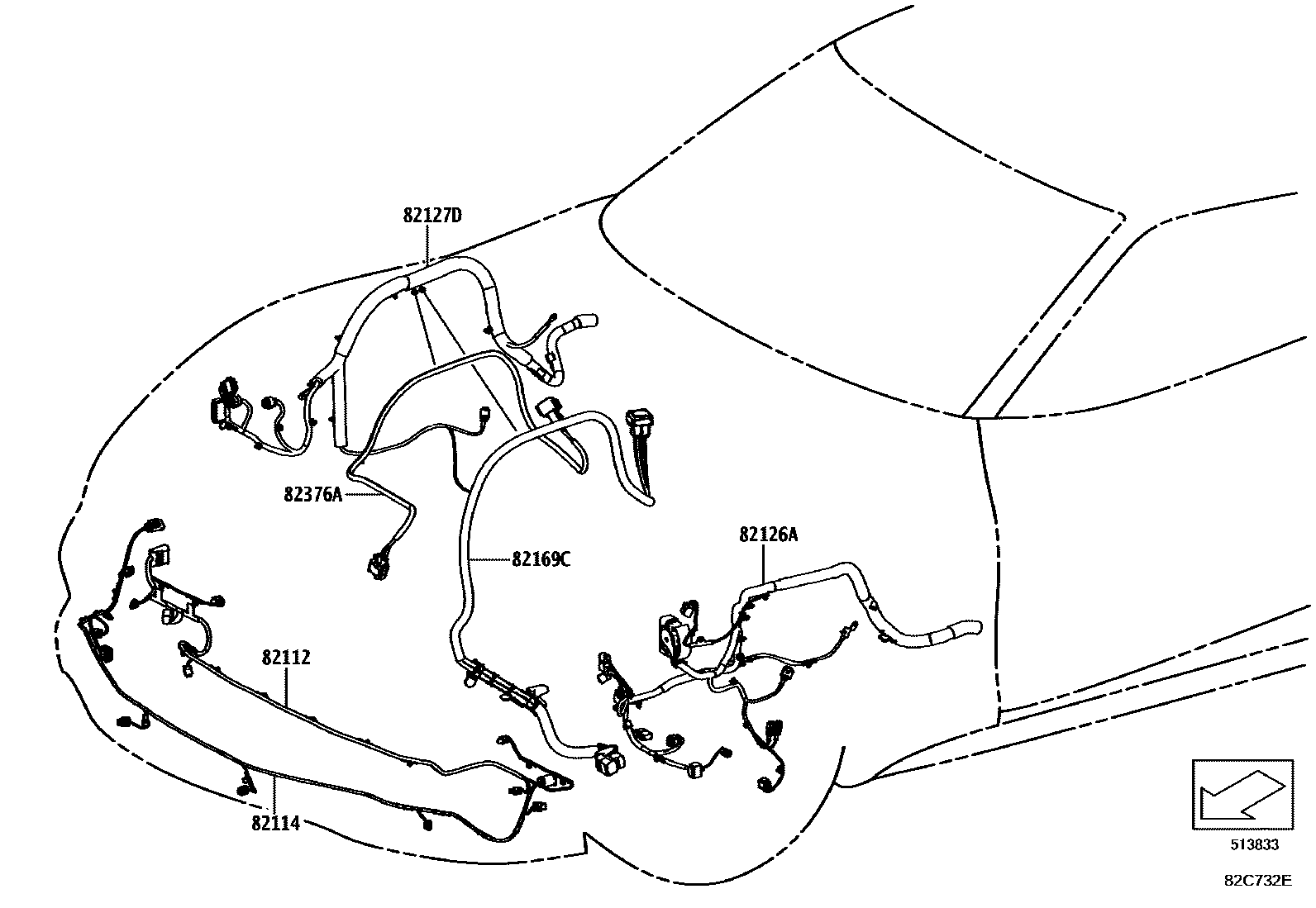

82112WIRE, ENGINE ROOM, NO.2

main82126-WAA01iDB2#,4#,81201903

82114WIRE, ENGINE ROOM, NO.4

main82114-WAA01iDB2#,4#,81201903

82126AWIRE, ENGINE, NO.6

main82127-WAA01iDB21,41,81201903-202103

main82127-WAA03iDB22,42201903-202103

main82127-WAA05iDB01; DB21,41,81202103

main82127-WAA07iDB02; DB22,42202103

82127DWIRE, ENGINE, NO.7

main82127-WAA02iDB01202003-202103

main82127-WAA04iDB02202003-202103

main82127-WAA06iDB01; DB21,41,81202103

main82127-WAA08iDB02; DB22,42202103

82169CWIRE, FLOOR, NO.31

main82169-WAA44iDB21,41,81201903

main82169-WAA72iDB82201903-202006

82376AWIRE, AUTO FAN

main82376-WAA02iDB82201903-202006

main82376-WAA03iDB4#201903

6 parts on this diagram · 33 diagrams in section
