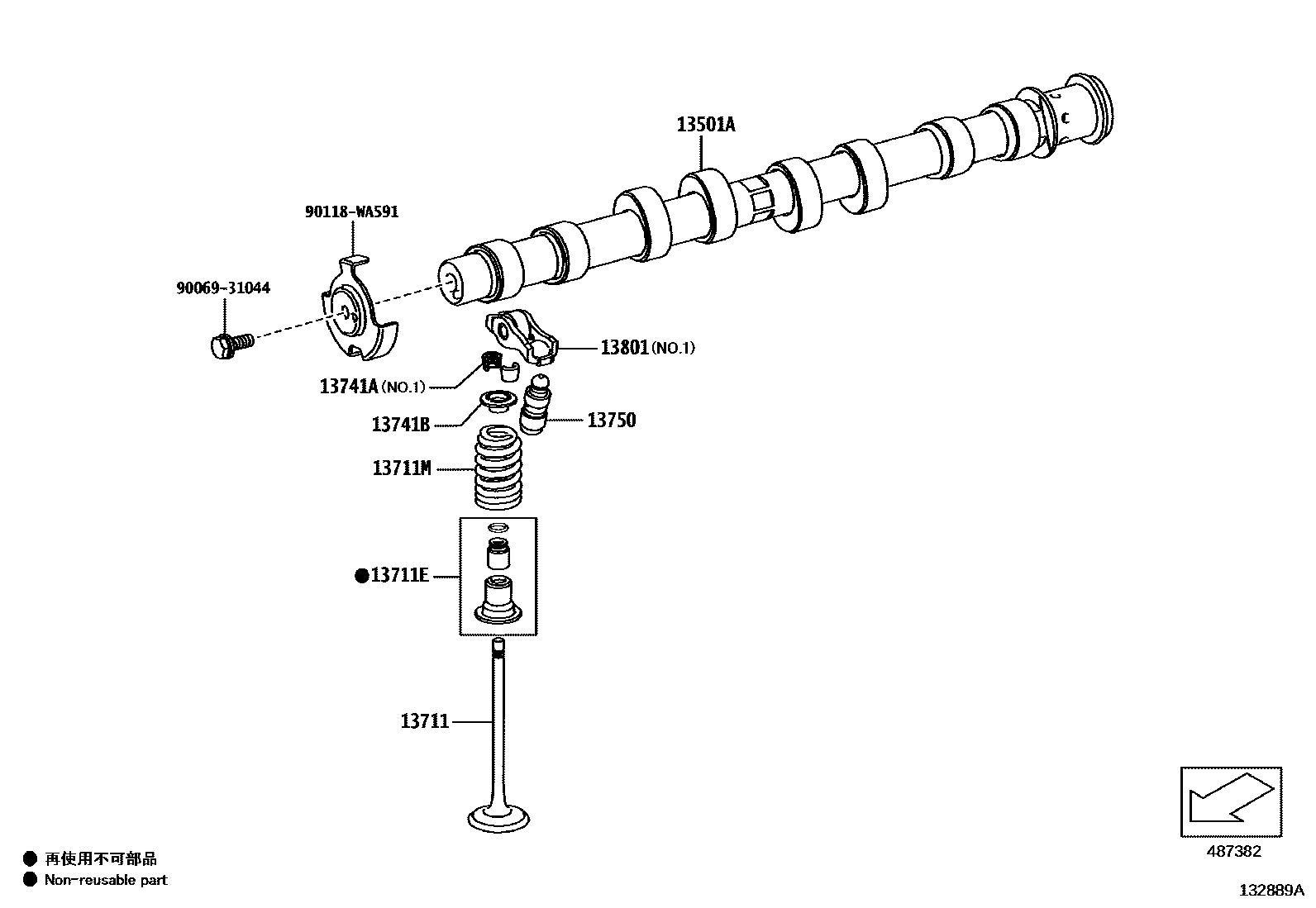

CAMSHAFT & VALVE
13501ACAMSHAFT SUB-ASSY, INTAKE
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13741ALOCK, VALVE SPRING RETAINER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13741BRETAINER, INTAKE VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
NO.1:REFER ILLUST.
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
9006931044
main90069-31044
90118WA591
main90118-WA591
10 parts on this diagram · 7 diagrams in section
