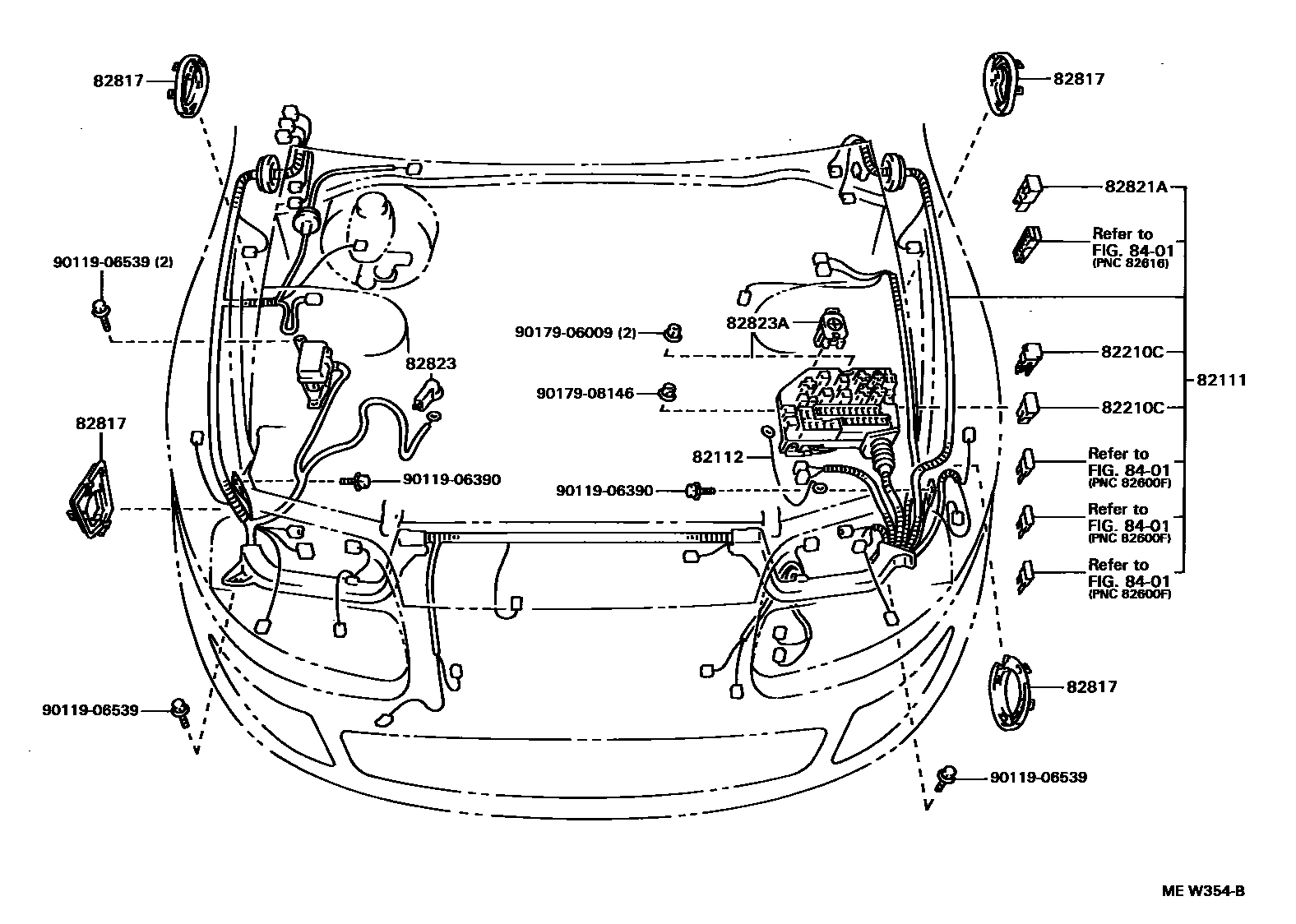

82111WIRE, ENGINE ROOM MAIN

main82111-1B470iJZA80..RHD..GEN199305-199408

main82111-1B480iJZA80..RHD..GEN199305-199408

W(ABS)

main82111-1B500iJZA80..RHD..EUR199305-199408

main82111-1B501iJZA80..RHD199408-199601

main82111-1B550iJZA80..LHD..EUR199305-199601

main82111-1B570iJZA80..GCC199305-199605

main82111-1B580iJZA80..LHD..GEN199305-199605

main82111-1B590iJZA80..LHD..GEN199305-199605

W(ABS)

82112WIRE, ENGINE ROOM, NO.2

main82112-14020iJZA80199305-199605

82210CFUSIBLE LINK

main90982-08188iJZA80..EUR,GCC199305-199605

30A,TERM.:FEMALE,PNK

main90982-08190iJZA80199305-199605

60A,TERM.:FEMALE,YEL

main90982-08216iJZA80..GCC199305-199408

30A,TERM.:FEMALE,PNK

sub90982-08188

main90982-08271iJZA80199305-199605

120A,TERM.:MALE,WHT

main90982-08277iJZA80199305-199605

50A,TERM.:FEMALE,RED

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24480iJZA80199305-199605

FRONT LH APRN

main82817-24490iJZA80..EUR199305-199601

FRONT RH APRN

main82817-24500iJZA80..GCC,GEN199305-199605

FRONT RH APRN

main82817-24511iJZA80199305-199605

REAR APRN

82821ACOVER, CONNECTOR

main82821-30460iJZA80..GCC199305-199310

W(ABS)

82823CAP, TERMINAL, NO.1

main82823-24030iJZA80199305-199605

82823ACAP, TERMINAL, NO.2

main82823-14100iJZA80199305-199605

8401

9011906390

main90119-06390

9011906539

main90119-06539

9017906009

main90179-06009

9017908146

main90179-08146

12 parts on this diagram · 15 diagrams in section
