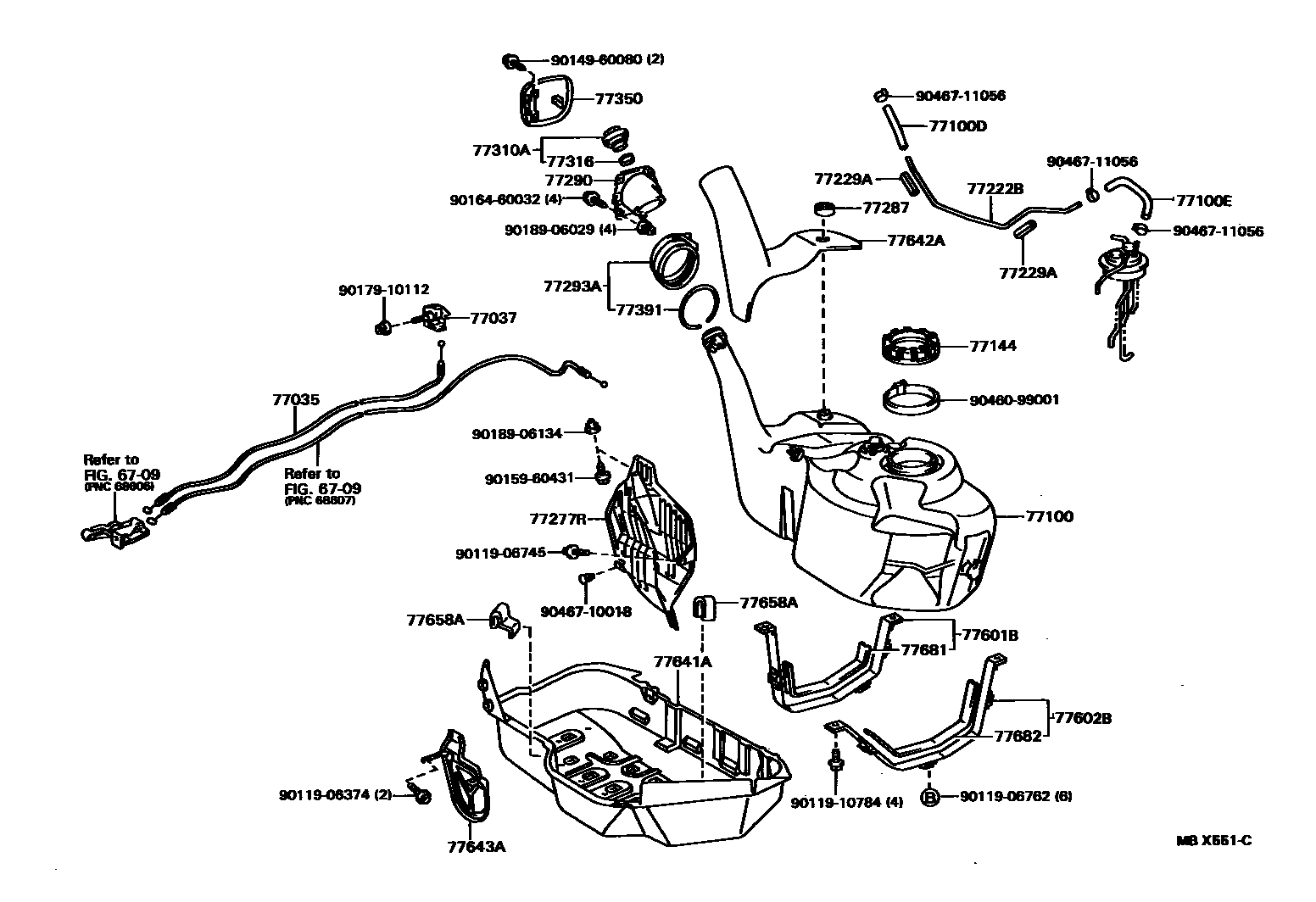

FUEL TANK & TUBE

0001 1 0002 1

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14250iJZA80..AET; JZA80..RHD..LB199305-199408

CHUUHATU

main77035-14260iJZA80..LHD..LB199305-199605

CHUUHATU

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14020iJZA80199305-199605

77100TANK ASSY, FUEL

main77001-14450iJZA80..EUR199305-199601

main77001-14460iJZA80..GCC,GEN199305-199605

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95311-11075iJZA80..EUR199305-199601

L=750

main95333-06020×2iJZA80..GCC,GEN199305-199605

L=200

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main95333-06020iJZA80199305-199605

L=200

77144RETAINER, FUEL PUMP GAUGE

main77144-14040iJZA80199305-199605

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-14090iJZA80..GCC,GEN199305-199605

77229APLATE, FUEL TANK BREATHER TUBE SEPARATE

main77229-14030×2iJZA80..GCC,GEN199305-199605

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-14130iJZA80199305-199605

77287SUPPORT, TANK TO CANISTER TUBE, NO.1

main77287-14030iJZA80199305-199605

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-14010iJZA80199305-199605

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-14010iJZA80199305-199605

77310ACAP ASSY, FUEL TANK

main77310-14080iJZA80199305-199605

77316GASKET, FUEL TANK CAP

main77316-14010iJZA80199305-199605

77350LID ASSY, FUEL FILLER OPENING

main77350-14081iJZA80199305-199605

77391RING, FUEL INLET BOX

main77391-32010iJZA80199305-199605

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-14080iJZA80199305-199605

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-14060iJZA80199305-199605

77641APROTECTOR, FUEL TANK, NO.1

main77641-14100iJZA80199305-199605

77642APROTECTOR, FUEL TANK, NO.2

main77642-14040iJZA80199305-199605

77643APROTECTOR, FUEL TANK, NO.3

main77643-14040iJZA80199305-199605

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-14030×2iJZA80199305-199605

77681SEAT, FUEL TANK BAND, RH

main77681-32060iJZA80199305-199605

77682SEAT, FUEL TANK BAND, LH

main77681-32060iJZA80199305-199605

9011906374

main90119-06374

9011906745

main90119-06745

9011906762

main90119-06762

9011910784

main90119-10784

9014960080

main90149-60080

9015960431

main90159-60431

9016460032

main90164-60032

9017910112

main90179-10112

9018906029

main90189-06029

9018906134

main90189-06134

9046099001

main90460-99001

9046710018

main90467-10018

9046711056

main90467-11056

38 parts on this diagram · 2 diagrams in section
