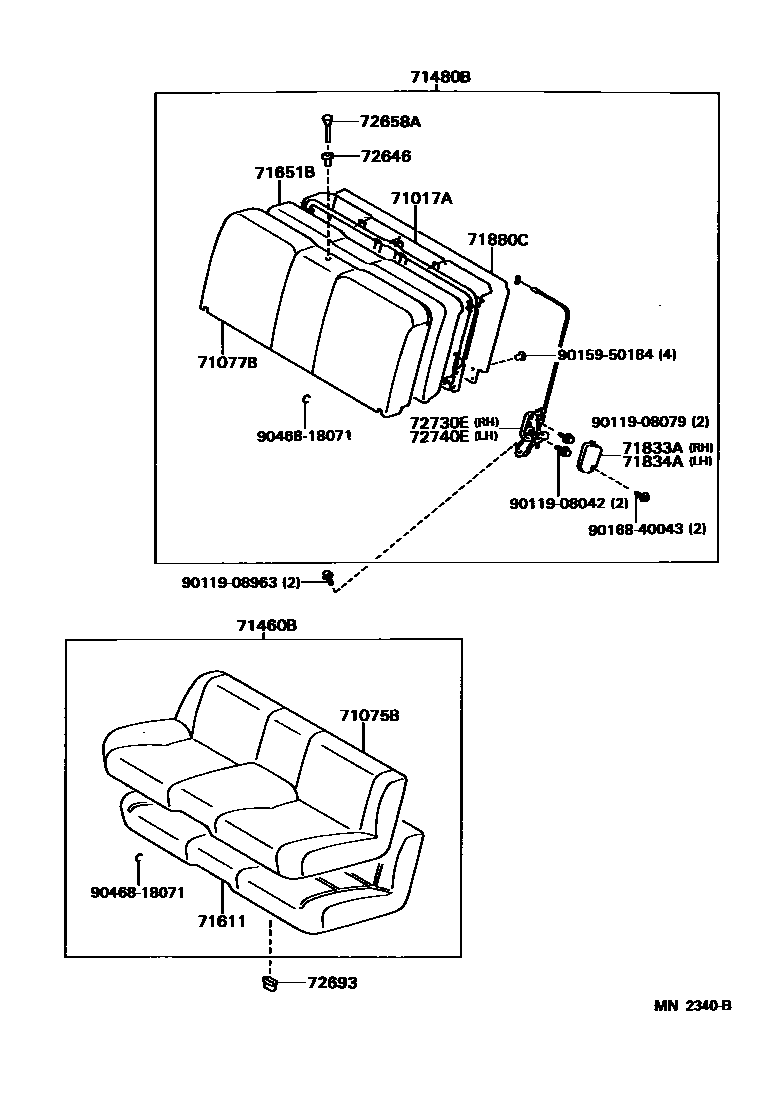

REAR SEAT & SEAT TRACK

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-14280iJZA80199305-199605

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-14400-C0×2iJZA80199305-199408

BLACK,TRIM2#

main71065-14420-A0iJZA80..EUR,GEN; JZA80..GCC199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71065-14420-C1iJZA80..EUR; JZA80..GCC199408-199508

BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1D360-C0iJZA80..GCC;JZA80..RHD..GEN; JZA80..LHD..(EUR,GEN); JZA80..RHD..EUR199305-199408

BLACK,TRIM2#

main71077-1D380-A0iJZA80199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71077-1D380-C1iJZA80199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71077-1D381-A0iJZA80..EUR,GEN; JZA80..GCC199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71077-1D381-C1iJZA80..EUR,GCC; JZA80..GEN199508-199601

BLACK,BLACK,TRIM2#; BLACK,TRIM2#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-14470-C0iJZA80..GCC199408-199508

BLACK,TRIM2#

main71560-14490-A0iJZA80..EUR,GEN; JZA80..GCC199408-199508

IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#

main71560-14490-C1iJZA80..EUR,GCC; JZA80..GEN199508-199601

***,BLACK,BLACK,TRIM2#; BLACK,TRIM2#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1D480-C0iJZA80199305-199408

BLACK,TRIM2#

main71480-1D481-C1iJZA80..GCC199408-199508

BLACK,TRIM2#

main71480-1D500-A0iJZA80199305-199408

W(LEATHER SEAT),IVORY,TRIM0#

main71480-1D500-C1iJZA80199305-199408

W(LEATHER SEAT),BLACK,TRIM2#

main71480-1D501-A0iJZA80..EUR,GEN199408-199508

IVORY,TRIM0#

main71480-1D501-C1iJZA80..EUR,GEN199408-199605

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-14010iJZA80199305-199605

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-14260iJZA80199305-199605

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-14040iJZA80199305-199605

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-14020iJZA80199305-199605

71880CCARPET ASSY, REAR SEATBACK BOARD

main71880-14030-C0iJZA80199305-199408

BLACK,TRIM0#,2#

main71880-14031-C1iJZA80..GCC;JZA80..RHD; JZA80..GEN; JZA80..LHD..EUR199508-199601

BLACK,BLACK,TRIM0#; BLACK,TRIM0#,2#; BLACK,TRIM2#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-18010-A0iJZA80..GEN199508-199601

IVORY,IVORY,TRIM0#

main72646-18010-C0iJZA80199305-199408

BLACK,TRIM2#

72658AKNOB, REAR SEATBACK LOCKING

main72658-23010-A0iJZA80199305-199508

IVORY,TRIM0#

main72658-23010-C0iJZA80199601-199605

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050×2iJZA80199305-199605

72730EADJUSTER ASSY, REAR SEATBACK, OUTER RH

main72730-14030iJZA80199305-199605

72740EADJUSTER ASSY, REAR SEATBACK, OUTER LH

main72740-14010iJZA80199305-199605

9011908042

main90119-08042

9011908079

main90119-08079

9011908963

main90119-08963

9015950184

main90159-50184

9016840043

main90168-40043

9046818071

main90468-18071

21 parts on this diagram · 1 diagram in section
