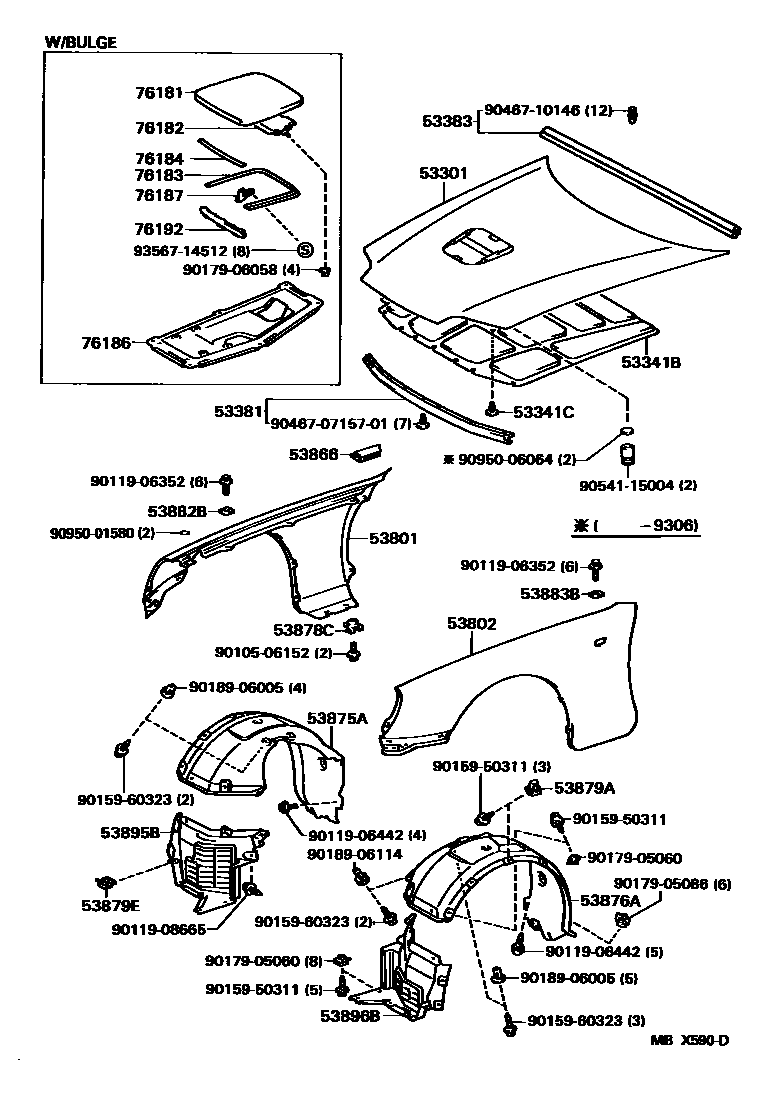

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53383SEAL, HOOD TO COWL TOP
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53879ESPACER, FRONT FENDER, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53895BSHIELD, FRONT FENDER SPLASH, FRONT RH
53896BSHIELD, FRONT FENDER SPLASH, FRONT LH
76181BULGE, HOOD
76182GUIDE, HOOD AIR INTAKE
76183PROTECTOR, HOOD BULGE, NO.1
76184PROTECTOR, HOOD BULGE, NO.2
76186SEAL, HOOD AIR INTAKE
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76192PLATE, HOOD BULGE
9010506152
main90105-06152
9011906352
main90119-06352
9011906442
main90119-06442
9011908665
main90119-08665
9015950311
main90159-50311
9015960323
main90159-60323
9017905060
main90179-05060
9017905086
main90179-05086
9017906058
main90179-06058
9018906005
main90189-06005
9018906114
main90189-06114
904670715701
main90467-0715701
9046710146
main90467-10146
9054115004
main90541-15004
9095001580
main90950-01580
9095006064
main90950-06064
9356714512
main93567-14512
41 parts on this diagram · 1 diagram in section
