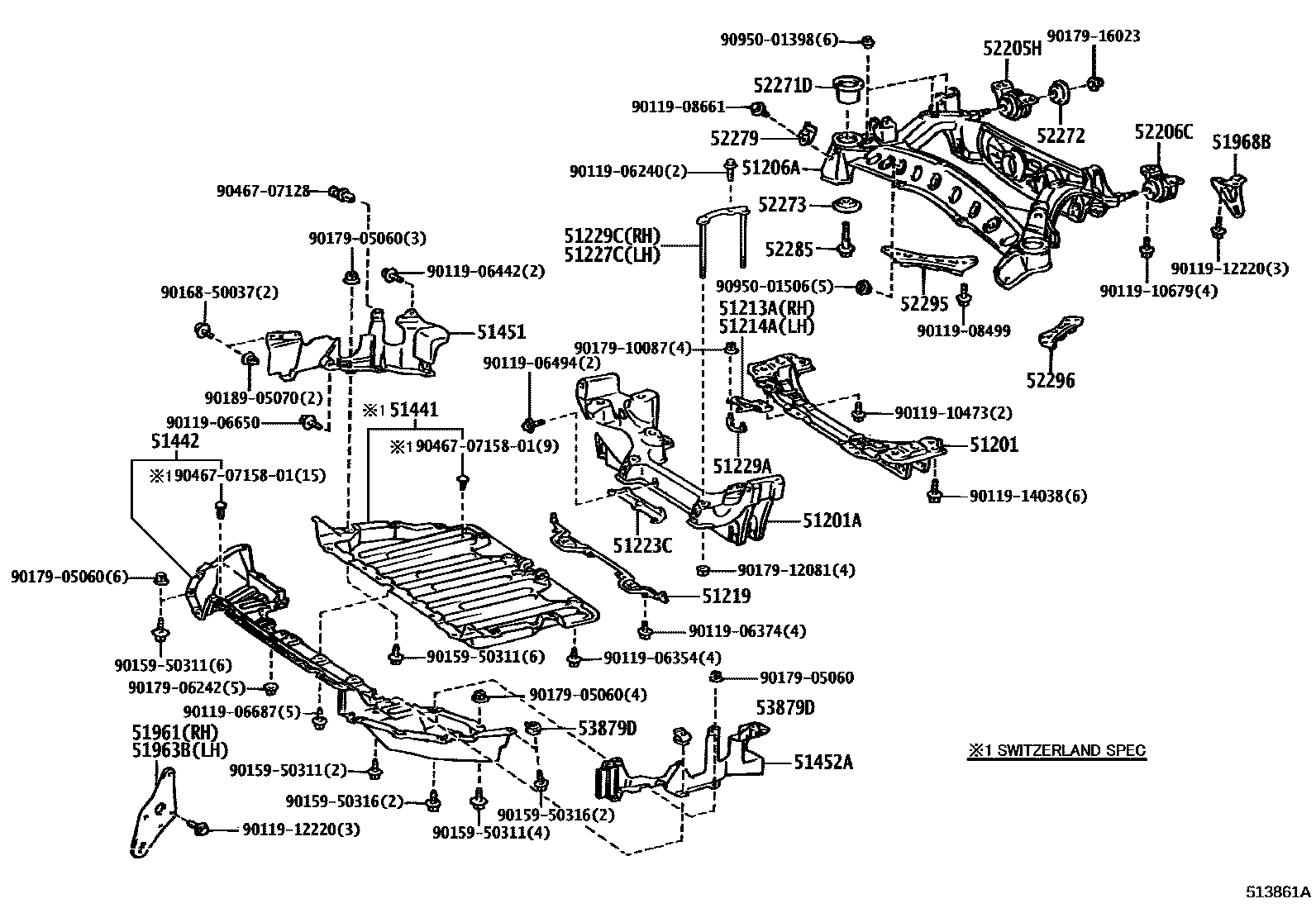

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1W(FRONT ACTIVE SPOILER)

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-24030iJZA80199305-199605

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-24020iJZA80199305-199605

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-14100iJZA80199305-199605

51213AEXTENSION, FRONT CROSSMEMBER, UPPER RH

main51213-24010iJZA80199305-199605

51214AEXTENSION, FRONT CROSSMEMBER, UPPER LH

main51214-24010iJZA80199305-199605

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-24011iJZA80199305-199605

51223CBRACKET, FRONT SUSPENSION MEMBER BRACKT, NO.1

main51223-24010iJZA80199305-199605

51227CPLATE, SUSPENSION MEMBER SET, NO.2

main51227-24010iJZA80199305-199605

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-24030iJZA80199305-199605

51229CPLATE, SUSPENSION MEMBER SET

main51229-24020iJZA80199305-199605

51441COVER, ENGINE UNDER, NO.1

main51440-14010iJZA80..EUR199305-199601

main51441-14140iJZA80..GCC,GEN199305-199605

51442COVER, ENGINE UNDER, NO.2

main51420-14010iJZA80..LHD..EUR199307-199401

SWITZERLAND SPEC

main51420-14010iJZA80..RHD..EUR199401-199601

SWITZERLAND SPEC OR W/O(ACTIVE FRONT SPOILER)

main51442-14040iJZA80..GCC,GEN199305-199605

51451COVER, ENGINE UNDER, NO.4 RH

main51451-14010iJZA80..RHD..EUR199401-199601

W/O(FRONT ACTIVE SPOILER)

main51451-14010iJZA80..LHD..EUR199307-199401

SWITZERLAND SPEC

main51451-14010iJZA80..GCC,GEN199305-199605

main51451-14020iJZA80..EUR199305-199601

51452ACOVER, ENGINE UNDER, NO.4 LH

main51452-14030iJZA80..LHD..EUR199307-199401

SWITZERLAND SPEC

main51452-14030iJZA80..RHD..EUR199401-199601

W/O(FRONT ACTIVE SPOILER)

main51452-14030iJZA80..GCC,GEN199305-199605

main51452-14040iJZA80..EUR199305-199601

51961HOOK, NO.1

main51960-24010iJZA80..EUR199305-199601

main51964-24010iJZA80..GCC,GEN199305-199605

51963BHOOK, TRANSPORT, FRONT RH

main51964-24010iJZA80..MTM199305-199605

main51980-14010iJZA80..4FC199305-199605

51968BHOOK, TRANSPORT, REAR LH

main51968-14100iJZA80199305-199605

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-14020iJZA80199305-199605

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-14010iJZA80199305-199605

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-14070iJZA80199305-199605

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-14040iJZA80199305-199605

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-14040iJZA80199305-199404

main52273-14060iJZA80199404-199605

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-24010iJZA80199305-199605

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-50010iJZA80199305-199505

main52285-50011iJZA80199505-199605

52295BRACE, REAR SUSPENSION MEMBER, RH

main51503-14020iJZA80199305-199605

52296BRACE, REAR SUSPENSION MEMBER, LH

main51503-14020iJZA80199305-199605

53879DRETAINER, FRONT FENDER LINER

main53879-17020iJZA80199305-199605

9011906240

main90119-06240

9011906354

main90119-06354

9011906374

main90119-06374

9011906442

main90119-06442

9011906494

main90119-06494

9011906650

main90119-06650

9011906687

main90119-06687

9011908499

main90119-08499

9011908661

main90119-08661

9011910473

main90119-10473

9011910679

main90119-10679

9011912220

main90119-12220

9011914038

main90119-14038

9015950311

main90159-50311

9015950316

main90159-50316

9016850037

main90168-50037

9017905060

main90179-05060

9017906242

main90179-06242

9017910087

main90179-10087

9017912081

main90179-12081

9017916023

main90179-16023

9018905070

main90189-05070

9046707128

main90467-07128

904670715801

main90467-0715801

9095001398

main90950-01398

9095001506

main90950-01506

53 parts on this diagram · 2 diagrams in section
