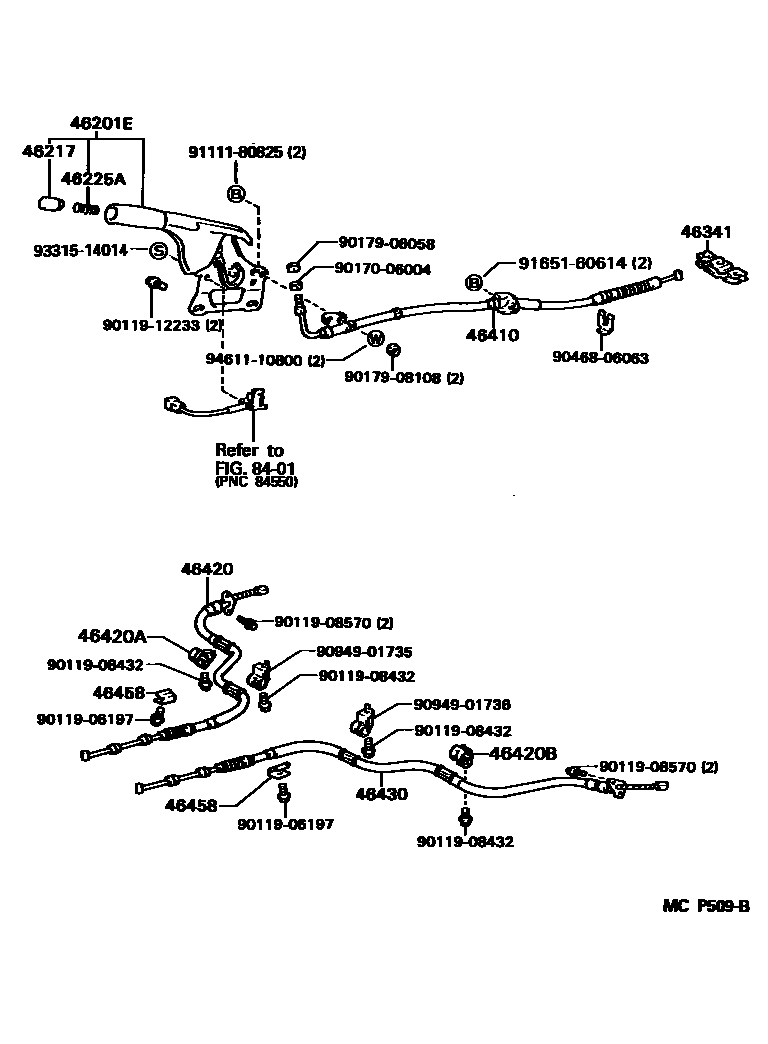

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14260-C0iJZA80..RHD199305-199601

BLACK,TRIM0#,2#

main46201-14270-C0iJZA80..GCC; JZA80..LHD..(EUR,GEN)199508-199605

BLACK,TRIM0#,2#; BLACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-24010-C0iJZA80199305-199508

BLACK,TRIM0#,2#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10180iJZA80199305-199605

46341EQUALIZER, PARKING BRAKE

main46341-24010iJZA80199305-199605

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14130iJZA80..RHD199305-199601

main46410-14140iJZA80..LHD199305-199605

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14260iJZA80199305-199605

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01914iJZA80199305-199605

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01915iJZA80199305-199605

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14320iJZA80199305-199605

46458RETAINER, CABLE

main46458-28010×2iJZA80199601-199605

main46458-50010×2iJZA80199305-199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011908432

main90119-08432

9011908570

main90119-08570

9011912233

main90119-12233

9017006004

main90170-06004

9017906058

main90179-06058

9017908108

main90179-08108

9046806063

main90468-06063

9094901735

main90949-01735

9094901736

main90949-01736

9111180825

main91111-80825

9165160614

main91651-60614

9331514014

main93315-14014

9461110800

main94611-10800

25 parts on this diagram · 2 diagrams in section
