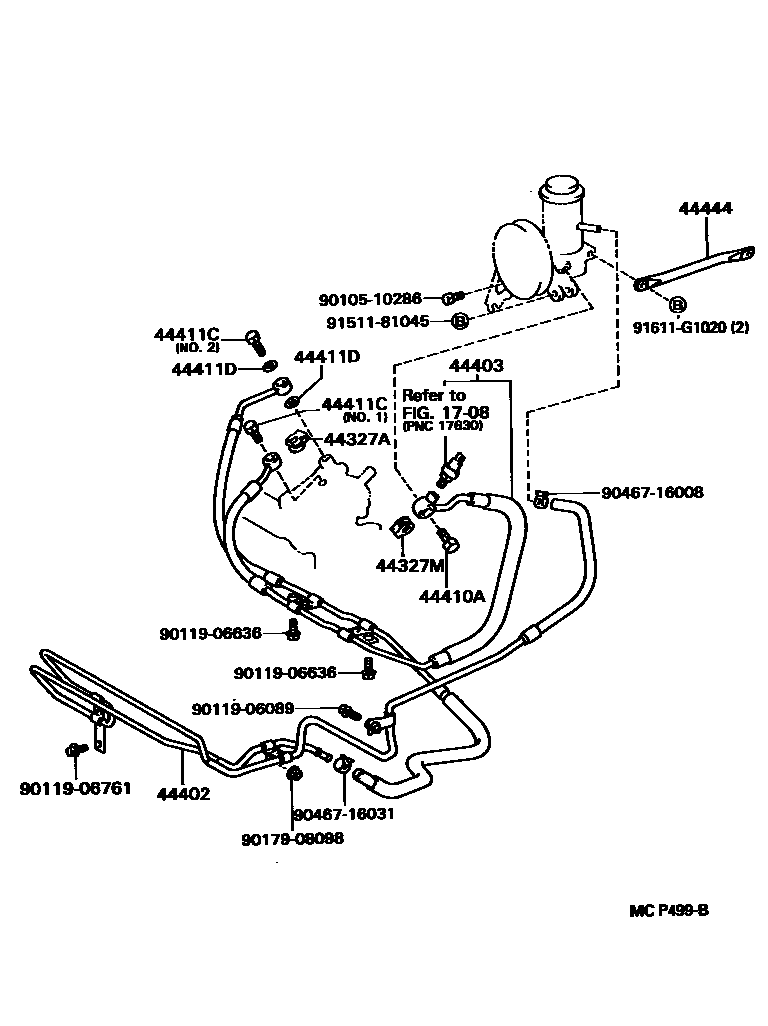

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iJZA80199305-199605

44327MGASKET, PRESSURE PORT, NO.2

main44327-26020iJZA80199305-199605

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14220iJZA80..GCC199305-199605

main44402-14230iJZA80..EUR199305-199408

main44402-14231iJZA80..EUR199408-199601

main44402-14240iJZA80..GEN199305-199605

44403TUBE SUB-ASSY, PRESSURE FEED, NO.1

main44403-14010iJZA80..RHD199305-199310

main44403-14011iJZA80..RHD199310-199601

main44403-14020iJZA80..LHD199305-199605

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iJZA80199305-199605

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iJZA80199305-199605

NO.1

main90401-17002iJZA80199305-199605

NO.2

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-17006×2iJZA80199305-199605

44444STAY, PUMP, REAR

main44444-22090iJZA80..EUR199305-199601

main44444-30100iJZA80..GCC,GEN199305-199605

9010510286

main90105-10286

9011906089

main90119-06089

9011906636

main90119-06636

9011906761

main90119-06761

9017908098

main90179-08098

9046716008

main90467-16008

9046716031

main90467-16031

9151181045

main91511-81045

91611G1020

main91611-G1020

18 parts on this diagram · 4 diagrams in section
