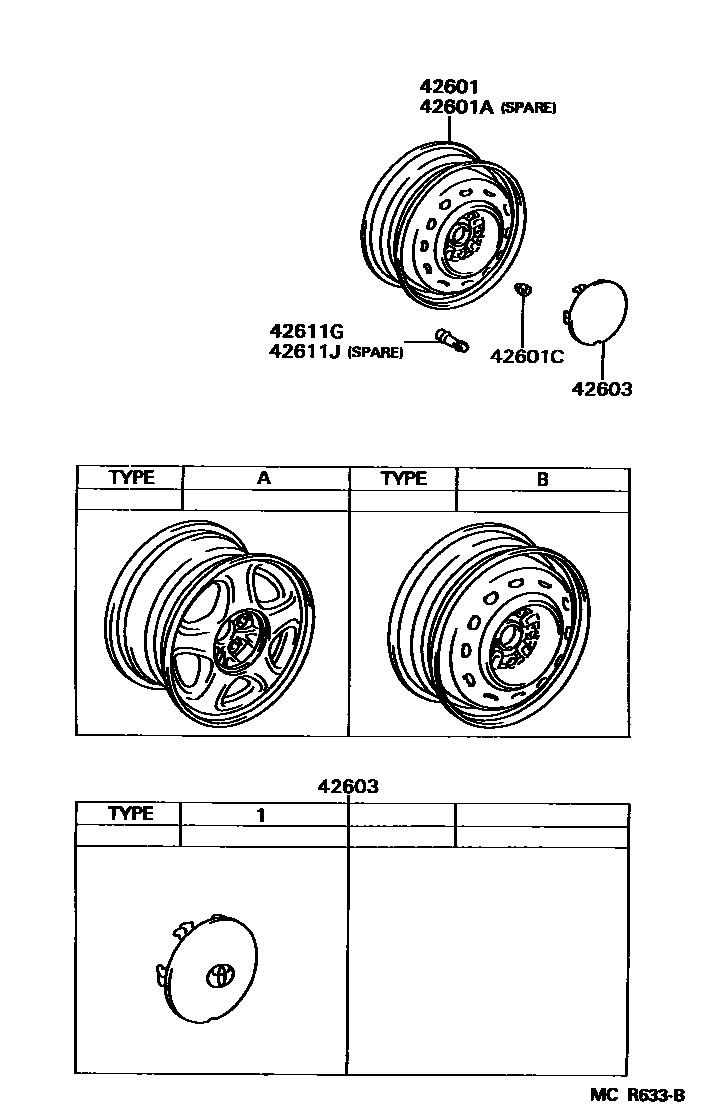

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-1B010×4iJZA80..GCC,GEN199305-199605

16X8JJ,16X8JJ,TYPE A

main42611-1B050×2iJZA80..EUR199305-199601

17X8JJ,17X8JJ,FR,TYPE A

main42611-1B060×2iJZA80..EUR199305-199601

17X9.5JJ,17X9.5JJ,RR,TYPE A

42601AWHEEL, DISC (FOR SPARE)

main42611-1B010iJZA80..GCC; JZA80..GEN199305-199605

16X8JJ,16X8JJ,TYPE A

main42611-50090iJZA80..EUR,GEN; JZA80..GCC199305-199605

17X4T,17X4T,TYPE B

42601CNUT, HUB (FOR AXLE)

main90942-01062×20iJZA80199305-199605

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14320×4iJZA80199305-199605

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iJZA80199305-199605

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZA80199305-199605

6 parts on this diagram · 2 diagrams in section
