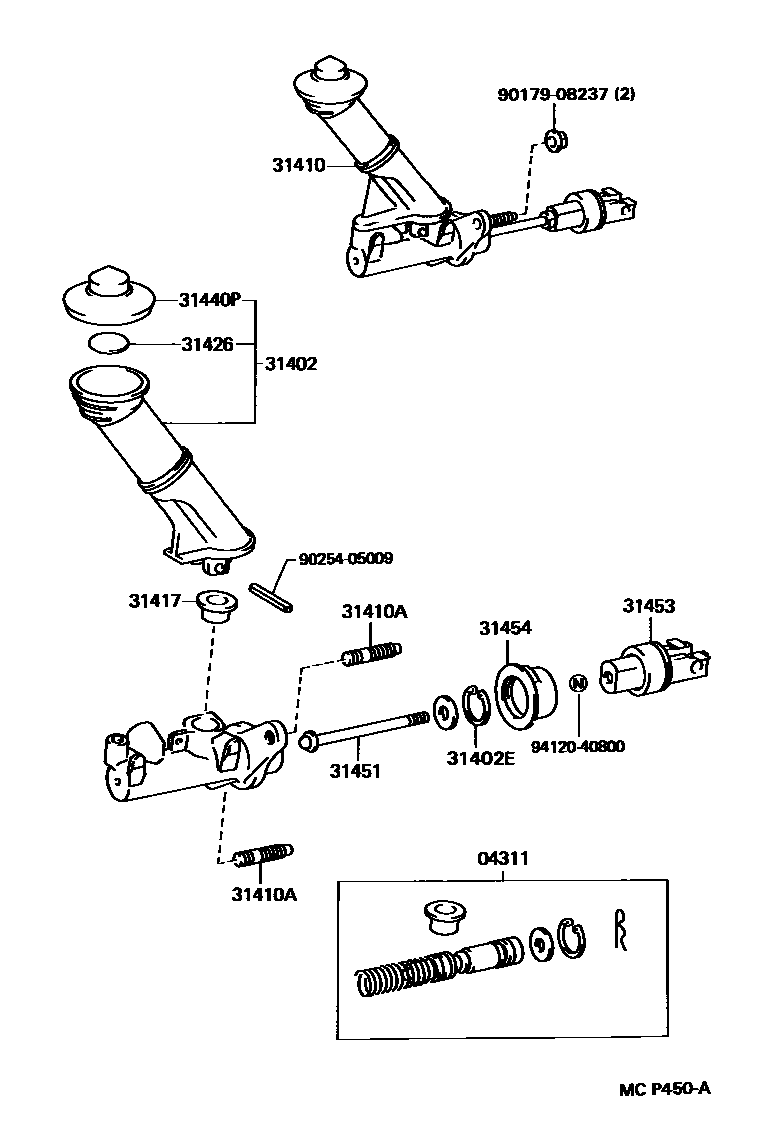

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12080iJZA80..MTM199305-199403

main04311-60150iJZA80..MTM199403-199605

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-24020iJZA80..RHD..MTM199305-199601

main31402-24030iJZA80..LHD..MTM199305-199605

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main96151-02200iJZA80..MTM199305-199605

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14300iJZA80..RHD..GEN199305-199408

main31410-14310iJZA80..LHD..MTM199305-199605

main31410-24050iJZA80..RHD..6F199305-199601

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iJZA80..MTM199305-199605

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iJZA80..MTM199305-199605

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iJZA80..MTM199305-199605

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iJZA80..LHD..MTM199305-199605

main47230-20040iJZA80..RHD..MTM199305-199601

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iJZA80..RHD..MTM199309-199601

main31451-24010iJZA80..LHD..MTM199305-199309

main31451-24020iJZA80..RHD..MTM199305-199309

main31451-24030iJZA80..LHD..MTM199309-199403

main31451-24040iJZA80..LHD..MTM199403-199605

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iJZA80..MTM199305-199605

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iJZA80..MTM199305-199605

9017908237

main90179-08237

9025405009

main90254-05009

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
