SHORT BLOCK ASSEMBLY

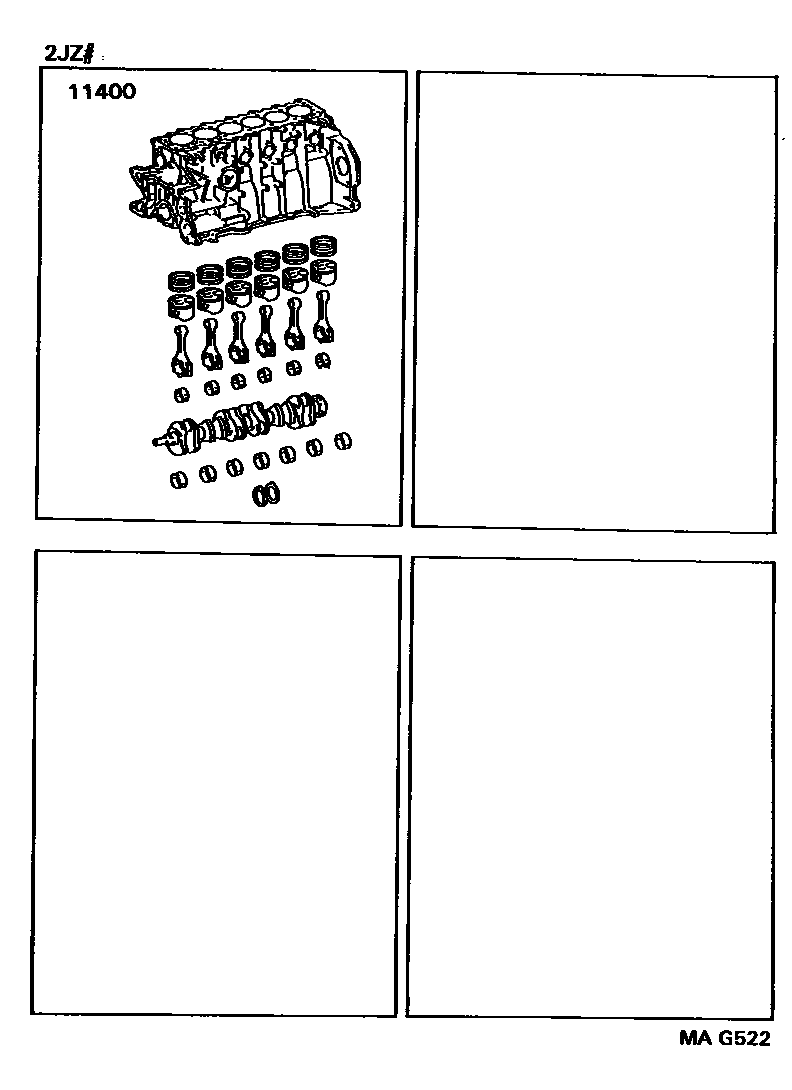

Parts diagram

11400BLOCK ASSY, SHORT

main11400-49075i199305-199505

main11400-49076i199505-199604

main11400-49077i199604-199605

main11400-49085i199305-199505

main11400-49086i199505-199601

1 parts on this diagram · 1 diagram in section
