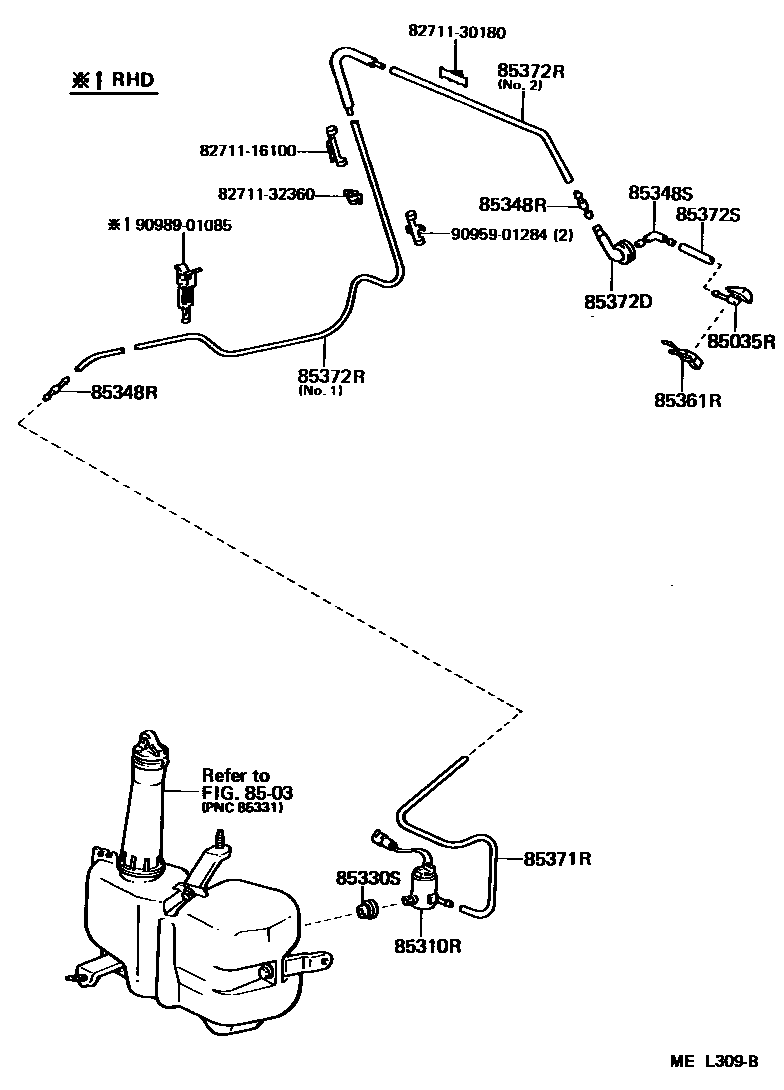

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-14340198808-199305

85310RMOTOR ASSY, REAR WASHER

main85310-14110198808-199305

main85310-22080198808-199305

85330SBUSH, REAR WASHER JAR

main90099-32089198808-199305

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122198808-199305

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200198808-199305

85361RHOLDER, REAR WASHER

main85342-14160198808-199305

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299198808-199305

85372DGROMMET, REAR WASHER HOSE

main85372-14030198808-199305

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33543198808-199305

main90446-07001198808-199305

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33299198808-199305

8271116100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16100

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9095901284

main90959-01284

9098901085

main90989-01085

16 parts on this diagram · 1 diagram in section
