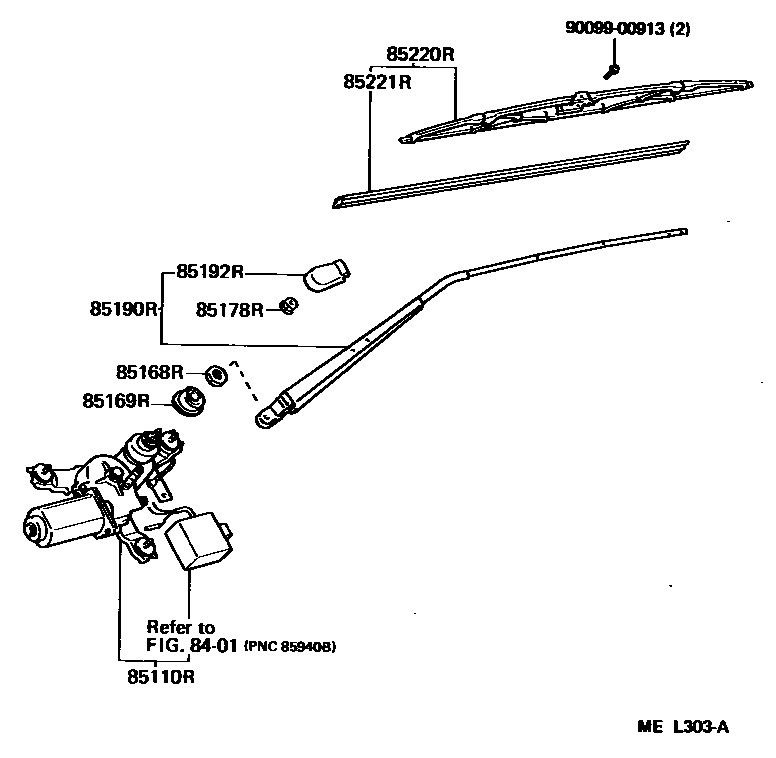

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85110-14380iMA70198808-199305

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iMA70198808-199305

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-14290iMA70198808-199305

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMA70198808-199305

85190RARM ASSY, REAR WIPER

main85190-14730iMA70198808-198911

main85190-14731iMA70198911-199305

85192RCOVER, REAR WIPER ARM

main85192-32010iMA70198808-199305

85220RBLADE ASSY, REAR WIPER

main85220-16440iMA70198808-198911

main85220-16441iMA70198911-199305

85221RBLADE, REAR WIPER

main85221-16080iMA70198808-199305

9009900913

main90099-00913

10 parts on this diagram · 1 diagram in section
