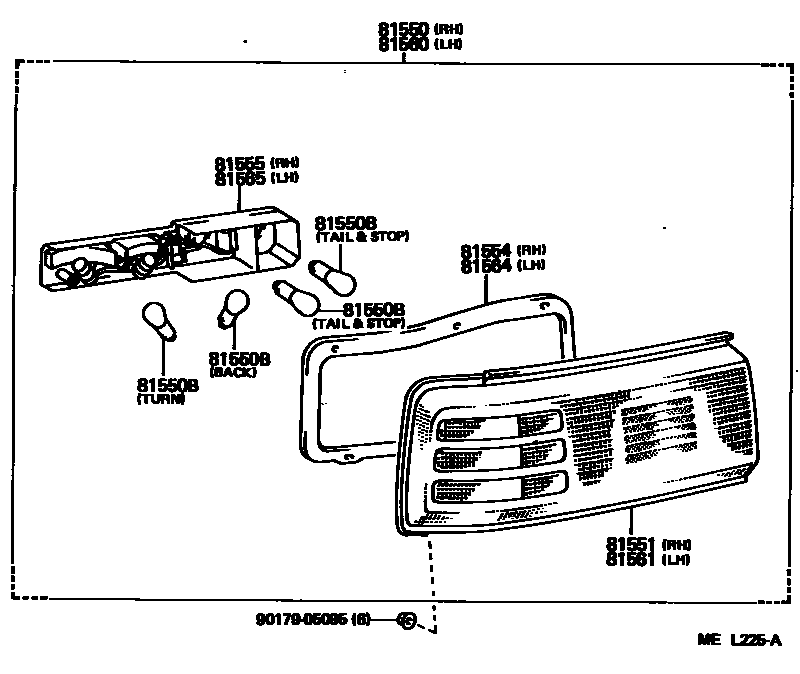

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-14410iMA70..ARL199008-199305

main81550-14582iMA70..ARL198808-199004

main81550-14583iMA70..ARL199004-199008

main81550-14640iMA70..C,EUR,GEN,V198808-199108

main81550-14641iMA70..C,GEN,V199108-199305

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iMA70198808-199305

12V 21W,TURN OR BACK

main99132-21210×4iMA70198808-199305

12V 21/5W,TAIL/STOP

81551LENS, REAR COMBINATION LAMP, RH

main81551-14410iMA70..ARL199008-199305

main81551-14580iMA70..C,EUR,GEN,V198808-199108

main81551-14582iMA70..ARL198808-199004

main81551-14583iMA70..ARL199004-199008

main81551-14641iMA70..C,GEN,V199108-199305

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-14580iMA70198808-199305

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-14581iMA70..ARL198808-199305

main81555-14640iMA70..C,EUR,GEN,V198808-199108

main81555-14641iMA70..C,GEN,V199108-199305

81560LAMP ASSY, REAR COMBINATION, LH

main81560-14410iMA70..ARL199008-199305

main81560-14612iMA70..ARL198808-199004

main81560-14613iMA70..ARL199004-199008

main81560-14640iMA70..C,EUR,GEN,V198808-199108

main81560-14641iMA70..C,GEN,V199108-199305

81561LENS, REAR COMBINATION LAMP, LH

main81561-14410iMA70..ARL199008-199305

main81561-14610iMA70..C,EUR,GEN,V198808-199108

main81561-14612iMA70..ARL198808-199004

main81561-14613iMA70..ARL199004-199008

main81561-14641iMA70..C,GEN,V199108-199305

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-14580iMA70..C,EUR,GEN,V198808-199305

main81564-14610iMA70..ARL198808-199305

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-14611iMA70..ARL198808-199305

main81565-14640iMA70..C,EUR,GEN,V198808-199108

main81565-14641iMA70..C,GEN,V199108-199305

9017905095

main90179-05095

10 parts on this diagram · 2 diagrams in section
