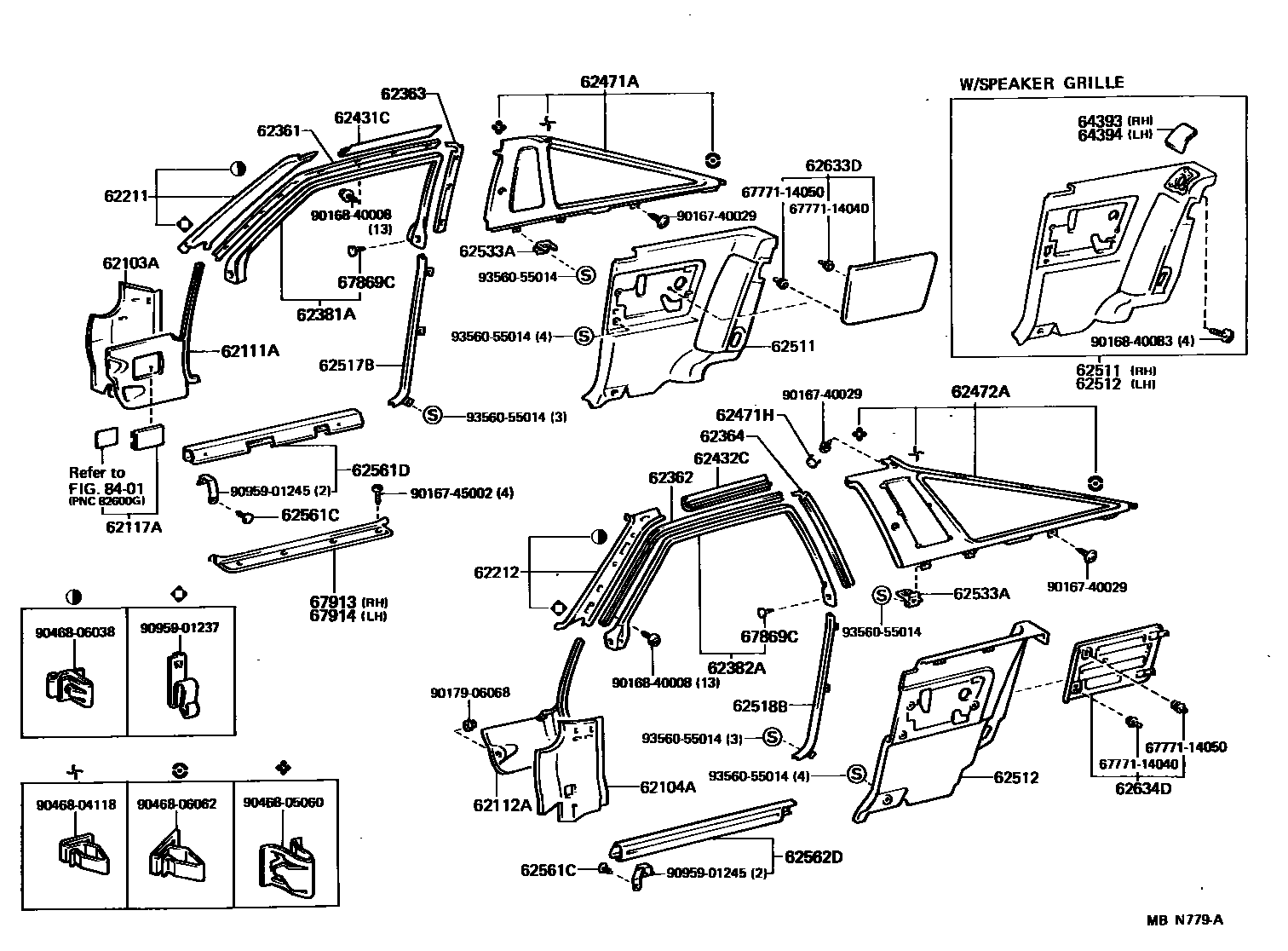

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14050iMA70..RHD198808-199305

main62105-14060iMA70..LHD198808-199305

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14050iMA70..RHD198808-199305

main62106-14060iMA70..LHD198808-199305

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-14160-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main62101-14160-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main62101-14160-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main62101-14160-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main62101-14160-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main62101-14160-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main62101-14170-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main62101-14170-03iMA70..RHD198808-198901

MEDIUM GRAY,TRIM1#

main62101-14170-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main62101-14170-06iMA70..RHD..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

main62101-14170-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main62101-14170-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-14210-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main62102-14210-03iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main62102-14210-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main62102-14210-06iMA70..LHD..(C,EUR,GEN)198808-198908

BROWN,TRIM4#

main62102-14210-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main62102-14210-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main62102-14230-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main62102-14230-03iMA70..RHD198908-199008

MEDIUM GRAY,TRIM1#

main62102-14230-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main62102-14230-06iMA70..RHD198808-198901

BROWN,TRIM4#

main62102-14230-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main62102-14230-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14052-03iMA70..LHD..(C,EUR)198808-199008

MEDIUM GRAY,TRIM1#

main62117-14052-04iMA70..LHD..(C,EUR)198808-199305

DEEP BLUE,TRIM8#

main62117-14052-06iMA70..LHD..(C,EUR)198808-199108

BROWN,TRIM4#

main62117-14052-13iMA70..LHD..C199008-199305

SHADOW GRAY,TRIM1#

main62117-14061-02iMA70..LHD..(GEN,V)198808-198908

MAROON,TRIM3#

main62117-14061-03iMA70..LHD..(GEN,V)198808-198908

MEDIUM GRAY,TRIM1#

main62117-14061-04iMA70..LHD..(GEN,V)198808-198908

DEEP BLUE,TRIM8#

main62117-14061-06iMA70..LHD..GEN198808-198908

BROWN,TRIM4#

main62117-14062-02iMA70..LHD..(GEN,V)198908-199008

MAROON,TRIM3#

main62117-14062-03iMA70..LHD..(GEN,V)198908-199008

MEDIUM GRAY,TRIM1#

main62117-14062-04iMA70..LHD..(GEN,V)198908-199008

DEEP BLUE,TRIM8#

main62117-14062-06iMA70..LHD..(GEN,V)198908-199008

BROWN,TRIM4#

main62117-14070-02iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main62117-14070-03iMA70..LHD..TWC199008-199305

SHADOW GRAY,TRIM1#

main62117-14070-04iMA70..LHD..TWC199008-199305

DEEP BLUE,TRIM8#

main62117-24030-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main62117-24030-03iMA70..RHD198908-199008

MEDIUM GRAY,TRIM1#

main62117-24030-06iMA70..RHD..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

main62117-24030-14iMA70..RHD198808-199008

DEEP BLUE,TRIM8#

main62117-24041-02iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main62117-24041-03iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main62117-24041-04iMA70..RHD199008-199305

DEEP BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62210-14051-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main62210-14051-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main62210-14051-04iMA70198808-199305

DARK BLUE,TRIM8#

main62210-14051-06iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

main62210-14051-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62210-14051-13iMA70199008-199305

SHADOW GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-14051-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main62220-14051-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main62220-14051-04iMA70198808-199305

DARK BLUE,TRIM8#

main62220-14051-06iMA70..C,EUR,GEN198901-198908

BROWN,TRIM4#

main62220-14051-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62220-14051-13iMA70199008-199305

SHADOW GRAY,TRIM1#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-14060iMA70..SPR198808-199305

main62361-14070iMA70..LB198808-199305

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-14060iMA70..SPR198808-199305

main62362-14070iMA70..LB198808-199305

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-14060iMA70..SPR198808-199104

main62371-14061iMA70..SPR199104-199305

main62371-14070iMA70..LB198808-199305

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-14060iMA70..SPR198808-199104

main62372-14061iMA70..SPR199104-199305

main62372-14070iMA70..LB198808-199305

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14150iMA70..LB198808-199305

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14140iMA70..LB198808-199305

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-14070-02iMA70..LB..(ARL,GEN,V)198808-199008

MAROON,TRIM3#

main62431-14070-03iMA70..LB..(C,EUR,GEN,V)198901-198908

MEDIUM GRAY,TRIM1#

main62431-14070-04iMA70..LB198808-199305

DEEP BLUE,TRIM8#

main62431-14070-06iMA70..LB..(ARL,C,EUR,GEN)198808-198901

BROWN,TRIM4#

main62431-14070-12iMA70..LB..(ARL,GEN,V)199008-199305

DEEP RED,TRIM3#

main62431-14070-13iMA70..LB199008-199305

SHADOW GRAY,TRIM1#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62431-14070-02iMA70..LB..(ARL,GEN,V)198808-199008

MAROON,TRIM3#

main62431-14070-03iMA70..LB..(C,EUR,GEN,V)198901-198908

MEDIUM GRAY,TRIM1#

main62431-14070-04iMA70..LB198808-199305

DEEP BLUE,TRIM8#

main62431-14070-06iMA70..LB..(C,EUR,GEN)198901-198908

BROWN,TRIM4#

main62431-14070-12iMA70..LB..(ARL,GEN,V)199008-199305

DEEP RED,TRIM3#

main62431-14070-13iMA70..LB199008-199305

SHADOW GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-14271-02iMA70..GEN,V198808-199008

MAROON,TRIM3#

main62471-14271-03iMA70..C,EUR,GEN,V198808-199008

MEDIUM GRAY,TRIM1#

main62471-14271-04iMA70..C,EUR,GEN,V198808-199108

DEEP BLUE,TRIM8#

main62471-14271-06iMA70..C,EUR,GEN198808-198908

BROWN,TRIM4#

main62471-14271-12iMA70..GEN,V199008-199108

DEEP RED,TRIM3#

main62471-14271-13iMA70..C,GEN,V199008-199108

SHADOW GRAY,TRIM1#

main62471-14281-02iMA70..ARL; MA70..GEN198808-199008

MAROON,TRIM3#; W(3-POINT SEAT BELT),MAROON,TRIM3#

main62471-14281-03iMA70..C,EUR; MA70..GEN198808-199008

W(3-POINT SEAT BELT),MEDIUM GRAY,TRIM1#

main62471-14281-04iMA70..ARL; MA70..C,EUR; MA70..GEN198808-199108

DEEP BLUE,TRIM8#; W(3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62471-14281-06iMA70..ARL198808-198901

BROWN,TRIM4#

main62471-14281-12iMA70..ARL; MA70..GEN199008-199108

DEEP RED,TRIM3#; W(3-POINT SEAT BELT),DEEP RED,TRIM3#

main62471-14281-13iMA70..ARL; MA70..C; MA70..GEN199008-199108

SHADOW GRAY,TRIM1#; W(3-POINT SEAT BELT),SHADOW GRAY,TRIM1#

62471HPLUG, HOLE(FOR ROOF SIDE INNER GARNISH)

main90950-01503-03×2iMA70..LHD; MA70..RHD..LB..TWT; MA70..RHD..TWC; MA70..SPR..ARL199008-199305

SHADOW GRAY,TRIM1#

main90950-01503-04×2iMA70198808-199305

BLUE,TRIM8#

main90950-01503-12×2iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main90950-01503-13×2iMA70198808-198901

MEDIUM GRAY,TRIM1#

main90950-01503-32×2iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main90950-01503-36×2iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-14241-02iMA70..GEN,V198808-199008

MAROON,TRIM3#

main62472-14241-03iMA70..C,EUR,GEN,V198808-199008

MEDIUM GRAY,TRIM1#

main62472-14241-04iMA70..C,EUR,GEN,V198808-199108

DEEP BLUE,TRIM8#

main62472-14241-06iMA70..C,EUR,GEN198808-198908

BROWN,TRIM4#

main62472-14241-12iMA70..GEN,V199008-199108

DEEP RED,TRIM3#

main62472-14241-13iMA70..C,GEN,V199008-199108

SHADOW GRAY,TRIM1#

main62472-14251-02iMA70..ARL; MA70..GEN198808-199008

MAROON,TRIM3#; W(3-POINT SEAT BELT),MAROON,TRIM3#

main62472-14251-03iMA70..C,EUR; MA70..GEN198808-199008

W(3-POINT SEAT BELT),MEDIUM GRAY,TRIM1#

main62472-14251-04iMA70..ARL; MA70..C,EUR; MA70..GEN198808-199108

DEEP BLUE,TRIM8#; W(3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62472-14251-06iMA70..C,EUR; MA70..GEN198808-199008

W(3-POINT SEAT BELT),BROWN,TRIM4#

main62472-14251-12iMA70..ARL; MA70..GEN199008-199108

DEEP RED,TRIM3#; W(3-POINT SEAT BELT),DEEP RED,TRIM3#

main62472-14251-13iMA70..ARL; MA70..C; MA70..GEN199008-199108

SHADOW GRAY,TRIM1#; W(3-POINT SEAT BELT),SHADOW GRAY,TRIM1#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-1B021-02iMA70..GEN,V;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MAROON,TRIM3#

main62510-1B021-03iMA70..C,GEN,V; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MEDIUM GRAY,TRIM1#

main62510-1B021-04iMA70198808-198903

DEEP BLUE,TRIM8#

main62510-1B021-06iMA70..C,GEN; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

BROWN,TRIM4#

main62510-1B022-02iMA70..ARL,GEN,V198908-199008

MAROON,TRIM3#

main62510-1B022-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main62510-1B022-04iMA70198908-199008

DEEP BLUE,TRIM8#

main62510-1B022-06iMA70198908-199008

BROWN,TRIM4#

main62510-1B023-02iMA70..GEN,V199108-199305

DEEP RED,TRIM3#

main62510-1B023-03iMA70..LHD..C;MA70..ARL,GEN,V199008-199108

SHADOW GRAY,TRIM1#

main62510-1B023-04iMA70..GEN,V;MA70..LHD..C199108-199305

DEEP BLUE,TRIM8#

main62510-1B023-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

main62510-1B023-B0iMA70..GEN,V;MA70..LHD..C199108-199305

SHADOW GRAY,TRIM1#

main62510-1B031-02iMA70..LHD..(GEN,V); MA70..RHD..GEN198808-198908

W(LEATHER SEAT),MAROON,TRIM3#

main62510-1B031-03iMA70..RHD..C198903-199008

W(LEATHER SEAT),MEDIUM GRAY,TRIM1#

main62510-1B031-04iMA70..LHD; MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main62510-1B031-06iMA70..LHD..(C,EUR,GEN); MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),BROWN,TRIM4#

main62510-1B031-12iMA70..GEN,V199008-199305

W(LEATHER SEAT),DEEP RED,TRIM3#

main62510-1B031-13iMA70..GEN,V;MA70..LHD..C199008-199108

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62510-1B031-16iMA70..GEN,V;MA70..LHD..C; MA70..RHD..C198908-199008

W(LEATHER SEAT),BROWN,TRIM4#

main62510-1B031-B0iMA70..GEN,V;MA70..LHD..C199108-199305

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62510-1B112-02iMA70..ARL199108-199305

DEEP RED,TRIM3#

main62510-1B112-03iMA70..LHD..C; MA70..RHD..C199008-199108

SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#

main62510-1B112-04iMA70..LHD..C; MA70..RHD..(ARL,C)199108-199305

DEEP BLUE,TRIM8#; W(SPEAKER),DEEP BLUE,TRIM8#

main62510-1B112-06iMA70..LHD..C199008-199108

W(SPEAKER),BROWN,TRIM4#

main62510-1B112-B0iMA70..LHD..C; MA70..RHD..(ARL,C)199108-199305

SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#

main62510-1B120-04iMA70..LHD..C199008-199108

W(LEATHER SEAT & SPEAKER),DEEP BLUE,TRIM8#

main62510-1B120-13iMA70..LHD..C; MA70..RHD..TWT..C199008-199108

W(LEATHER SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62510-1B120-16iMA70..LHD..C199008-199108

W(LEATHER SEAT & SPEAKER),BROWN,TRIM4#

main62510-1B120-B0iMA70..LHD..C; MA70..RHD..TWT..C199108-199305

W(LEATHER SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-1B011-02iMA70..ARL,GEN,V198808-198903

MAROON,TRIM3#

main62520-1B011-03iMA70..C,GEN,V; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MEDIUM GRAY,TRIM1#

main62520-1B011-04iMA70..C,GEN,V;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

DEEP BLUE,TRIM8#

main62520-1B011-06iMA70..C,EUR,GEN198901-198903

BROWN,TRIM4#

main62520-1B012-02iMA70..ARL,GEN,V198908-199008

MAROON,TRIM3#

main62520-1B012-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main62520-1B012-04iMA70198908-199008

DEEP BLUE,TRIM8#

main62520-1B012-06iMA70198908-199008

BROWN,TRIM4#

main62520-1B013-02iMA70..GEN,V199108-199305

DEEP RED,TRIM3#

main62520-1B013-03iMA70..LHD..C;MA70..ARL,GEN,V199008-199108

SHADOW GRAY,TRIM1#

main62520-1B013-04iMA70..GEN,V;MA70..LHD..C199108-199305

DEEP BLUE,TRIM8#

main62520-1B013-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

main62520-1B013-B0iMA70..GEN,V;MA70..LHD..C199108-199305

SHADOW GRAY,TRIM1#

main62520-1B021-02iMA70..LHD..(GEN,V); MA70..RHD..GEN198808-198908

W(LEATHER SEAT),MAROON,TRIM3#

main62520-1B021-03iMA70..RHD..C198903-199008

W(LEATHER SEAT),MEDIUM GRAY,TRIM1#

main62520-1B021-04iMA70..RHD..C198903-199008

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main62520-1B021-06iMA70..LHD..(C,EUR,GEN); MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),BROWN,TRIM4#

main62520-1B021-12iMA70..GEN,V199008-199305

W(LEATHER SEAT),DEEP RED,TRIM3#

main62520-1B021-13iMA70..GEN,V;MA70..LHD..C199008-199108

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62520-1B021-16iMA70..GEN,V;MA70..LHD..C; MA70..RHD..C198908-199008

W(LEATHER SEAT),BROWN,TRIM4#

main62520-1B021-B0iMA70..GEN,V;MA70..LHD..C199108-199305

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62520-1B102-02iMA70..ARL199108-199305

DEEP RED,TRIM3#

main62520-1B102-03iMA70..LHD..C; MA70..RHD..C199008-199108

SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#

main62520-1B102-04iMA70..LHD..C; MA70..RHD..(ARL,C)199108-199305

DEEP BLUE,TRIM8#; W(SPEAKER),DEEP BLUE,TRIM8#

main62520-1B102-06iMA70..LHD..C199008-199108

W(SPEAKER),BROWN,TRIM4#

main62520-1B102-B0iMA70..LHD..C; MA70..RHD..(ARL,C)199108-199305

SHADOW GRAY,TRIM1#; W(SPEAKER),SHADOW GRAY,TRIM1#

main62520-1B110-04iMA70..RHD..TWT..C199008-199305

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main62520-1B110-13iMA70..LHD..C; MA70..RHD..TWT..C199008-199108

W(LEATHER SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main62520-1B110-16iMA70..LHD..C199008-199108

W(LEATHER SEAT & SPEAKER),BROWN,TRIM4#

main62520-1B110-B0iMA70..LHD..C; MA70..RHD..TWT..C199108-199305

W(LEATHER SEAT & SPEAKER),SHADOW GRAY,TRIM1#; W(LEATHER SEAT),SHADOW GRAY,TRIM1#

62517BBASE, QUARTER TRIM, FRONT RH

main62517-14070-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main62517-14070-03iMA70..ARL; MA70..C,GEN,V;MA70..LHD..EUR;MA70..RHD..5F..EUR198903-198908

MEDIUM GRAY,TRIM1#

main62517-14070-04iMA70198808-198903

DEEP BLUE,TRIM8#

main62517-14070-06iMA70..C,EUR,GEN198901-198903

BROWN,TRIM4#

main62517-14070-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62517-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

62518BBASE, QUARTER TRIM, FRONT LH

main62518-14050-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main62518-14050-03iMA70..ARL; MA70..C,GEN,V;MA70..LHD..EUR;MA70..RHD..5F..EUR198903-198908

MEDIUM GRAY,TRIM1#

main62518-14050-04iMA70..LHD..EUR;MA70..ARL,C,GEN,V;MA70..RHD..5F..EUR198903-199305

DEEP BLUE,TRIM8#

main62518-14050-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

main62518-14050-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62518-14050-13iMA70199008-199305

SHADOW GRAY,TRIM1#

62533ABRACKET, QUARTER TRIM CLAMP

main62533-14070×4iMA70198808-199305

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01×4iMA70..ARL; MA70..GEN198901-198908

BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM3#,8#

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-14091iMA70198808-199305

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-14091iMA70198808-199305

62633DCOVER, QUARTER TRIM BASE, FRONT RH

main62633-14031-02iMA70..GEN,V;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MAROON,TRIM3#

main62633-14031-03iMA70198808-198901

MEDIUM GRAY,TRIM1#

main62633-14031-04iMA70198808-198903

DEEP BLUE,TRIM8#

main62633-14031-06iMA70..C,GEN; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

BROWN; BROWN,TRIM4#

main62633-14032-02iMA70..ARL,GEN,V198908-199008

MAROON,TRIM4#

main62633-14032-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main62633-14032-04iMA70198908-199008

DEEP BLUE,TRIM8#

main62633-14032-06iMA70198908-199008

BROWN,TRIM4#

main62633-14033-02iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62633-14033-03iMA70; MA70..LHD..C199008-199108

LIGHT GRAY,TRIM1#; W(3-POINT SEAT BELT),LIGHT GRAY,TRIM1#

main62633-14033-04iMA70199008-199305

DEEP BLUE,TRIM8#

main62633-14033-06iMA70..LHD..C199008-199108

W(3-POINT SEAT BELT),TAN,TRIM4#

main62633-14033-B0iMA70199108-199305

SHADOW GRAY,TRIM1#

main62633-14040-02iMA70..LHD..(GEN,V); MA70..RHD..GEN198808-198908

W(LEATHER SEAT),MAROON,TRIM3#

main62633-14040-03iMA70..LHD; MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),LIGHT GRAY,TRIM1#

main62633-14040-04iMA70..RHD..C198903-199008

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main62633-14040-06iMA70..LHD..(C,EUR,GEN); MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),BROWN,TRIM4#

main62633-14040-12iMA70..GEN,V199008-199305

W(LEATHER SEAT),DEEP RED,TRIM3#

main62633-14040-16iMA70..GEN,V;MA70..LHD..C; MA70..RHD..C198908-199008

W(LEATHER SEAT),TAN,TRIM4#

main62633-14040-C0iMA70..GEN,V;MA70..LHD..C; MA70..RHD..TWT..C199108-199305

W(LEATHER SEAT),BLACK,TRIM1#

62634DCOVER, QUARTER TRIM BASE, FRONT LH

main62634-14031-02iMA70..GEN,V;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MAROON,TRIM3#

main62634-14031-03iMA70..C,GEN,V; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

MEDIUM GRAY; MEDIUM GRAY,TRIM1#

main62634-14031-04iMA70..C,GEN,V;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

DEEP BLUE,TRIM8#

main62634-14031-06iMA70..C,GEN; MA70..LB..5F..ARL;MA70..4FC..TWT..ARL198903-198908

BROWN; BROWN,TRIM4#

main62634-14032-02iMA70..ARL,GEN,V198908-199008

MAROON,TRIM3#

main62634-14032-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main62634-14032-04iMA70198908-199008

DEEP BLUE,TRIM8#

main62634-14032-06iMA70198908-199008

BROWN,TRIM4#

main62634-14033-02iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main62634-14033-03iMA70; MA70..LHD..C199008-199108

LIGHT GRAY,TRIM1#; W(3-POINT SEAT BELT),LIGHT GRAY,TRIM1#

main62634-14033-04iMA70..LHD..C199008-199108

W(3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62634-14033-06iMA70..LHD..C199008-199108

W(3-POINT SEAT BELT),TAN,TRIM4#

main62634-14033-B0iMA70199108-199305

SHADOW GRAY,TRIM1#

main62634-14040-02iMA70..LHD..(GEN,V); MA70..RHD..GEN198808-198908

W(LEATHER SEAT),MAROON,TRIM3#

main62634-14040-03iMA70..LHD; MA70..RHD..(C,EUR)198808-198903

W(LEATHER SEAT),LIGHT GRAY,TRIM1#

main62634-14040-04iMA70..RHD..GEN198808-198908

W(LEATHER SEAT),DEEP BLUE,TRIM8#

main62634-14040-06iMA70..LHD..(C,GEN); MA70..RHD..C198903-198908

W(LEATHER SEAT),BROWN,TRIM4#

main62634-14040-12iMA70..GEN,V199008-199305

W(LEATHER SEAT),DEEP RED,TRIM3#

main62634-14040-16iMA70..GEN,V;MA70..LHD..C; MA70..RHD..C198908-199008

W(LEATHER SEAT),TAN,TRIM4#

main62634-14040-C0iMA70..GEN,V;MA70..LHD..C; MA70..RHD..TWT..C199108-199305

W(LEATHER SEAT),BLACK,TRIM1#

64393GRILLE, REAR SPEAKER, NO.2 RH

main64393-14040-04iMA70..ARL,C199108-199305

DEEP BLUE,TRIM8#

main64393-14040-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

main64393-14040-12iMA70..ARL199108-199305

DEEP RED,TRIM3#

main64393-14040-13iMA70..C199008-199108

SHADOW GRAY,TRIM1#

64394GRILLE, REAR SPEAKER, NO.2 LH

main64394-14030-04iMA70..C199008-199108

DEEP BLUE,TRIM8#

main64394-14030-06iMA70..LHD..C199008-199108

BROWN,TRIM4#

main64394-14030-12iMA70..ARL199108-199305

DEEP RED,TRIM3#

main64394-14030-13iMA70..C199008-199108

SHADOW GRAY,TRIM1#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020×8iMA70..LB198808-199305

67913PLATE, FRONT DOOR SCUFF, RH

main67913-14121-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main67913-14121-03iMA70..C,EUR,GEN,V198901-198908

MEDIUM GRAY,TRIM1#

main67913-14121-04iMA70198808-199305

DEEP BLUE,TRIM8#

main67913-14121-06iMA70..ARL,C,EUR,GEN198808-198901

BROWN,TRIM4#

main67913-14121-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main67913-14121-13iMA70199008-199305

SHADOW GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-14121-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

main67913-14121-03iMA70198908-199008

MEDIUM GRAY,TRIM1#

main67913-14121-04iMA70198808-199305

DEEP BLUE,TRIM8#

main67913-14121-06iMA70198908-199008

BROWN,TRIM4#

main67913-14121-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

main67913-14121-13iMA70199008-199305

SHADOW GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

6777114050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14050

9016740029

main90167-40029

9016745002

main90167-45002

9016840008

main90168-40008

9016840083

main90168-40083

9017906068

main90179-06068

9046804118

main90468-04118

9046805060

main90468-05060

9046806038

main90468-06038

9046806062

main90468-06062

9095901237

main90959-01237

9095901245

main90959-01245

9356055014

main93560-55014

48 parts on this diagram · 2 diagrams in section
