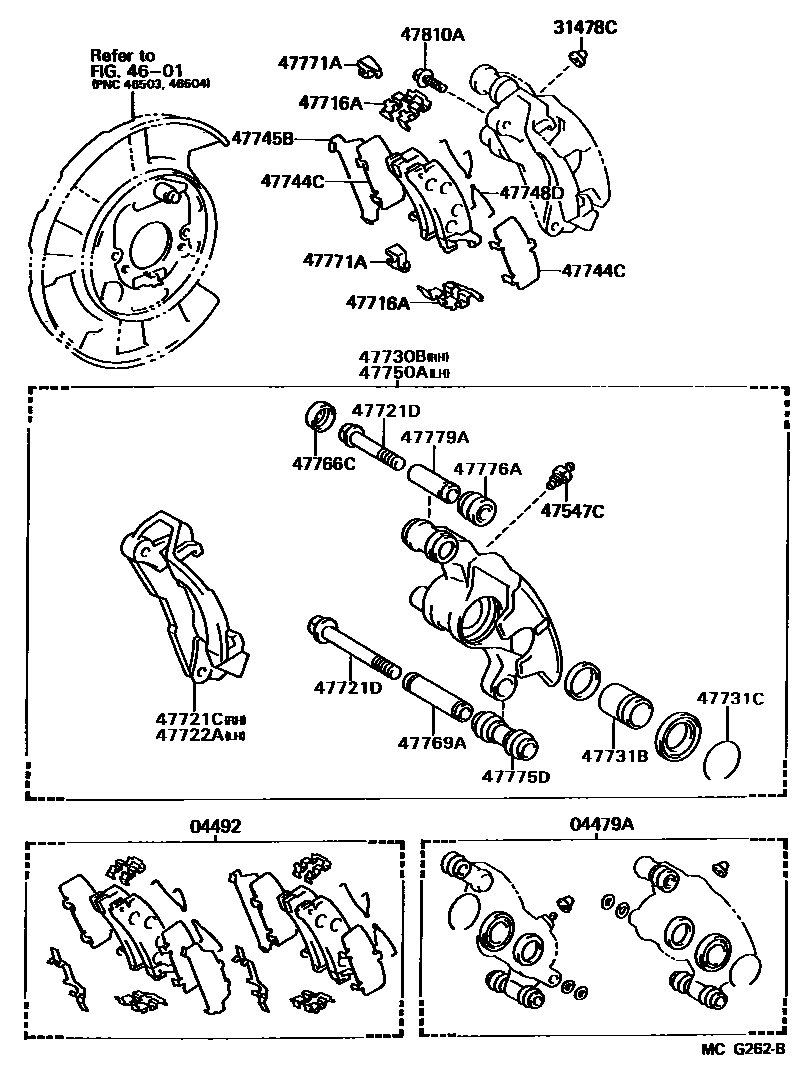

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14110iMA70198808-199008

04492PAD KIT, DISC BRAKE, REAR

main04492-14100iMA70..ARL,GEN198808-199008

main04492-14110iMA70..C,EUR,V198808-199008

main04492-14120iMA70..ARL,GEN199008-199305

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMA70199008-199305

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMA70198808-199008

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14140×4iMA70199008-199305

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-14130iMA70198808-199008

main47721-14160iMA70199008-199305

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08117×2iMA70198808-199008

*8-1.25PX65-15

main90119-08431×2iMA70199008-199305

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-14130iMA70198808-199008

main47721-14160iMA70199008-199305

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14190iMA70198808-199008

main47730-14230iMA70199008-199305

47731BPISTON, REAR DISC BRAKE

main47731-14100×2iMA70198808-199008

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001×2iMA70198808-199008

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-14110×4iMA70..C,EUR,V198808-199008

main47744-22091×4iMA70..ARL,GEN199008-199305

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-14040×2iMA70..C,EUR,V198808-199008

main47745-22051×4iMA70..ARL,GEN198808-199008

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14070×4iMA70199008-199305

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14210iMA70198808-199008

main47750-14240iMA70199008-199305

47766CCAP, CYLINDER SLIDE PIN

main47766-17010×2iMA70198808-199008

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010×2iMA70199008-199305

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040×4iMA70198808-199008

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2iMA70198808-199008

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14030×2iMA70198808-199008

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-14010×2iMA70198808-199008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10402×4iMA70198808-199008

23 parts on this diagram · 2 diagrams in section
