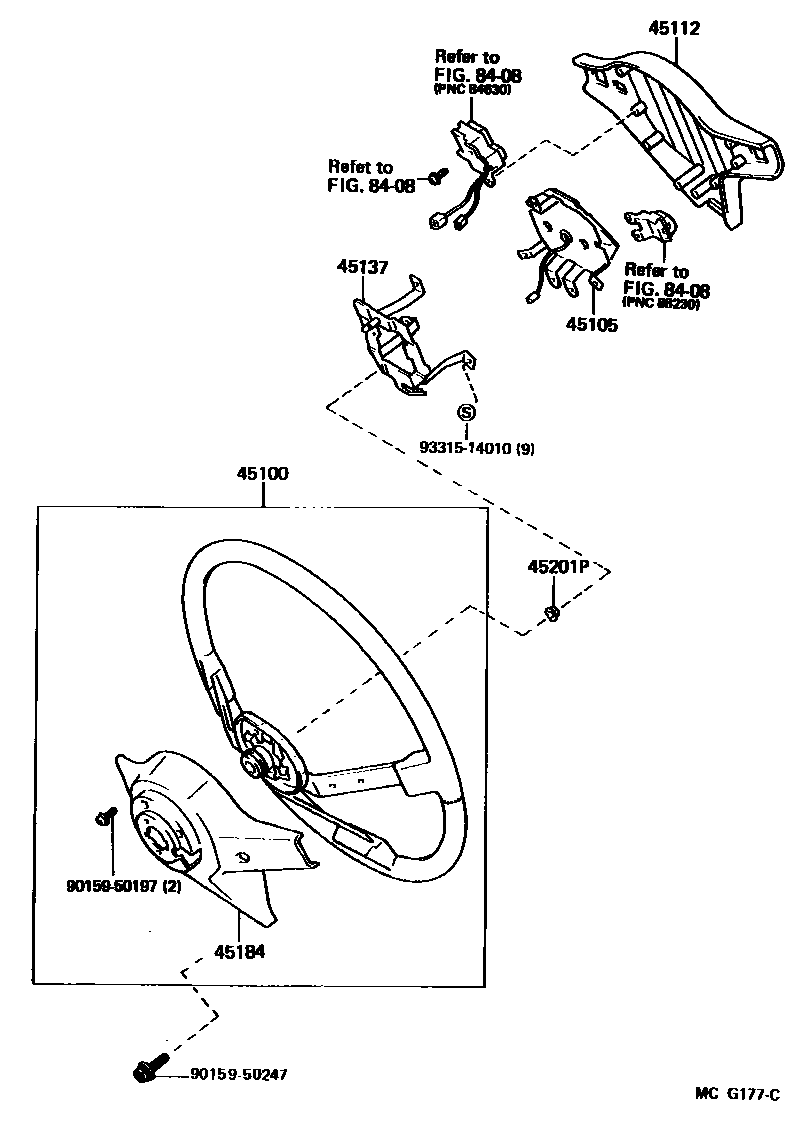

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-14460iMA70..GEN198808-199305

main45100-14490iMA70..ARL,C,EUR198808-199305

main45100-14500iMA70..V198808-199305

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-14110iMA70198808-199305

45112PAD, STEERING WHEEL

main45112-14170iMA70..ARL,GEN,V198808-199305

main45112-14180iMA70..C,EUR198808-199305

45137PLATE, HORN BUTTON STOP

main45106-14020iMA70198808-199305

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-14130iMA70198808-199305

45201PNUT, STEERING WHEEL SET

main90179-12086iMA70198808-199305

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950197

main90159-50197

9015950247

main90159-50247

9331514010

main93315-14010

10 parts on this diagram · 1 diagram in section
