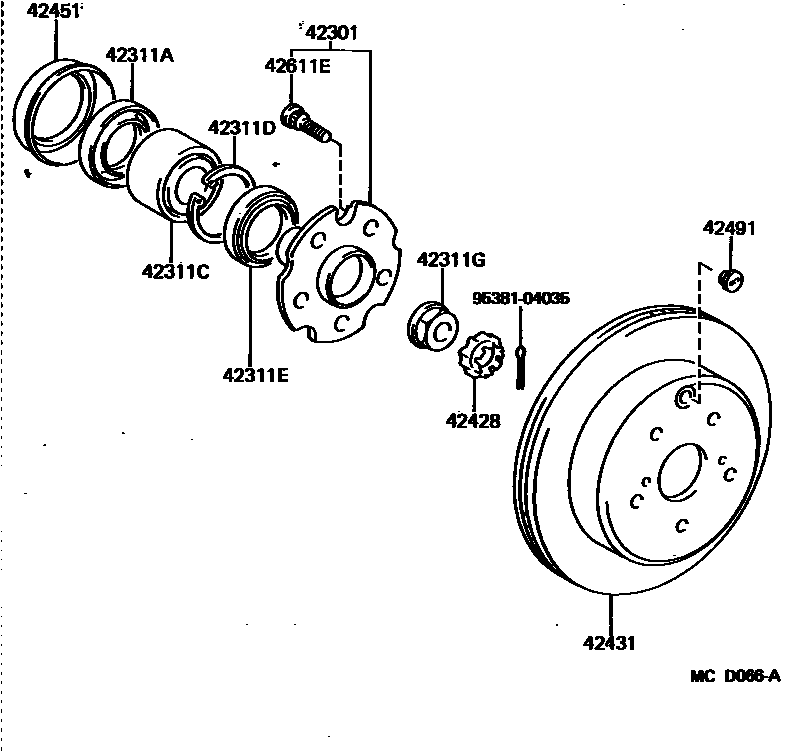

REAR AXLE SHAFT & HUB

0001 1 0002 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-14010×2iMA70198808-199305

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-63001×2iMA70198808-199305

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005×2iMA70198808-199305

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002×2iMA70198808-199305

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001×2iMA70198808-199305

42311GNUT(FOR REAR AXLE SHAFT)

main90179-24007×2iMA70198808-199305

42428PLATE, REAR AXLE LOCK NUT

main42428-22010×2iMA70198808-199305

42431DISC, REAR

main42431-14100×2iMA70..ARL,GEN199108-199305

main42431-14120×2iMA70..C,V199008-199305

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010×2iMA70198808-199305

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMA70198808-199008

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049×10iMA70198808-199305

9538104035

main95381-04035

12 parts on this diagram · 2 diagrams in section
