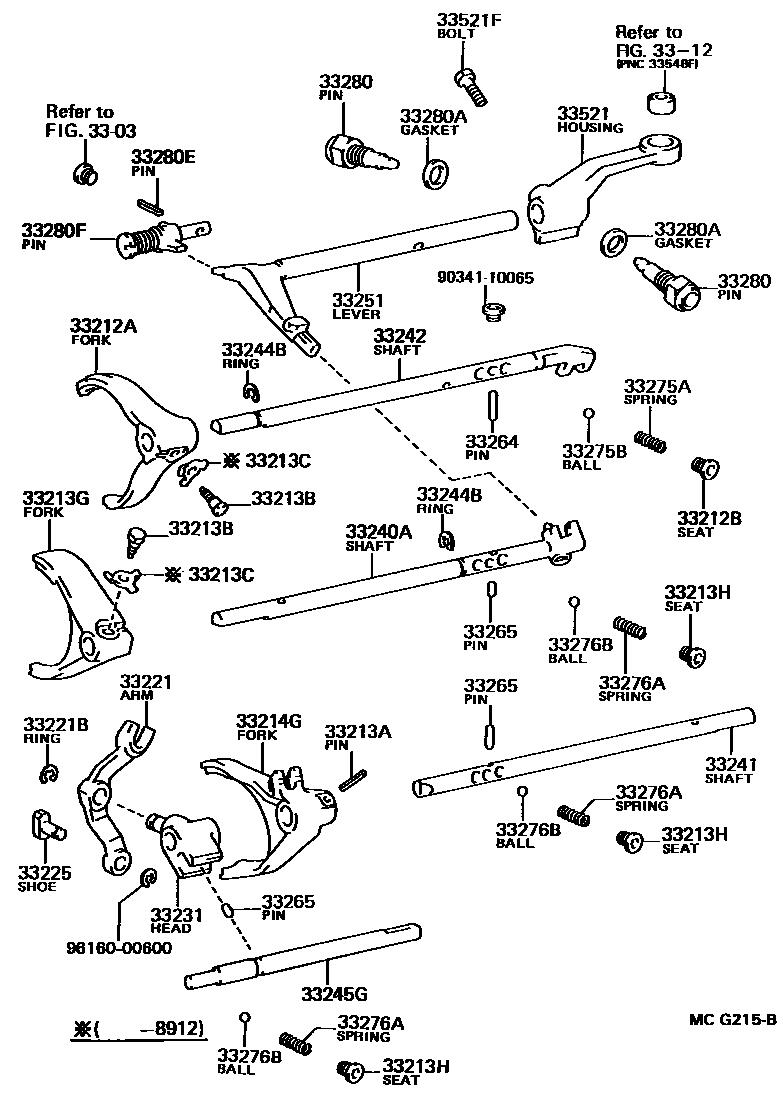

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
3312
33212AFORK, GEAR SHIFT, NO.1
33212BPLUG, W/HEAD STRAIGHT SCREW, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33231HEAD, REVERSE SHIFT
33240ASHAFT ASSY, GEAR SHIFT FORK, NO.2
33242SHAFT, GEAR SHIFT FORK, NO.1
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
OD=9.52,STEEL,BALL
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
L=13.6,OD=6
L=8.6,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.65
L=34.5
L=20.2
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
SHIFT HEAD SIDE
33276BBALL, SHIFT DETENT, NO.2
SHIFT HEAD SIDE
FORK SHAFT SIDE
33280PIN ASSY, REVERSE RESTRICT
LH
RH
RH
LH
33280AGASKET, REVERSE RESTRICT PIN
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33280FPIN ASSY, REVERSE RESTRICT
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9034110065
main90341-10065
9616000600
main96160-00600
36 parts on this diagram · 3 diagrams in section
