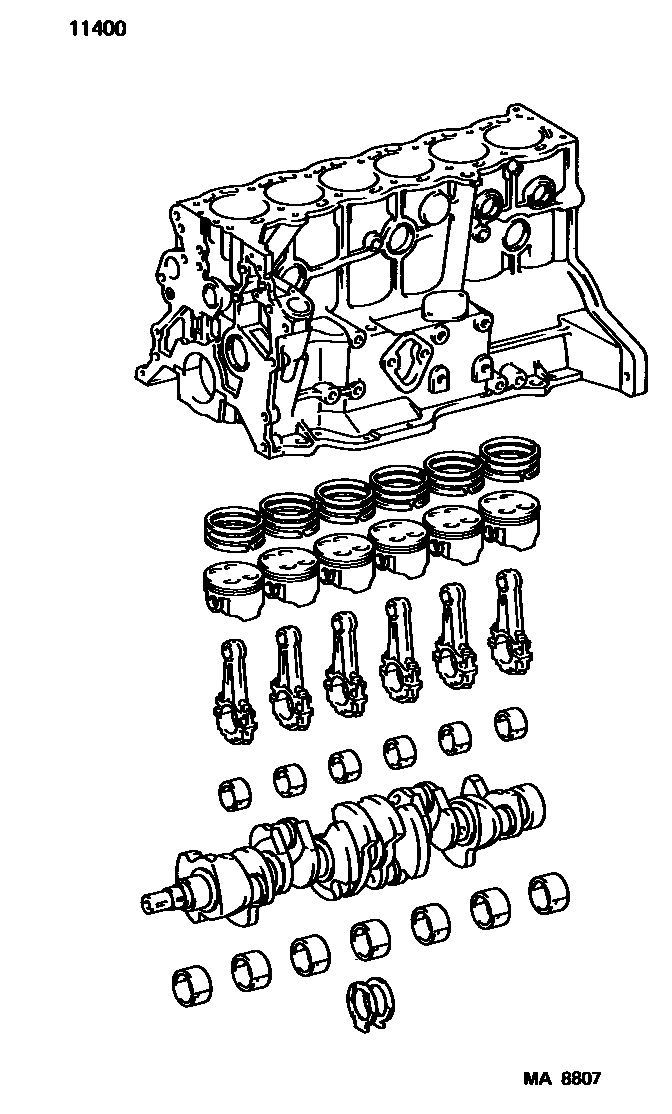

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-42080i198808-198903

main11400-42081i198903-198908

main11400-42090i198808-198903

main11400-42091i198903-198908

main11400-42100i198808-198903

main11400-42101i198903-198908

main11400-42102i198908-199305

main11400-42140i198908-199305

main11400-42150i198908-199305

1 parts on this diagram · 1 diagram in section
