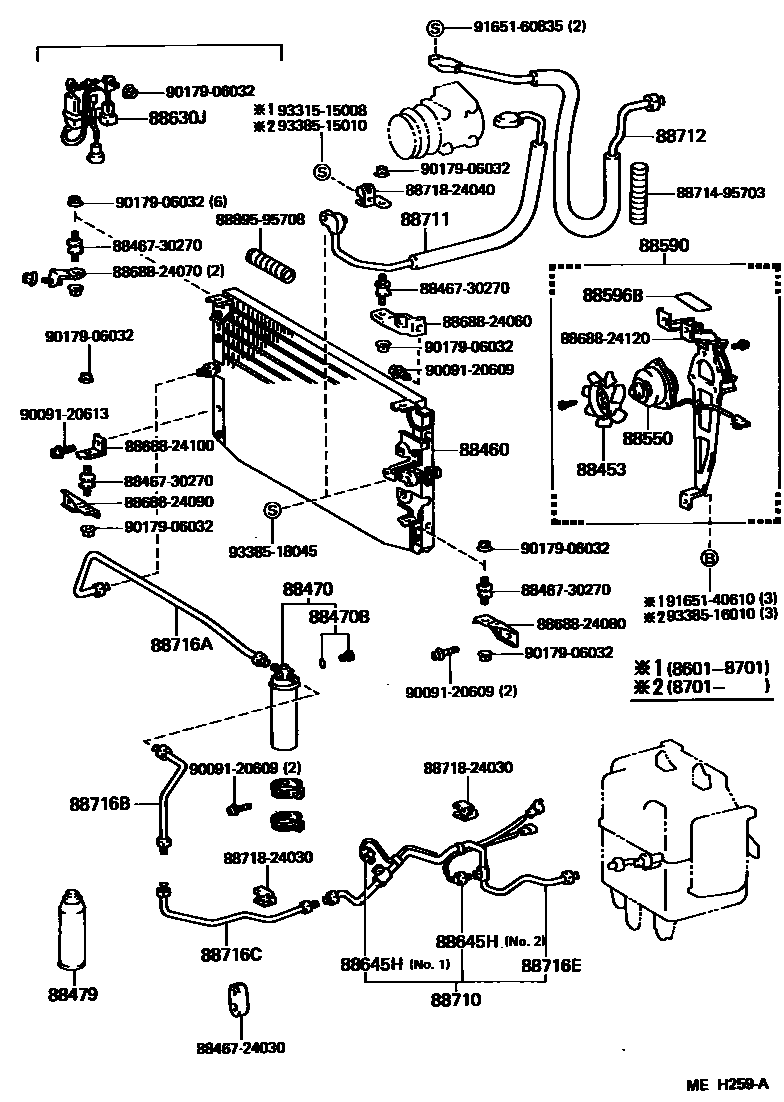

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-12040iMA70198601-198808

88460CONDENSER ASSY, COOLER

main88460-14250iMA70..LHD198601-198701

main88460-14251iMA70..LHD..TWC198701-198709

main88460-14252iMA70..LHD..TWC198709-198808

main88460-14262iMA70..TWT198709-198808

main88460-24040iMA70..RHD198601-198808

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iMA70198601-198808

88470BBOLT, FUSE

main88475-12020iMA70198601-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iMA70198601-198808

400G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-14030iMA70198601-198808

88590BLOWER ASSY, W/SHROUD

main88590-14010iMA70..TWC198601-198808

88596BPLATE, CAUTION, NO.1

main88596-24010iMA70198601-198808

88630JRELAY ASSY (FOR CONDENSER MOTOR)

main88630-24060iMA70..RHD..(ARL,GEN)198601-198808

DEALER OPTION

88645HSWITCH, PRESSURE NO.1

main88645-10020iMA70198601-198808

NO.2

main88645-14010iMA70..LHD198601-198808

NO.1

main88645-24020iMA70..ARL198601-198701

NO.1

main88645-24030iMA70..ARL198701-198808

NO.1

88710TUBE ASSY, AIR CONDITIONER

main88706-24030iMA70..ARL198601-198808

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24070iMA70198601-198808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-1B080iMA70..RHD..(EUR,GEN,SA)198601-198808

main88712-1B090iMA70..LHD198601-198808

main88712-1B100iMA70..ARL198601-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1B120iMA70..LHD198701-198703

main88716-1B121iMA70..LHD198703-198808

main88716-24080iMA70..RHD198701-198808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-1B070iMA70..LHD198601-198701

main88716-1B071iMA70..LHD198701-198709

main88716-1B073iMA70..LHD198709-198808

main88716-24090iMA70..RHD198601-198703

main88716-24091iMA70..RHD198703-198808

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-24120iMA70..ARL198601-198808

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1B080iMA70..LHD198601-198608

main88716-1B110iMA70..LHD198608-198701

main88716-1B111iMA70..LHD198701-198709

main88716-1B112iMA70..LHD198709-198808

main88716-24130iMA70..RHD..(EUR,GEN,SA)198601-198808

main88716-24170iMA70..ARL198601-198808

8846724030CUSHION, COOLER CONDENSER, NO.1

main88467-24030

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8868824060BRACKET, COOLER DIAPHRAGM

main88688-24060

8868824070BRACKET, COOLER DIAPHRAGM

main88688-24070

8868824080BRACKET, COOLER DIAPHRAGM

main88688-24080

8868824090BRACKET, COOLER DIAPHRAGM

main88688-24090

8868824100BRACKET, COOLER DIAPHRAGM

main88688-24100

8868824120BRACKET, COOLER DIAPHRAGM

main88688-24120

8871495703HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95703

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

8871824040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24040

8889595708HOLDER, FUSE

main88895-95708

9009120609

main90091-20609

9009120613

main90091-20613

9017906032

main90179-06032

9165140610

main91651-40610

9165160835

main91651-60835

9331515008

main93315-15008

9338515010

main93385-15010

9338516010

main93385-16010

9338518045

main93385-18045

38 parts on this diagram · 4 diagrams in section
