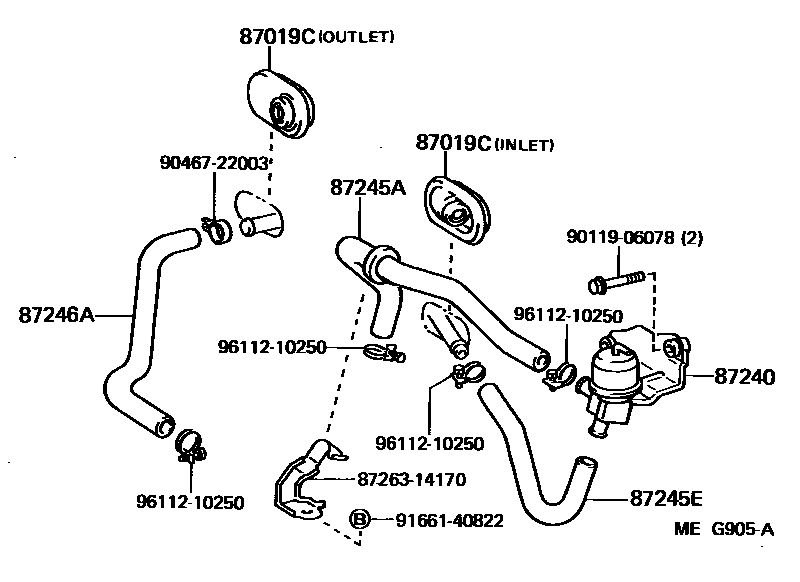

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01272iMA70198601-198808

INLET

main90480-01337iMA70..RHD198601-198808

OUTLET

main90480-31007iMA70..LHD198601-198808

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-14140iMA70..LHD198601-198808

main87240-24020iMA70..RHD198601-198808

87245AHOSE, HEATER WATER, INLET A

main87245-1B250iMA70..LHD198601-198608

main87245-1B251iMA70..LHD198608-198808

main87245-24180iMA70..RHD198601-198808

87245EHOSE, HEATER WATER, INLET E

main87245-1B220iMA70..LHD198601-198808

main87245-24130iMA70..RHD198601-198808

87246AHOSE, HEATER WATER, OUTLET A

main87245-1B260iMA70..LHD198601-198608

main87245-1B261iMA70..LHD198608-198708

main87245-1B262iMA70..LHD198708-198808

main87245-24190iMA70..RHD198601-198808

8726314170BRACKET, HEATER WATER PIPE, NO.1

main87263-14170

9011906078

main90119-06078

9046722003

main90467-22003

9166140822

main91661-40822

9611210250

main96112-10250

10 parts on this diagram · 2 diagrams in section
