HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

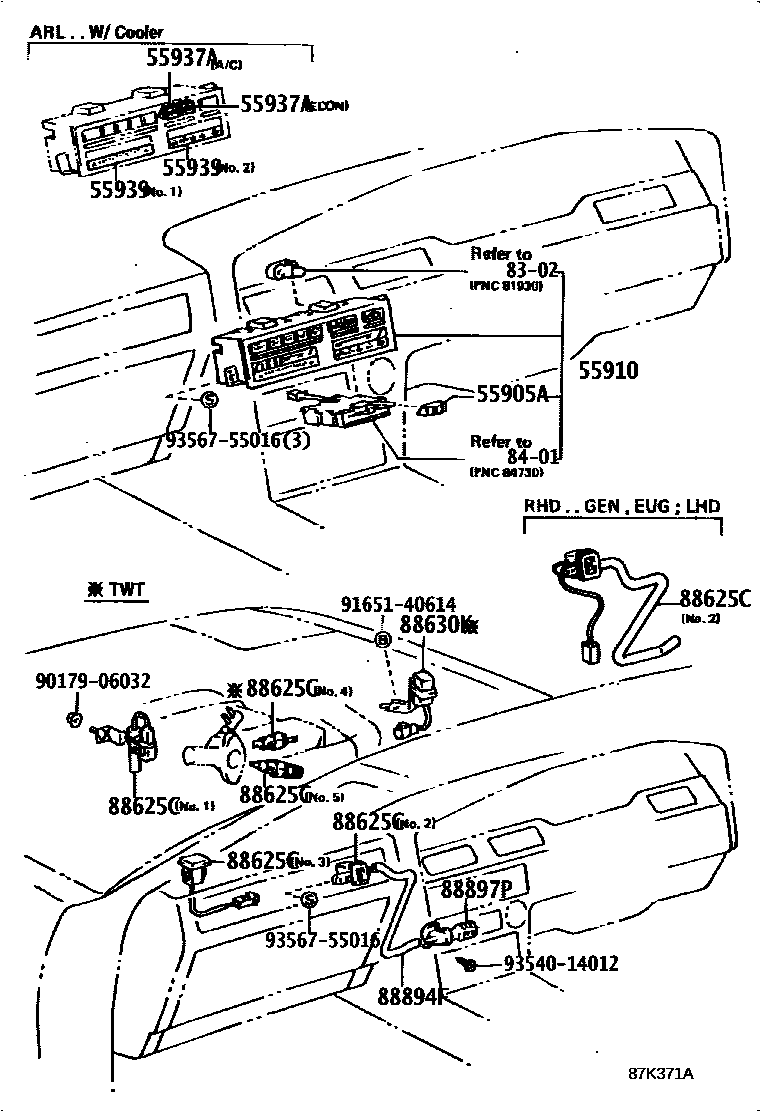

Parts diagram
55905AKNOB, HEATER CONTROL
main55905-14190i198601
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55900-14350i198601-198608
main55900-14351i198608-198708
main55900-14360i198601-198608
W/COOLER
main55900-14361i198608-198708
W/COOLER
main55900-14362i198708-198808
W/COOLER
main55900-14370i198601-198608
W/*AAC
main55900-14371i198608-198708
W/*AAC
main55900-14372i198708-198808
W/*AAC
main55900-14380i198601-198608
W/COOLER
main55900-14381i198608-198708
W/COOLER
main55900-14382i198708-198808
W/COOLER
main55900-14390i198601-198608
W/*AAC
main55900-14391i198608-198708
W/MANUAL AIR CONDITIONER
main55900-14392i198708-198808
W/*AAC
main55900-14400i198601-198608
main55900-14401i198608-198708
W/AUTO AIR CONDITIONER
main55900-14402i198708-198808
main55900-14430i198708-198808
55937AKNOB, COOLER CONTROL LEVER
main55905-14120i198601-198701
A/C SWITCH
main55905-14140i198601-198701
ECON SWICH
main55905-14150i198701-198808
A/C SWITCH
main55905-14160i198703-198808
ECON SWITCH
55939ORNAMENT, HEATER CONTROL
main81942-14080i198601-198701
NO.1
main81942-14090i198601-198701
NO.2
main81942-14100i198701-198808
NO.1
main81942-14110i198701-198808
NO.2
8302INDICATOR
→ Go to FIG 83-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
88625CTHERMISTOR, COOLER
main88625-14090i198601-198808
NO.2
main88625-20140i198601-198808
NO.3
main88790-14080i198601-198808
NO.2
main88790-14100i198601-198808
NO.2
main88790-24070i198601-198808
NO.1
main88790-24090i198708-198808
NO.5
main88790-24110i198708-198808
NO.4
88630KRELAY ASSY
main88630-14080i198708-198808
88894FHOSE, AIR
main88669-14010i198601-198808
88897PASPIRATOR
main88897-14010i198601-198808
9017906032
main90179-06032
9165140614
main91651-40614
9354014012
main93540-14012
9356755016
main93567-55016

14 parts on this diagram · 3 diagrams in section
