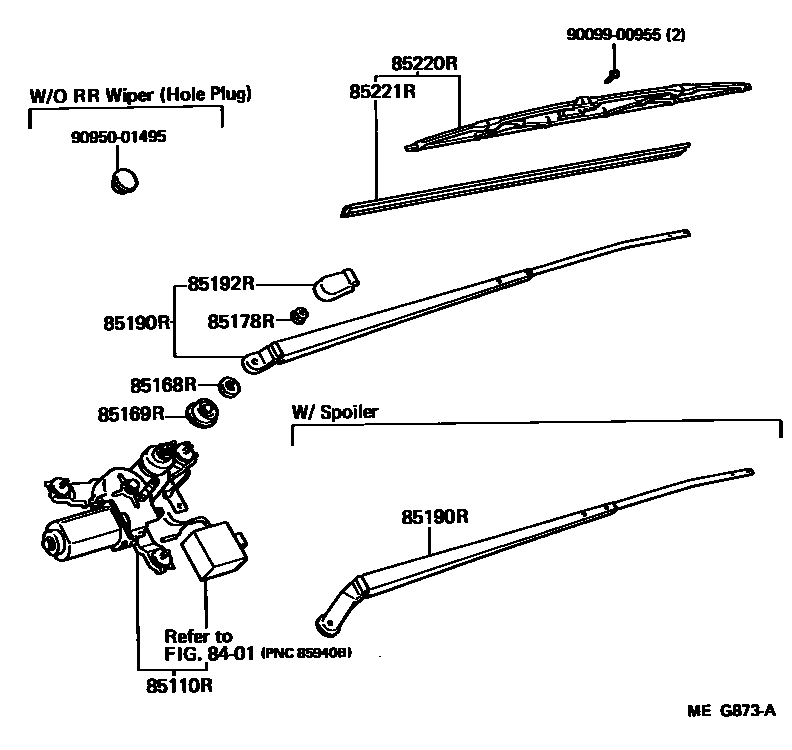

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110RMOTOR ASSY, REAR WIPER

main85110-14280iMA70198601-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iMA70198601-198808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-14290iMA70198601-198808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06019iMA70198601-198608

W/SPOILER

main90176-06024iMA70198608-198808

W/SPOILER

main90179-06158iMA70198601-198808

85190RARM ASSY, REAR WIPER

main85190-14660iMA70198601-198808

main85190-14670iMA70198601-198808

W/SPOILER

85192RCOVER, REAR WIPER ARM

main85192-32010iMA70198601-198808

W/O SPOILER

85220RBLADE ASSY, REAR WIPER

main85220-16440iMA70198601-198808

85221RBLADE, REAR WIPER

main85221-16080iMA70198601-198808

9009900955

main90099-00955

9095001495

main90950-01495

11 parts on this diagram · 1 diagram in section
