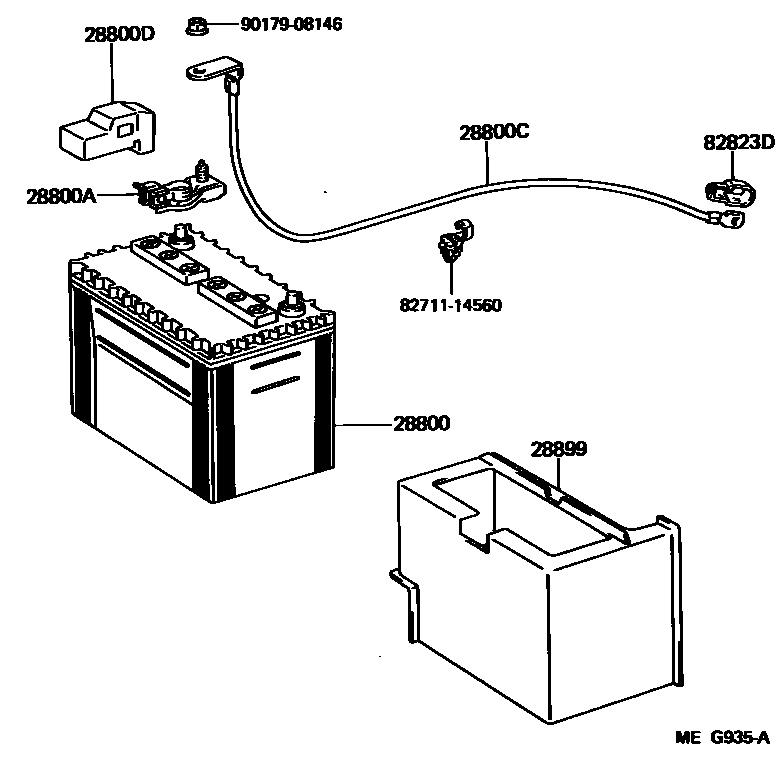

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i7MG#..MA70198601-198801

55D23L,55D23L-MF

main28800-42030i7MG#..MA70198801-198808

55D23L,55D23L-HY

main28800-45050i7MG#..MA70..LHD..EUR198601-198808

75D31L,75D31L-MF

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i7MGE..MA70198601-198610

main90982-05030i7MGE..MA70198610-198808

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-24140i7MG#..MA70198601-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i7MGE..MA70198601-198808

28899INSULATOR, BATTERY

main28899-42020i7MG#..MA70198601-198808

55D23L

main28899-42030i7MG#..MA70..LHD..EUR198601-198808

75D31L

82823DCAP, TERMINAL

main82823-20030iMA70198601-198808

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
