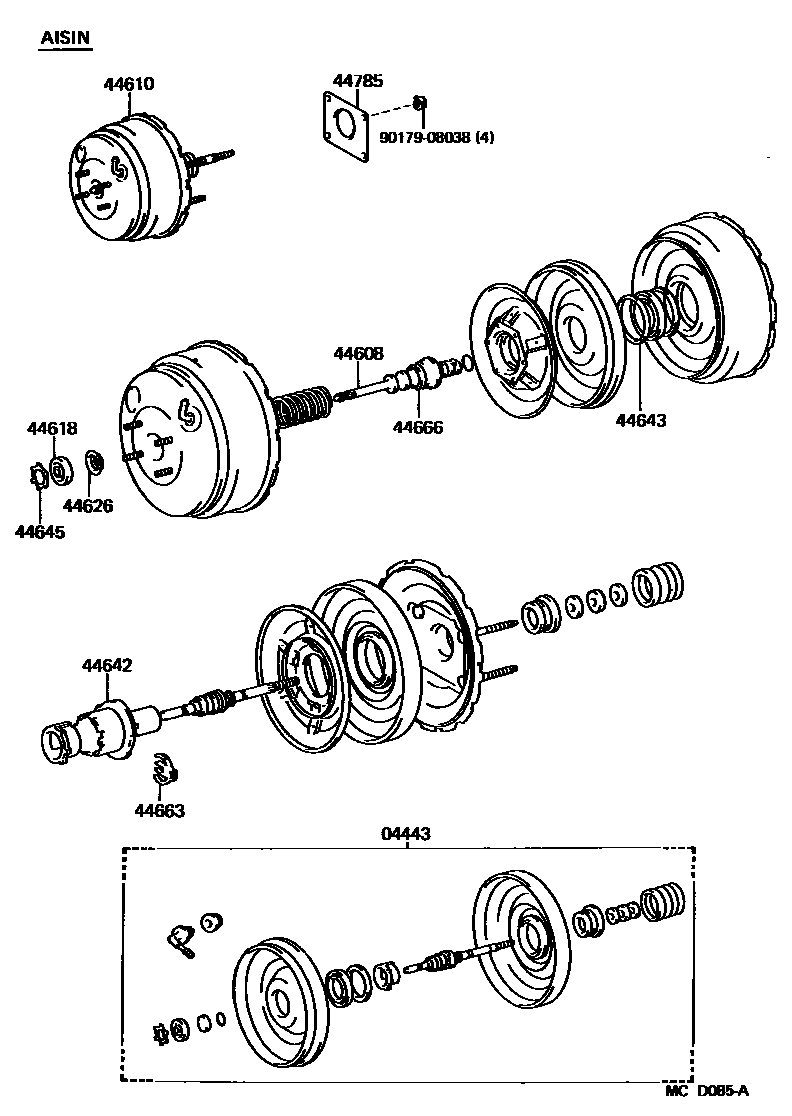

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-14510iMA70..RHD..(ARL,GEN,SA)198601-198808

main04443-14520iMA70..LHD..GEN198601-198808

main04443-14530iMA70..RHD..EUG198601-198808

main04443-14540iMA70..LHD..(EUR,GCC)198601-198808

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iMA70198601-198808

44610BOOSTER ASSY, BRAKE

main44610-14670iMA70..ARL,GEN,SA198601-198808

main44610-14690iMA70..EUR,GCC198601-198808

sub44610-14810

44618SEAL, BOOSTER BODY

main44621-14030iMA70198601-198808

44626RETAINER, BOOSTER ROD CUP

main44626-60010iMA70198601-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iMA70198601-198808

44643RETAINER, DIAPHRAGM

main44643-20800iMA70198601-198808

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMA70198601-198808

44663KEY, VALVE STOPPER

main44635-20800iMA70198601-198808

44666CASE, REACTION DISC

main44657-20800iMA70..ARL,GEN,SA198601-198808

main44657-22630iMA70..EUR,GCC198601-198808

44785GASKET, BRAKE BOOSTER

main44785-30020iMA70198601-198808

9017908038

main90179-08038

12 parts on this diagram · 2 diagrams in section
