V-BELT

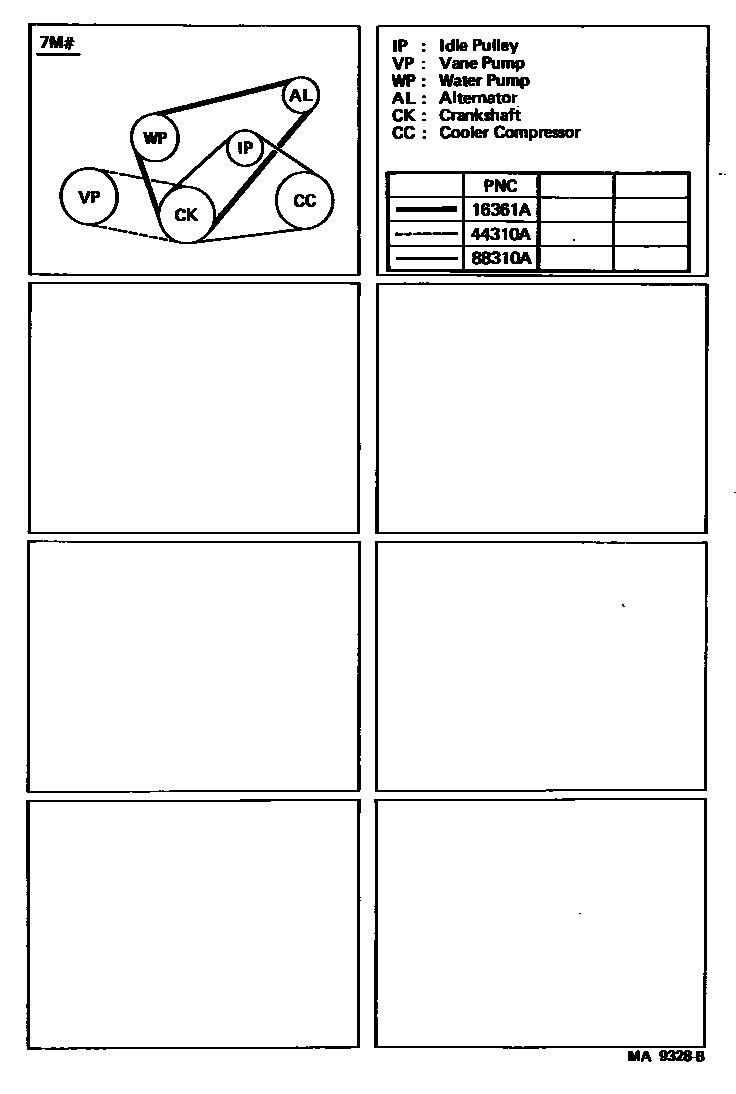

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-01290i198703-198808

main99365-01300i198601-198703

44310ABELT, V(FOR VANE PUMP)

main90916-02200i198710-198808

main90916-02202i198708-198808

main99364-00860i198601-198708

L=860

main99364-50840i198708-198710

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-00920i198601-198808

3 parts on this diagram · 1 diagram in section
