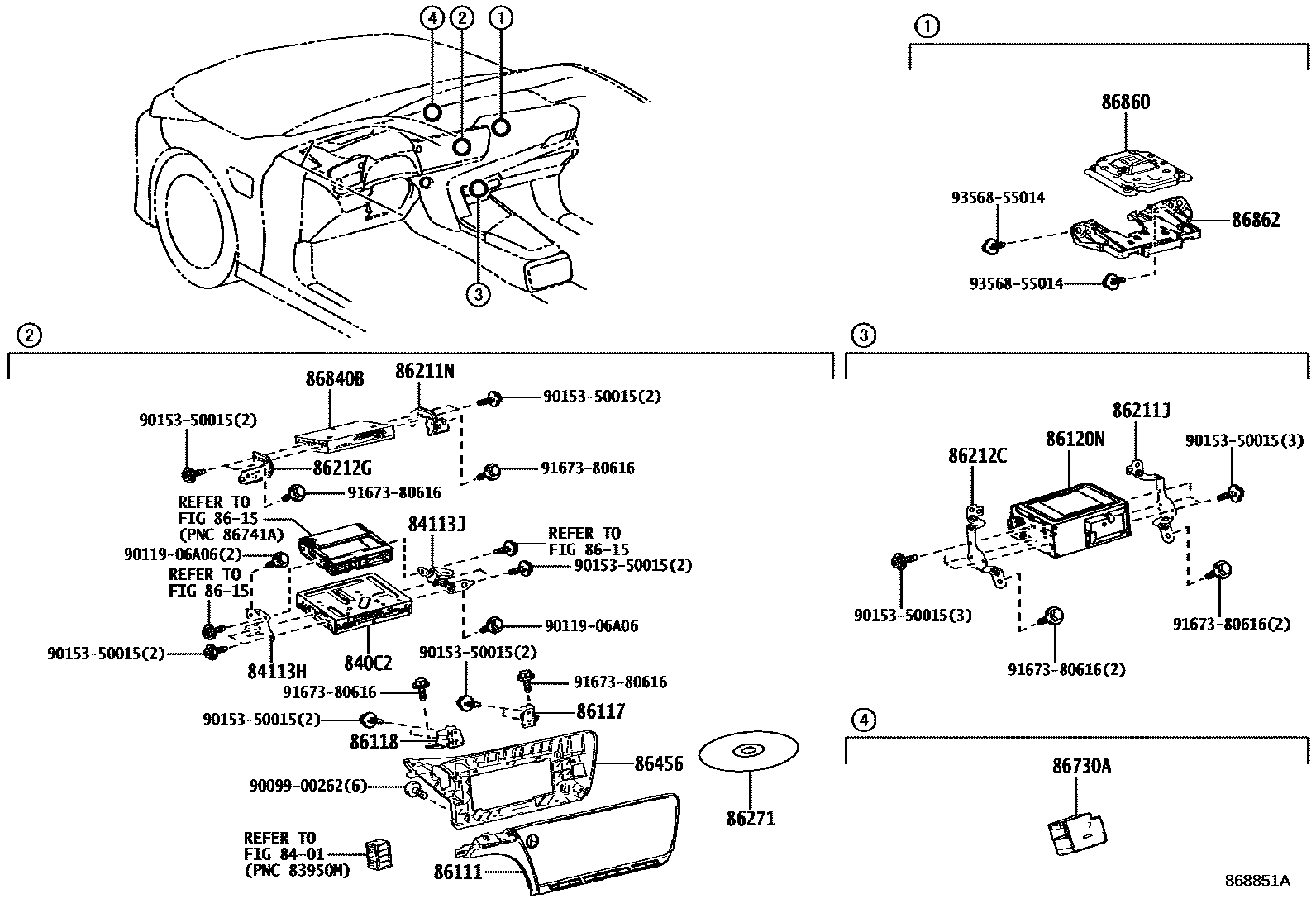

NAVIGATION & FRONT MONITOR DISPLAY

8401

840C2CONTROL SUB-ASSY, INTEGRATION

main840C2-62020iJPD20202108-202304

84113HBRACKET, INTEGRATION CONTROL, NO.1

main84113-62010iJPD20202108-202304

84113JBRACKET, INTEGRATION CONTROL, NO.2

main84113-62020iJPD20202108-202304

86111MULTI-DISPLAY

main86111-62120iJPD20202108-202304

DENSO

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-62020iJPD20202108-202304

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-62020iJPD20202108-202304

86120NRECEIVER ASSY, RADIO

main86120-62140iJPD20202108-202304

8615

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-62040iJPD20202108-202304

main86211-62090iJPD20202401-202411

86211NBRACKET, NAVIGATION COMPUTER, NO.1

main86211-62080iJPD20202108-202304

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-62040iJPD20202108-202304

main86212-62090iJPD20202401-202411

86212GBRACKET, NAVIGATION COMPUTER, NO.2

main86212-62080iJPD20202108-202304

86271DISC, DISC PLAYER

main86807-0W266iJPD20202108-202110

sub86807-0W267

main86807-0W268iJPD20202110-202304

86456COVER, MULTI-MEDIA MODULE

main86456-62020iJPD20202108-202304

86730AMICROPHONE ASSY, TELEPHONE

main86730-48110iJPD20202108-202304

main86730-78010×2iJPD20202401-202411

86840BCOMPUTER ASSY, NAVIGATION

main86840-62140iJPD20202108-202304

86860ANTENNA ASSY, NAVIGATION

main86880-42030iJPD20202411

main86880-52020iJPD20202212-202304

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iJPD20202108-202304

main86862-48060iJPD20202401-202411

MARK = DE

9009900262

main90099-00262

9011906A06

main90119-06A06

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

24 parts on this diagram · 1 diagram in section
