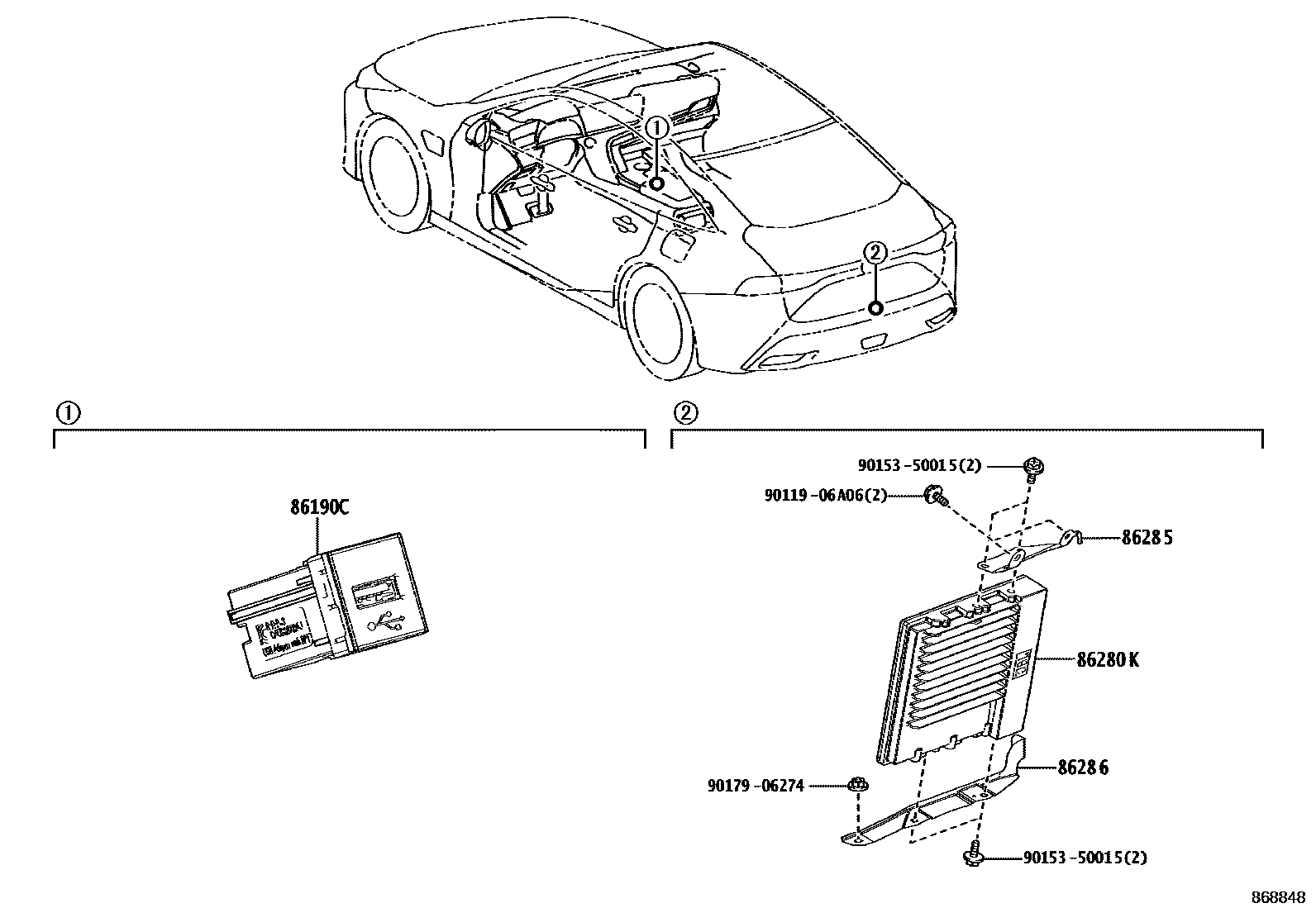

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AMPLIFIER 0002 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12061iJPD20202108-202304

main86190-12080iJPD20202401-202411

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-62040iJPD20202108-202304

main86280-62050iJPD20202401-202411

main86280-62090iJPD20202411

86285BRACKET, AMPLIFIER, NO.1

main86285-62030iJPD20202108-202304

main86285-62040iJPD20202411

86286BRACKET, AMPLIFIER, NO.2

main86286-62030iJPD20202401-202411

9011906A06

main90119-06A06

9015350015

main90153-50015

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
