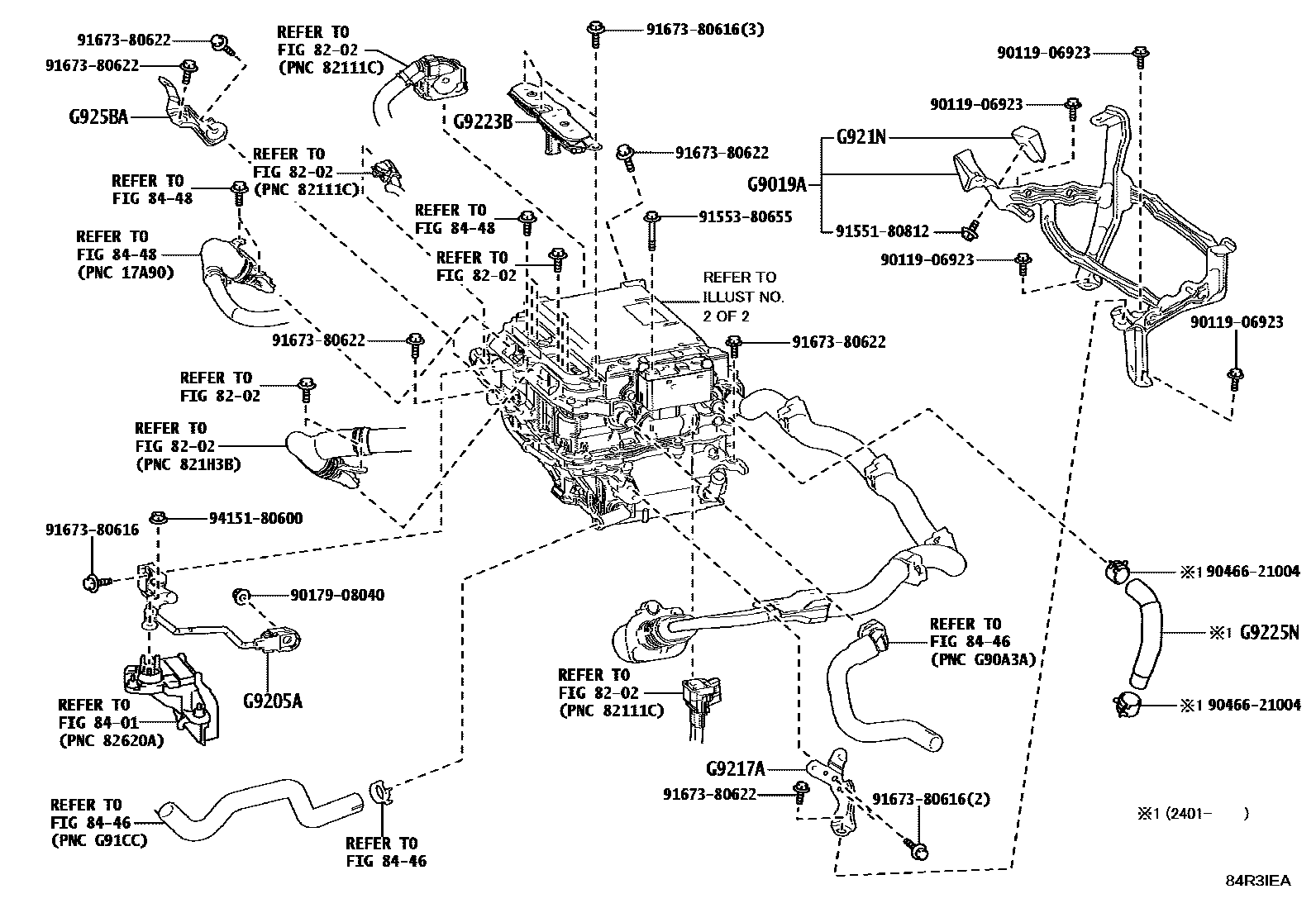

INVERTER(BEV OR FCEV)

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8446FCEV COOLING

→ Go to FIG 84-46

8448FCEV STACK & CONVERTER

→ Go to FIG 84-48

G9019ABRACKET SUB-ASSY, INVERTER TRAY

mainG901962020iJPD20202401-202411

G9205APLATE SUB-ASSY, INVERTER BUS-BAR

mainG920511010iJPD20202401-202411

G9217ABRACKET, INVERTER, NO.4

mainG921762020iJPD20202401-202411

G921NDAMPER, INVERTER BRACKET

mainG921N62020iJPD20202401-202411

G9223BCOVER, INVERTER TERMINAL

mainG922311010iJPD20202401-202411

G9225NHOSE, INVERTER COOLING, NO.1

mainG922530210iJPD20202401-202411

G925BABRACKET, INVERTER, NO.6

mainG925B11020iJPD20202401-202411

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155180812

main91551-80812

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section
