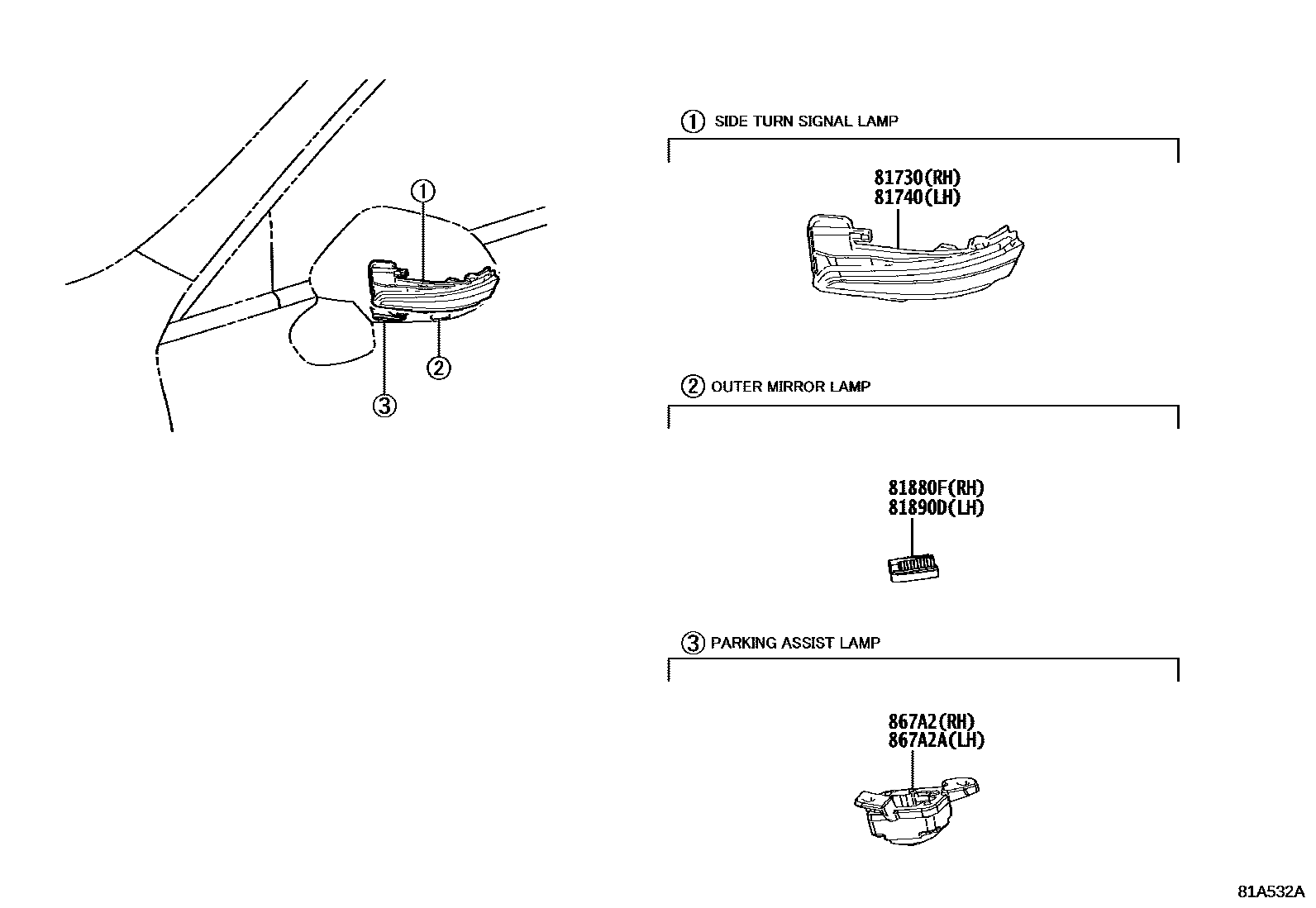

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-30172iJPD20202401-202411

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-30162iJPD20202401-202411

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-30060iJPD20202108-202304

main81880-62010iJPD20202411

81890DLAMP ASSY, OUTER MIRROR, LH

main81880-62010iJPD20202401-202411

main81890-30120iJPD20202108-202304

867A2LIGHT, PARKING ASSIST, RH

main867A2-60030iJPD20202401-202411

867A2ALIGHT, PARKING ASSIST, LH

main867A2-60040iJPD20202401-202411

6 parts on this diagram · 1 diagram in section
