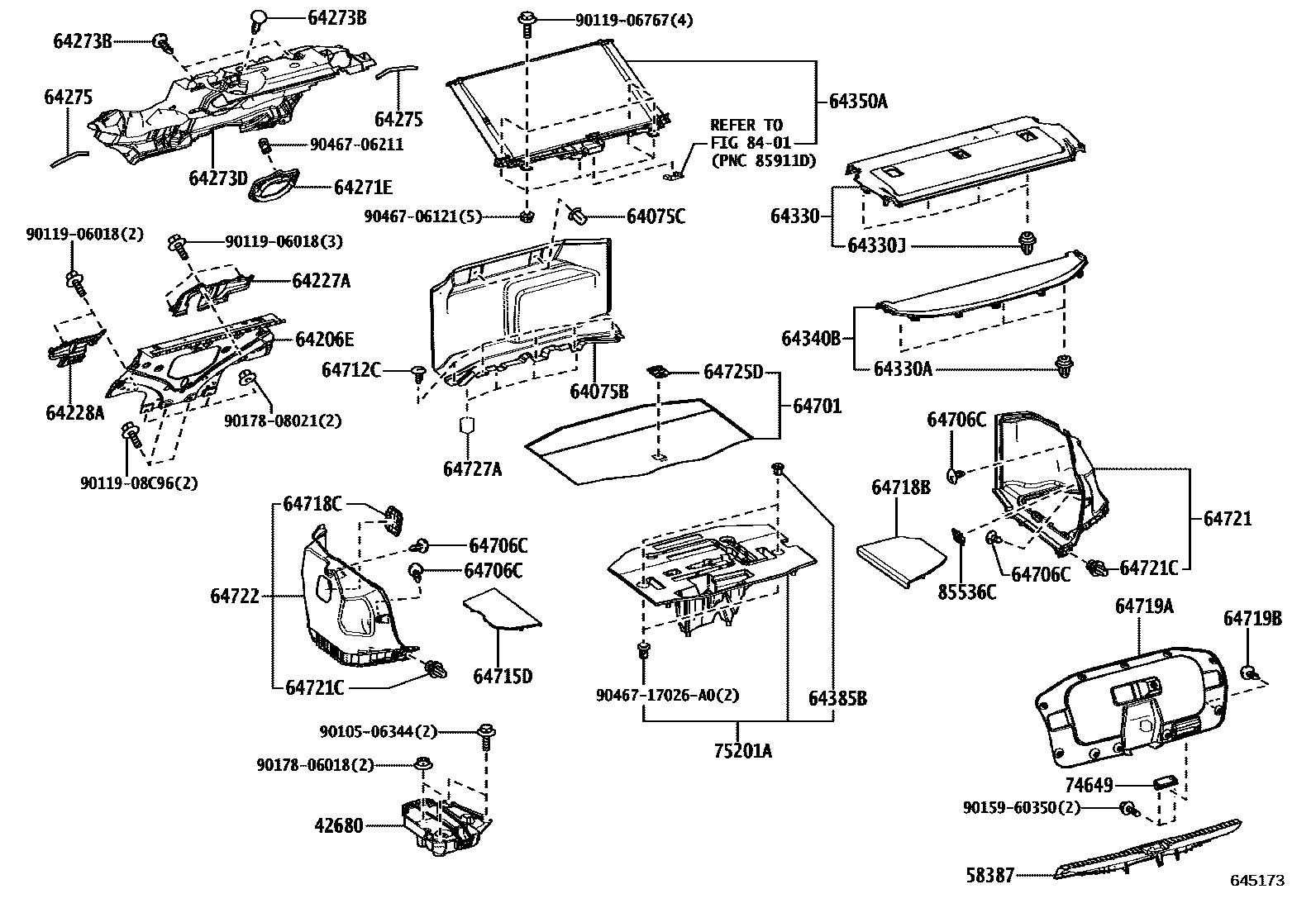

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
42680CASE ASSY, TIRE REPAIR KIT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
64206EPANEL SUB-ASSY, ROOM PARTITION
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
64271EPANEL, ROOM PARTITION
64273BCLIP
LT.GRAY
64273DPAD, ROOM PARTITION, NO.1
64275PAD, ROOM PARTITION TRIM, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
BLACK,TRIM2#
64350ASHADE ASSY, REAR WINDOW
64385BCLIP
BLACK
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM2#
64706CCLIP
BLACK,TRIM2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TRIM2#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM2#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM2#
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM2#
75201ABOX, TOOL
8401SWITCH & RELAY & COMPUTER
85536CBEZEL, POWER OUTLET SOCKET
BLACK,TRIM2#
9010506344
main90105-06344
9011906018
main90119-06018
9011906767
main90119-06767
9011908C96
main90119-08C96
9015960350
main90159-60350
9017806018
main90178-06018
9017808021
main90178-08021
9046706121
main90467-06121
9046706211
main90467-06211
9046717026A0
main90467-17026A0
44 parts on this diagram · 1 diagram in section
