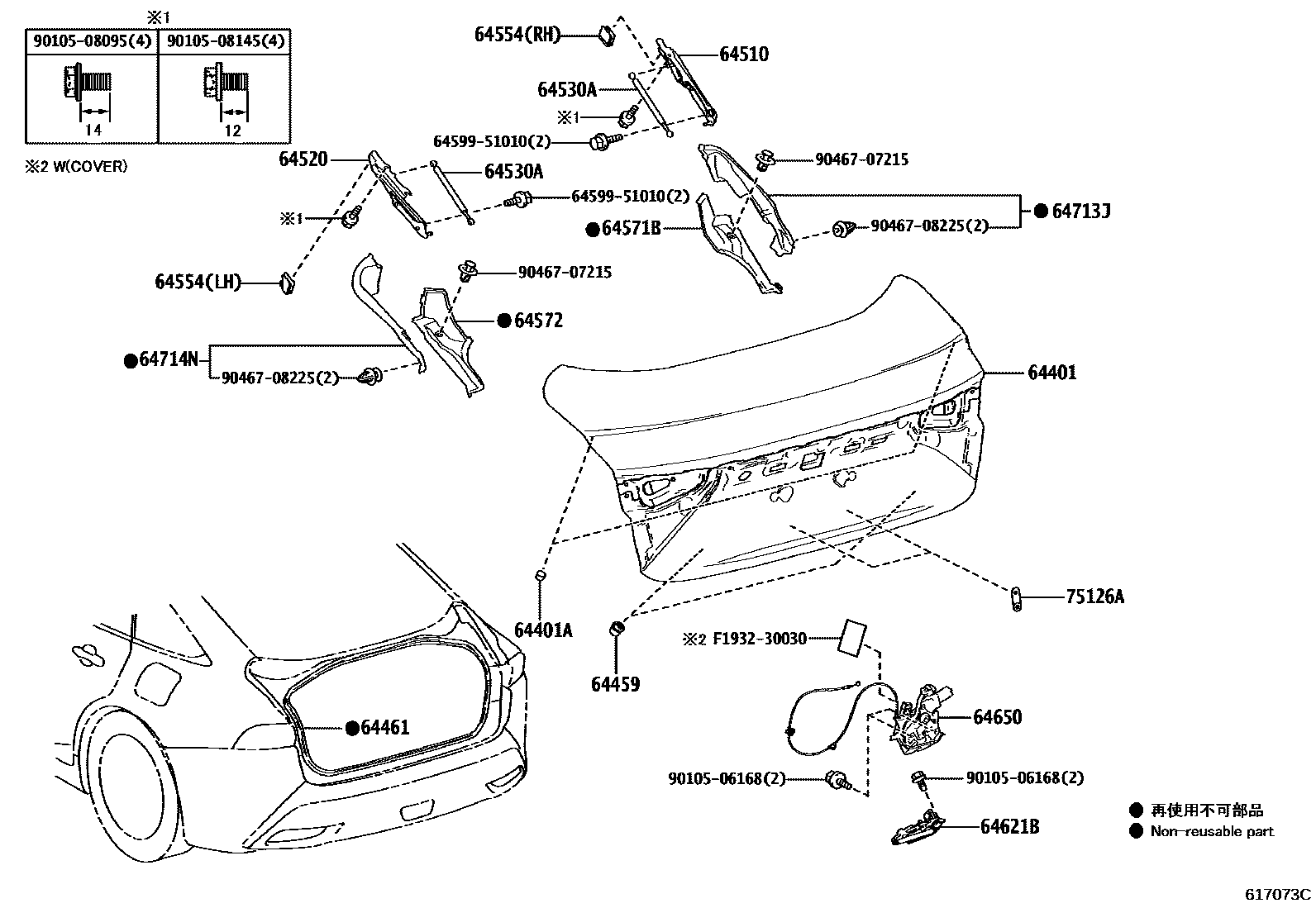

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-62070iJPD20202401-202411

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main53384-60050×2iJPD20202401-202411

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iJPD20202401-202411

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-62040iJPD20202401-202411

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-62040iJPD20202411

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-62040iJPD20202401-202411

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W270×2iJPD20202108-202304

main64530-0W290×2iJPD20202411

JIKOUSIKI

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30041iJPD20202401-202411

RH

main64554-30051iJPD20202401-202411

LH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-62020iJPD20202401-202411

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-62020iJPD20202401-202411

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30150iJPD20202401-202411

64650CLOSER ASSY, LUGGAGE DOOR

main64650-62010iJPD20202401-202411

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64712-62010iJPD20202401-202411

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64713-62040iJPD20202401-202411

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-78010×2iJPD20202401-202411

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

9010506168

main90105-06168

9010508095

main90105-08095

9010508145

main90105-08145

9046707215

main90467-07215

9046708225

main90467-08225

F193230030

mainF1932-30030

22 parts on this diagram · 1 diagram in section
