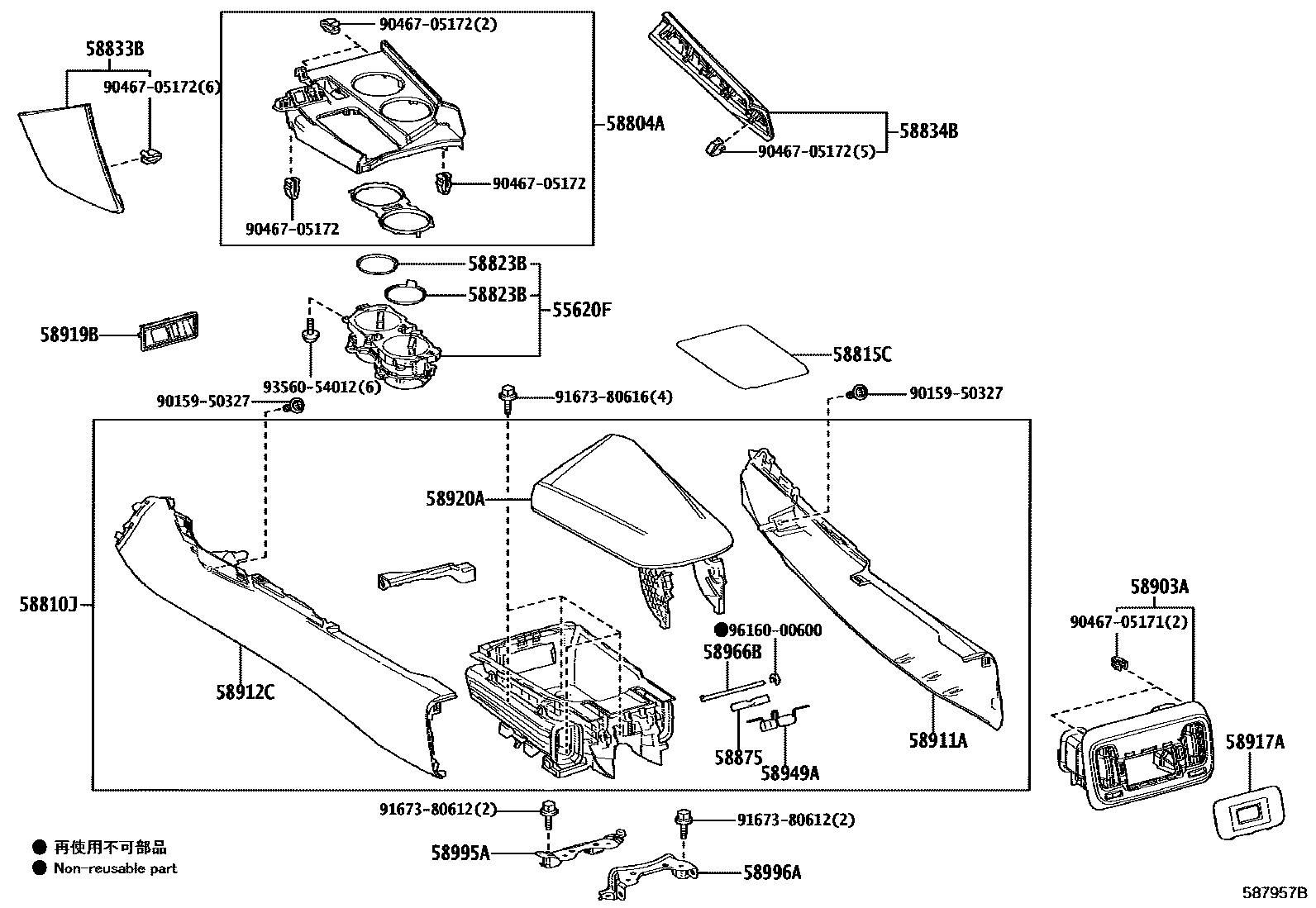

CONSOLE BOX & BRACKET
55620FHOLDER ASSY, CONSOLE BOX CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
BLACK/IVORY,TRIM2#
58815CCARPET, CONSOLE BOX
58823BBOX, CONSOLE COMPARTMENT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK/IVORY,TRIM2#
58875SPACER, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#
58917ACOVER, CONSOLE BOX, REAR
58919BPLATE, CONSOLE BOX
58920AARMREST ASSY, REAR CONSOLE
BLACK/IVORY,TRIM2#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9015950327
main90159-50327
9046705171
main90467-05171
9046705172
main90467-05172
9167380612
main91673-80612
9167380616
main91673-80616
9356054012
main93560-54012
9616000600
main96160-00600
25 parts on this diagram · 1 diagram in section
